ACT – XTSD XT/Perf Street Rigid
SKU: HC5-XTSD
ACT – XTSD XT/Perf Street Rigid
HC5-XTSD – XT/Perf Street RigidHC5-XTSD kit features an Xtreme pressure plate for the most demanding driver. Feel:Moderate to heavy pedal effort, smooth positive engagement, increased gear rattle Life:Longer clutch life achieved through ACT’s exclusive diaphragm design, rigid design may increase spline wear Quality:Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces Recommendation:Recommended for street and race use Difference:100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
|
||||||||||||||||||||||
Additional InformationXT/Perf Street Rigid for Honda Accord, Honda CRX Del Sol, Honda Civic |
|||||||||||||||||||||||
Fitments
|
|||||||||||||||||||||||
 |
|||||||||||||||||||||||
Price:
€738.00€600.00 Inc VATExcl VAT
€738.00€600.00 Inc VATExcl VAT
Available on backorder
Description
ACT – XTSD XT/Perf Street Rigid
HC5-XTSD – XT/Perf Street RigidHC5-XTSD kit features an Xtreme pressure plate for the most demanding driver. Feel:Moderate to heavy pedal effort, smooth positive engagement, increased gear rattle Life:Longer clutch life achieved through ACT’s exclusive diaphragm design, rigid design may increase spline wear Quality:Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces Recommendation:Recommended for street and race use Difference:100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
|
||||||||||||||||||||||
Additional InformationXT/Perf Street Rigid for Honda Accord, Honda CRX Del Sol, Honda Civic |
|||||||||||||||||||||||
Fitments
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
Additional information
| Show Universal Products? |
|---|
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
-
Description
Description
ACT – XTSD XT/Perf Street Rigid
HC5-XTSD – XT/Perf Street Rigid

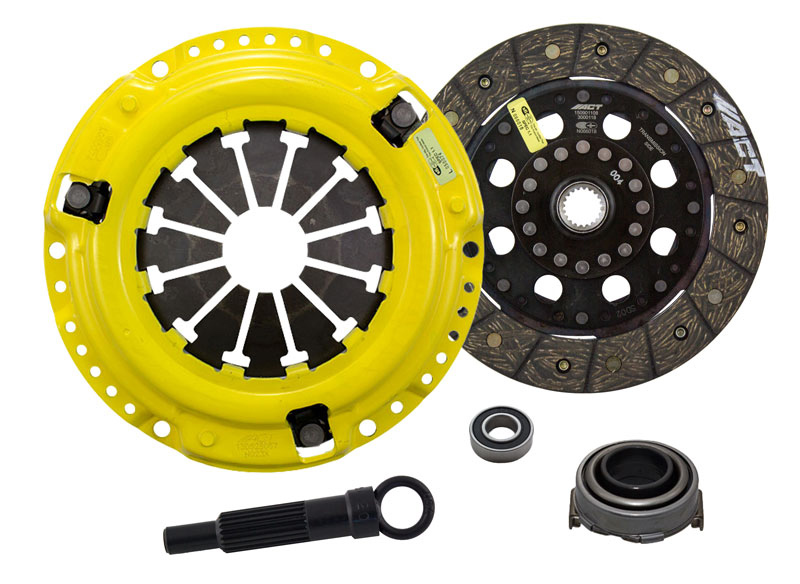

HC5-XTSD kit features an Xtreme pressure plate for the most demanding driver.
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.
ACT pressure plates have precision cover stampings to provide rigidity and consistency.
The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability.
The chrome-moly hub is heat-treated for strength and durability.
Rivet design and materials are carefully selected for maximum strength.
These discs are the minimum weight street disc for faster shifts.
ACT’s Street rigid-hub discs provide race-proven performance with street manageability.Feel:
Moderate to heavy pedal effort, smooth positive engagement, increased gear rattle
Life:
Longer clutch life achieved through ACT’s exclusive diaphragm design, rigid design may increase spline wear
Quality:
Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces
Recommendation:
Recommended for street and race use
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
Manufacturer ACT Sku Manufacturer HC5-XTSD Clutch Disc diameter (mm) 212 Clutch Disc Type Street disc (Organic) Pressure Plate Type Xtreme Spline Count 20 Spline Size (Inches) 7/8 Torque Capacity (Nm) 400 Torque Capacity (ft/lbs.) 295 Torque Capacity Over OE 82% Additional Information
XT/Perf Street Rigid for Honda Accord, Honda CRX Del Sol, Honda Civic
Fitments
- Honda Civic 1996-1998 1.6L L4 1590cc iLS/iSR (D16Y7/D16Y8)
- Honda Civic 1998-2000 1.5L L4 1493cc VTEC-E (D15Z6) (Several clutches available check your original clutch spec before ordering)
- Honda Civic 2001-2005 1.6L L4 1590cc (D16V1)
- Honda CRX Del Sol 1992-1998 1.5L L4 1493cc
- Honda CRX Del Sol 1992-1998 1.6L L4 1590cc ESi (D16Z6/D16Y8) (212mm upgrade, Must be used with 90-01 SOHC flywheel)
- Honda Civic 2001-2005 1.7L L4 1668cc i ES/i LS (D17A8/D17A9)
- Honda Civic 1998-2000 1.4L L4 1396cc (D14A3/D14A4/D14Z2) (Several clutches available check your original clutch spec before ordering)
- Honda Civic 1992-1996 1.5L L4 1493cc DXi/LSi/VEi (D15B2/D15B7/D15Z1)
- Honda Civic 1992-1996 1.6L L4 1590cc ESi (D16Z6/D16Z9)
- Honda Civic 1998-2000 1.6L L4 1590cc iLS/iSR (D16Y7/D16Y8)
- Honda Civic 2001-2005 1.4L L4 1.396cc (D14Z6)
- Honda Civic 1996-1998 1.4L L4 1396cc (D14A3/D14A4/D14Z2)
- Honda Civic 1996-1998 1.5L L4 1493cc VTEC-E (D15Z6) (Several clutches available check your original clutch spec before ordering)
- Honda Accord 1998-2003 1.6L L4 1590cc (D16B6)
-
