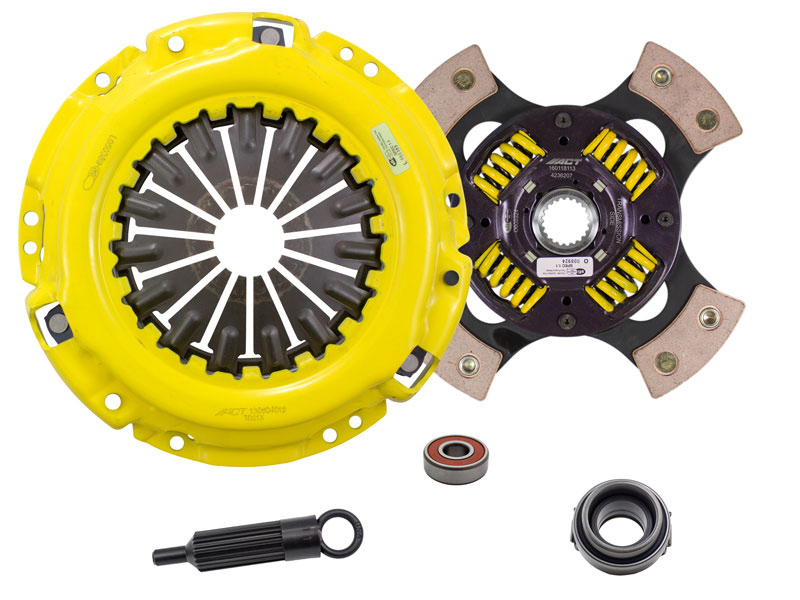

ACT – XTG4 XT/Race Sprung 4 Pad

TS3-XTG4 – XT/Race Sprung 4 Pad

TS3-XTG4 kit features an Xtreme pressure plate for the most demanding driver.
ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.
ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions.
ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.
With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster.
ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Feel:

Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT’s exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
