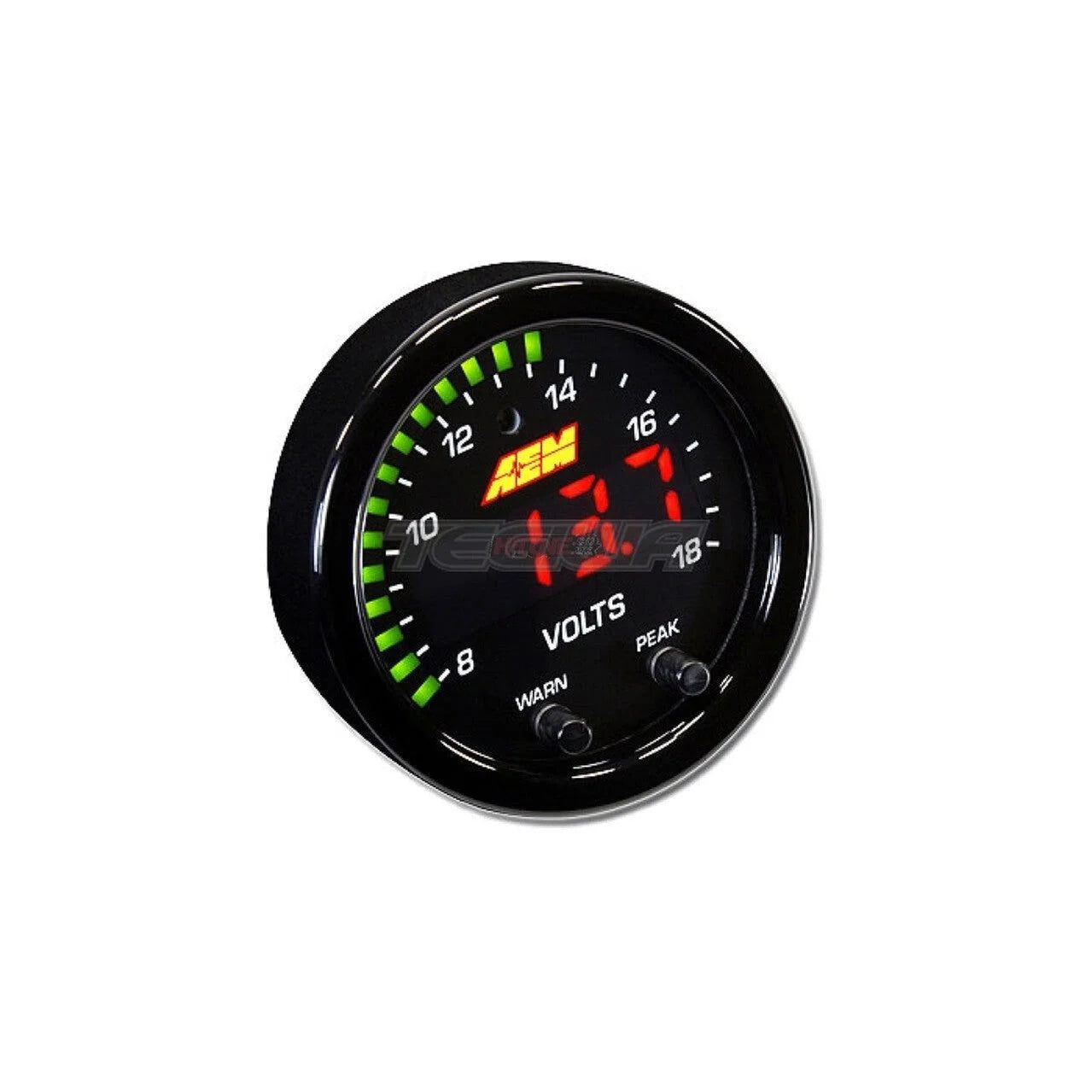

AEM – X-Series Volt Gauge 8~18V Black Bezel and Black Faceplate
SKU: AEM-30-0303
AEM – X-Series Volt Gauge 8~18V Black Bezel and Black Faceplate
Description:
AEM X-Series Volt Gauge 8~18V. Black Bezel & Black Faceplate
AEM’s 30-0303 X-Series Digital Voltmeter gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly a accurate voltage readout in their high performance vehicle.
NOTE: The 30-0303 comes with a black bezel and black 8-18 Volts faceplate. You will need to purchase the optional 30-0303-ACC accessory kit to get the silver bezel and white Volts faceplate.
EASIER TO READ
Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED “needle†lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
EASIER TO MOUNT
Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825â€, with a cup depth of only 0.200.†This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
SMARTER INTERFACE
X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall on the Volts gauge. All X-Series gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Slim 0.825†overall gauge depth and 0.200†cup depth – mount them virtually anywhere!
- Programmable LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to system voltage
- Peak/Recall via gauge face buttons
- Optional silver bezel with white faceplate accessory kit available (sold separately)
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- Auto dimming sensor delivers ideal display brightness
- Positive locking connectors provide secure connection
Skunk2
Founded in 1994, Group-A Engineering has established itself as leader in providing solutions and developing class leading racing and performance products for the automotive and powersports aftermarket.
As we believe that ‘Racing Improves the Breed’, Group-A Engineering has worked and continues to work closely with numerous Tier1 Motorsports and R&D groups. Our products, as well as our direct and indirect participation in professional motorsports has led to numerous wins and championships in NHRA, SCCA Pro, IMSA, FIA, as well as records in Hillclimbing and Landspeed Racing to name a few.
Group-A Engineering is headquartered in a 36,000 sq ft state of the art development and testing facility located in Norco, California. The knowledge and experience gained from motorsports combined with innovative product design, an extensive understanding of manufacturing processes, materials, computer aided engineering and supply chain management is what allows us to deliver the highest possible customer value in terms of price, quality, and performance. Additionally our ethos demands that our work and our products are backed by industry leading warranty and customer
Price:
€245.00€199.19 Inc VATExcl VAT
€245.00€199.19 Inc VATExcl VAT
Delivery time 4+ weeks
