AEM – Vehicle Dynamics Module 10Hz GPS W/ Ip67-Rated Antenna
SKU: AEM-30-2206
AEM – Vehicle Dynamics Module 10Hz GPS W/ Ip67-Rated Antenna
Description:

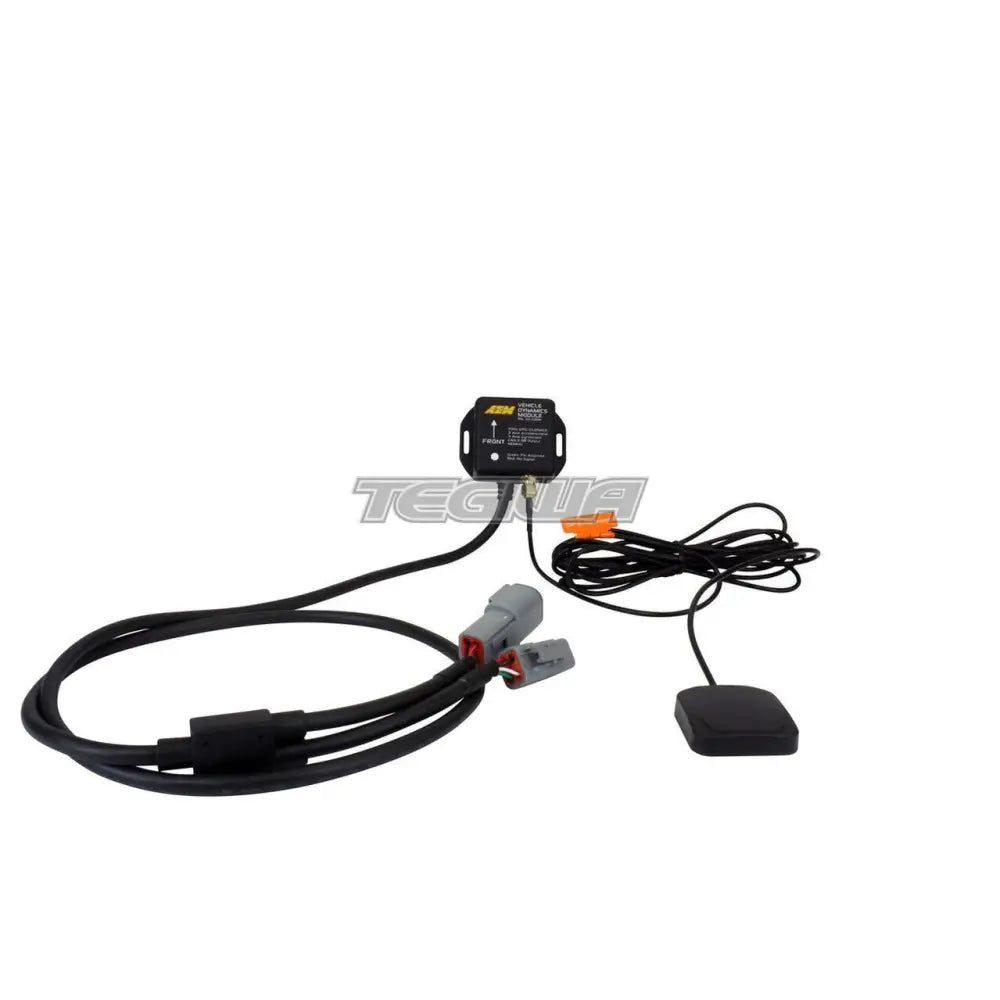

AEM Vehicle Dynamics Module, 10HZ GPS w/ IP67-Rated Antenna, 3-Axis Accelerometer, 3-Axis Gyrometer, AEMnet CAN bus Connector
The AEM Vehicle Dynamics Module (VDM) is an AEMnet CANbus enabled device with an on-board 50Hz 3-axis accelerometer, 50 Hz 3-axis gyrometer and fast, highly accurate 20Hz GPS + GLONASS that provides pinpoint position accuracy. The VDM’s GPS + GLONASS deliver vehicle speed, position, heading and altitude, enabling you to create track maps using AEMdata’s track mapping software, while the accelerometer and gyrometer provide critical data for chassis tuning thanks to their fast, 50Hz sampling rate. There has never been a more affordable way to capture highly accurate position data for track mapping!
Installation is simple and virtually no set up is required. It is powered by the AEMnet connection, so you simply mount the weather resistant-module in the correct orientation at the correct angle and connect it to the AEMnet adapter. Data from the VDM does not require configuration; It is recognized by the Infinity (software v96.2 or newer) or AQ-1 (software 4.01.7 or newer) and the channels are added to the data logs. The GPS + GLONASS antenna is IP67 rated (completely dustproof, waterproof to 1m) for mounting on the outside of the vehicle.
- Simply install it in the correct position, connect to AEMnet and the data streams through AEMnet CANbus!
- Ideal for road racers who want to use the gyrometer data for suspension adjustments
- Perfect for drag racers who want to see and log G-loads
- View vehicle speed, latitude longitude, altitude, course and satellite count
- GPS latitude & longitude delivers AEMdata track map functionality via AEMnet CANbus
- Add GPS, lateral G, altitude, pitch, roll and yaw data to data logs for analysis and lap comparisons
- View lap times on CD-7 Digital Dash
- Can be used to drive an odometer feature
- 50Hz Accelerometer and 50Hz gyroscope supply all 3-axis acceleration, pitch, roll and yaw data for chassis tuning
- 20Hz GPS + GLONASS Receiver
- UTC date and time
- Status LED indicates power & GPS signal
- Weather resistant enclosure with IP67 rated GPS/GLONASS antenna
- AEMnet CAN Extension Cables available for extra length (sold separately)
Skunk2
Founded in 1994, Group-A Engineering has established itself as leader in providing solutions and developing class leading racing and performance products for the automotive and powersports aftermarket.
As we believe that ‘Racing Improves the Breed’, Group-A Engineering has worked and continues to work closely with numerous Tier1 Motorsports and R&D groups. Our products, as well as our direct and indirect participation in professional motorsports has led to numerous wins and championships in NHRA, SCCA Pro, IMSA, FIA, as well as records in Hillclimbing and Landspeed Racing to name a few.
Group-A Engineering is headquartered in a 36,000 sq ft state of the art development and testing facility located in Norco, California. The knowledge and experience gained from motorsports combined with innovative product design, an extensive understanding of manufacturing processes, materials, computer aided engineering and supply chain management is what allows us to deliver the highest possible customer value in terms of price, quality, and performance. Additionally our ethos demands that our work and our products are backed by industry leading warranty and customer
Price:
€714.00€580.49 Inc VATExcl VAT
€714.00€580.49 Inc VATExcl VAT
Delivery time 4+ weeks
