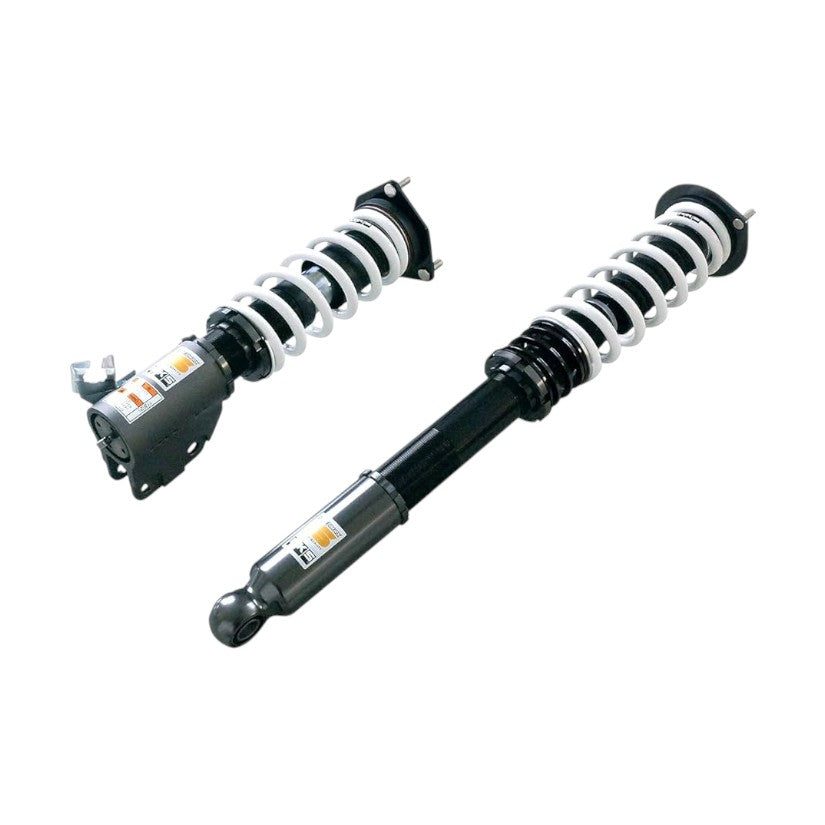

HKS – Hipermax S Coilovers Nissan Silvia S15 99-02

Hipermax S is built around driving comfort in the fullest sense — not just ride quality, but the confidence that comes from predictable handling. The setup is deliberately supple, letting the suspension track the road surface and cut unnecessary body movement for a better ride on the street.

Under harder driving the car’s movements are easy to read as load shifts, and abrupt behaviour at the limit is suppressed, making it a sound choice for drivers developing their sports driving. HKS have set the rear towards a mild understeer balance given the Silvia’s rear wheel drive layout; tightening the rear dial brings the car towards oversteer.

Revised internal components give a wide adjustment range across the dial and support a three year, 60,000km durability rating. Insulator springs front and rear make ride height adjustment straightforward.

Key Features

• 30 step damping adjustment, front and rear
• Height adjustable lower brackets, front and rear
• Inverted front damper, conventional rear
• Rubber upper mounts
• Remote wire damping adjustment, rear
• Rear helper spring, 19.8 N/mm
• Three year, 60,000km durability rating

Specifications

Damping force measured at a piston speed of 0.1m/sec.

Ride Height

Measured against standard, from road surface to fender arch. Actual figures vary between cars.

Please Note

• The front arm locks when the front case length drops below 212mm
• The lowest settings within the adjustable range may not be road legal, and contact between the body, arms and other components is possible
• Damper oil leakage or other faults caused by running below the factory ride height setting will void the warranty

Compatible With

• Nissan Silvia S15 (January 1999 – August 2002) – SR20DE
