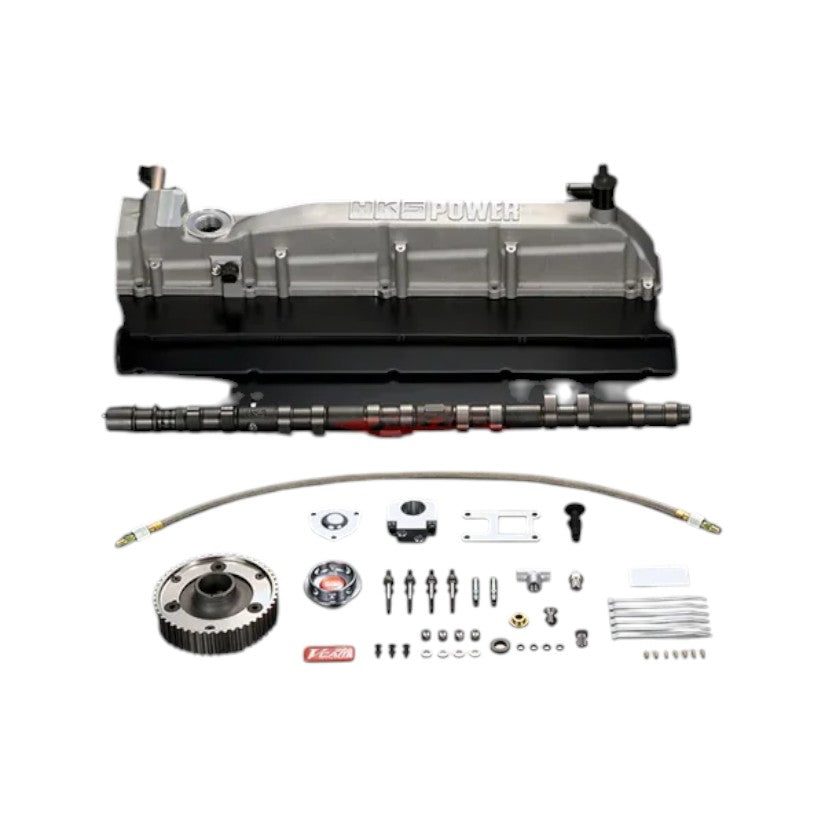

HKS – RB26 V Cam System Step 1 Without Valcon

HKS V Cam System Step 1 (Without Valcon) – Nissan Skyline GT-R RB26DETT

Step 1 of the HKS V Cam System brings continuously variable intake valve timing to the RB26DETT. The intake camshaft runs 248 degrees duration with 8.6mm of lift, and timing can be varied across a 90 to 120 degree range under electronic control. The kit includes an electromagnetic oil control valve, a high precision cam angle sensor, an HKS oil filler cap and the necessary small parts, with an unpainted intake valve cover.

Maximum engine speed for Step 1 is 8,000rpm, matching the standard rev limiter.

Key Features

• Continuously variable intake valve timing across a 90 to 120 degree range
• Intake camshaft: 248 degrees duration, 8.6mm lift
• Electromagnetic oil control valve
• High precision cam angle sensor
• HKS oil filler cap
• Unpainted intake valve cover
• Maximum engine speed of 8,000rpm

Required Separately

• Exhaust camshaft, chosen to suit the turbocharger. HKS recommend 256 degrees with the GT-SS and 264 degrees with the GT2530
• Vehicle specific F-CON harness

Please Note

• Valve to piston clearance may be insufficient when the V Cam System is used with a thin head gasket or a modified cylinder head
• Oil pressure cannot be held at a safe operating pressure with low viscosity oil, which may prevent valve timing from reaching the target figures
• The camshaft will not advance below a water temperature of 20 degrees Celsius
• Recommended engine oil: HKS Super Oil (RB) or Racing Oil 10W-50
• Timing belt tension and wear must be checked every 10,000km

Compatible With

• Nissan Skyline GT-R BNR32 (August 1989 – December 1994) – RB26DETT
• Nissan Skyline GT-R BCNR33 (January 1995 – May 1998) – RB26DETT
• Nissan Skyline GT-R BNR34 (January 1999 – August 2002) – RB26DETT
