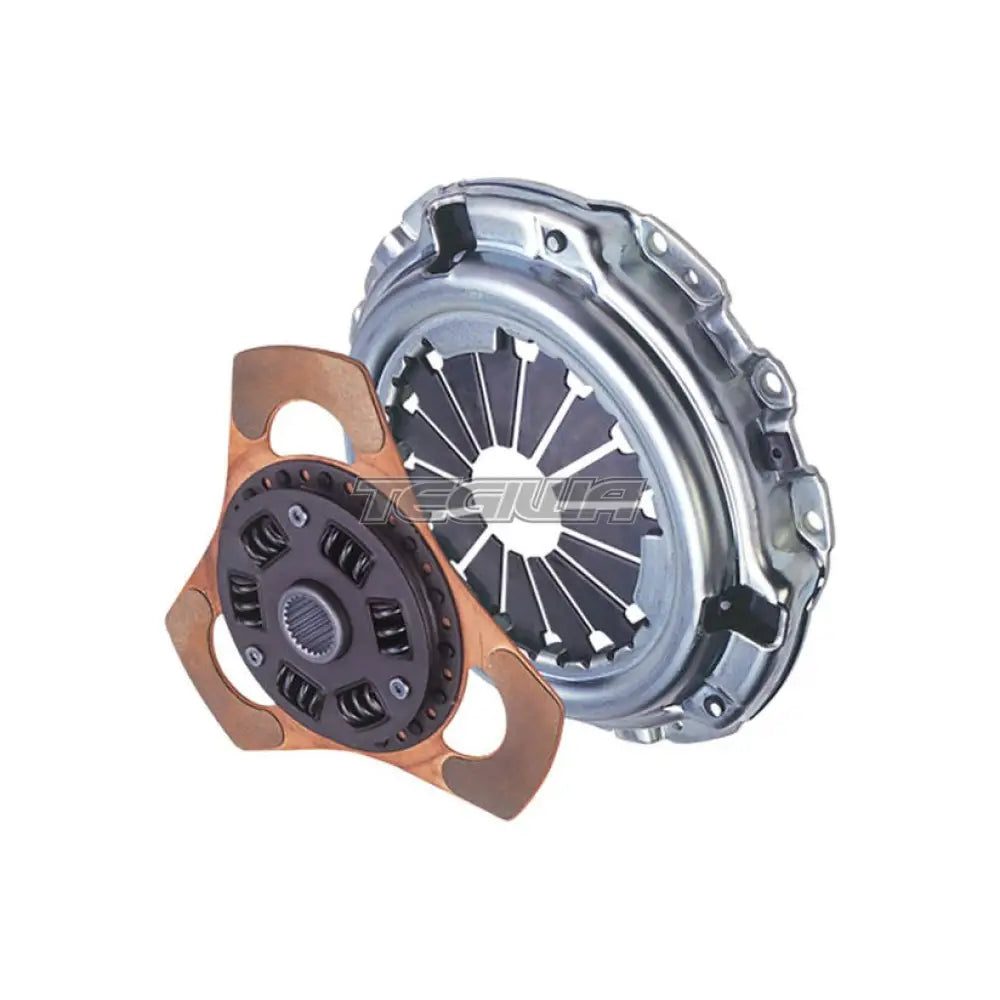

Exedy – Single Series Stage 2 Racing Clutch Mazda RX-7 FD3S 13BT-REW 91-01

• PartNo: ZK02R600
• PartNoDesc: Stage 2 Racing
• Outer Diameter (mm): 235
• Supplementary Article Info: With bearing(s)
• Disc Facing: Cerametallic
• Pull Type: Yes
• Push Type:
• Sprung Centre Disc?: Yes
• Torque @ Flywheel: 340 lb.ft./460 Nm
• Torque @ Wheels: 280 lb.ft./380 Nm
• Clamp Load (N): 9310
• Number of Paddles: 3

The Stage 2 Racing clutch is specifically designed for circuit motorsport. In competition where 1/1000th of a second may determine the difference between winning and losing, the quick shifting response and reduced inertia offered by this series is the ultimate benefit.

Main Benefits

• A reduction of 30% inertia over the original equipment part.
• Up to a 40% increase in torque capacity over standard.
• Approximately 40% higher clamp load than the standard clutch.

Suitable For

• Circuit Racing
• Time Attack
• Drifting

Clutch Cover

Single Series clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part enabling a higher torque capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges.

Note: Single Series Clutch Kits with HD in the middle of a kit reference denote that the cover has a higher clamp load. e.g. Mitsubishi EVO Organic kit: MK04HD601

R-Type Cerametallic Disc

The R-Type Cerametallic Disc has a unique metal button configuration and is thinner to reduce the overall weight. As a result, inertia is approximately 30% lower than the OEM Disc.

Stage 2 Racing discs are approximately half the thickness of a stock disc and are strictly recommended for circuit use only.
