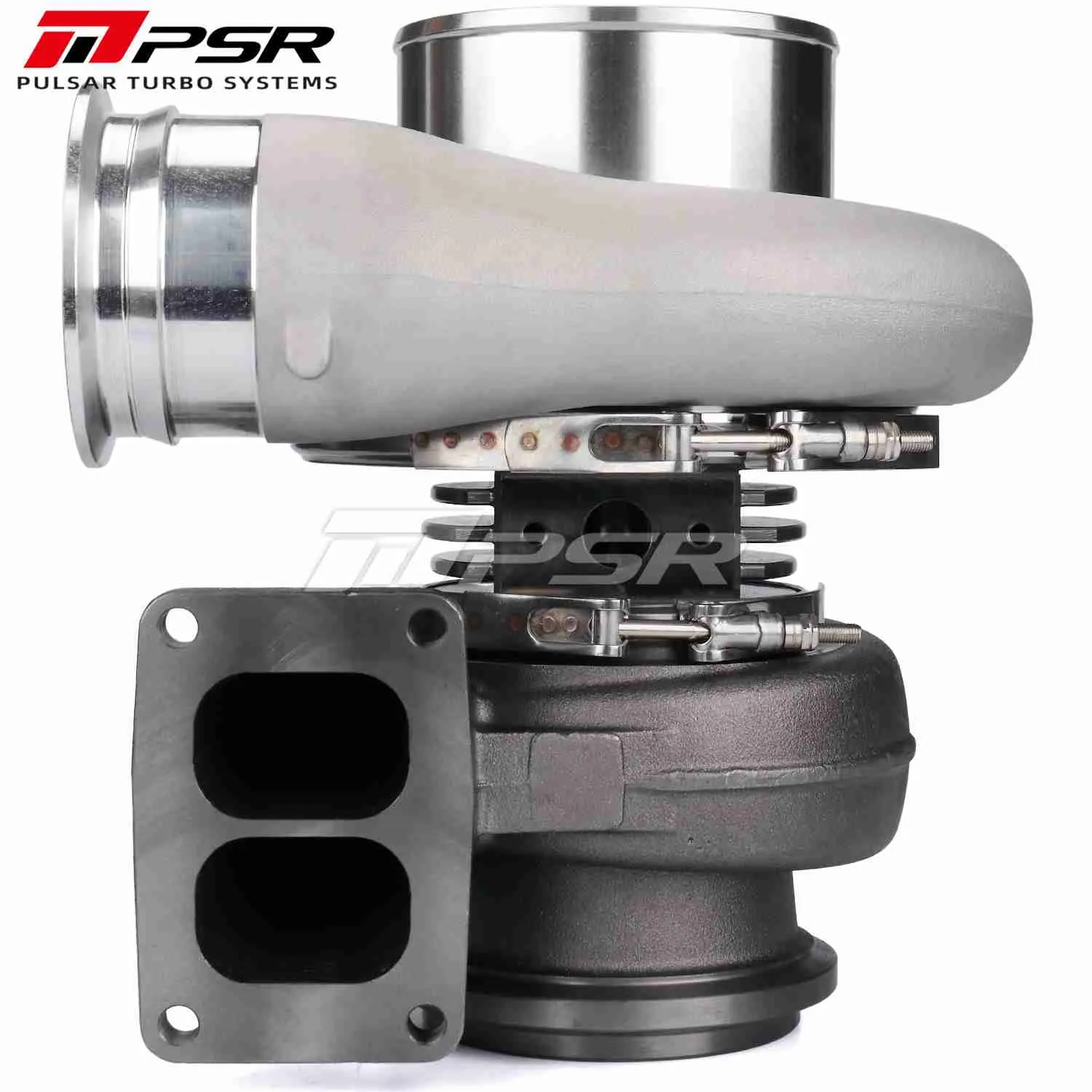

Pulsar Turbo – PSR 485D DUAL BALL BEARING TURBO CURVED POINT MILLED BILLET COMPRESSOR WHEEL
SKU: PSR-102240512
Pulsar Turbo – PSR 485D DUAL BALL BEARING TURBO CURVED POINT MILLED BILLET COMPRESSOR WHEEL
PSR 485D DUAL -[PSR-102240512]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1350
Features:
- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 85*120mm 6+6 Blade Curved Point Milled Compressor Wheel
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm and 109/99mm Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Review: 480D 1115hp on 57psi, Fuel: M1 Alcohol link
Details:
- Compressor Inlet: 5.5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.15, 1.32, 1.45, and 1.58 in Option
- Turbine Housing Inlet: T6 Open and T6 Divided in Option
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
* V-band Flange Kits are available:
- TRB. Outlet 4” Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5” Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3” Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5” Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4” Flange&Clamp Kit(164340005): $59.99
| Weight | N/A |
| Dimensions | N/A |
| Compressor Housing Options | Standard, T51R MOD |
| Turbine Wheel Options | 102/91mm, 109/99mm |
| Turbine Housing Options | T6(Divided) 1.15 A/R, T6(Divided) 1.32 A/R, T6(Divided) 1.45 A/R, T6(Divided) 1.58 A/R, T6(Open) 1.58 A/R |
Price:
€1,933.18€1,571.69 Inc VATExcl VAT
€1,933.18€1,571.69 Inc VATExcl VAT
Available on backorder
Description
Pulsar Turbo – PSR 485D DUAL BALL BEARING TURBO CURVED POINT MILLED BILLET COMPRESSOR WHEEL
PSR 485D DUAL -[PSR-102240512]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1350
Features:
- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 85*120mm 6+6 Blade Curved Point Milled Compressor Wheel
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm and 109/99mm Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Review: 480D 1115hp on 57psi, Fuel: M1 Alcohol link
Details:
- Compressor Inlet: 5.5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.15, 1.32, 1.45, and 1.58 in Option
- Turbine Housing Inlet: T6 Open and T6 Divided in Option
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
* V-band Flange Kits are available:
- TRB. Outlet 4” Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5” Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3” Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5” Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4” Flange&Clamp Kit(164340005): $59.99
| Weight | N/A |
| Dimensions | N/A |
| Compressor Housing Options | Standard, T51R MOD |
| Turbine Wheel Options | 102/91mm, 109/99mm |
| Turbine Housing Options | T6(Divided) 1.15 A/R, T6(Divided) 1.32 A/R, T6(Divided) 1.45 A/R, T6(Divided) 1.58 A/R, T6(Open) 1.58 A/R |
Additional information
| Weight | 24 kg |
|---|---|
| Show Universal Products? |
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
This is an universal product.Please note that modifications might be needed in order to fit this part in your specific car.
-
Description
Description
Pulsar Turbo – PSR 485D DUAL BALL BEARING TURBO CURVED POINT MILLED BILLET COMPRESSOR WHEEL
PSR 485D DUAL -[PSR-102240512]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1350
Features:
- CNC Machined Bearing Housing with The FIN COOLING DESIGN
- Dual Ceramic Ball Bearing Systems
- 85*120mm 6+6 Blade Curved Point Milled Compressor Wheel
- Billet Compressor Wheels with Extended Tip Technology
- 102/91mm and 109/99mm Turbine Wheel Options
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
- Review: 480D 1115hp on 57psi, Fuel: M1 Alcohol link
Details:
- Compressor Inlet: 5.5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.15, 1.32, 1.45, and 1.58 in Option
- Turbine Housing Inlet: T6 Open and T6 Divided in Option
- Turbine Housing Outlet: 3/4 Marmon V-band
- Oil Feed Port 1/4NPT
- Oil Drain Std T6 drain Flange
* V-band Flange Kits are available:
- TRB. Outlet 4” Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5” Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3” Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5” Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4” Flange&Clamp Kit(164340005): $59.99
Weight N/A Dimensions N/A Compressor Housing Options Standard, T51R MOD
Turbine Wheel Options 102/91mm, 109/99mm
Turbine Housing Options T6(Divided) 1.15 A/R, T6(Divided) 1.32 A/R, T6(Divided) 1.45 A/R, T6(Divided) 1.58 A/R, T6(Open) 1.58 A/R
-
Additional information
Additional information
Weight 24 kg Show Universal Products? -
Reviews (0)
Reviews
There are no reviews yet.
-
Fitments
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
This is an universal product.
Please note that modifications might be needed in order to fit this part in your specific car.
