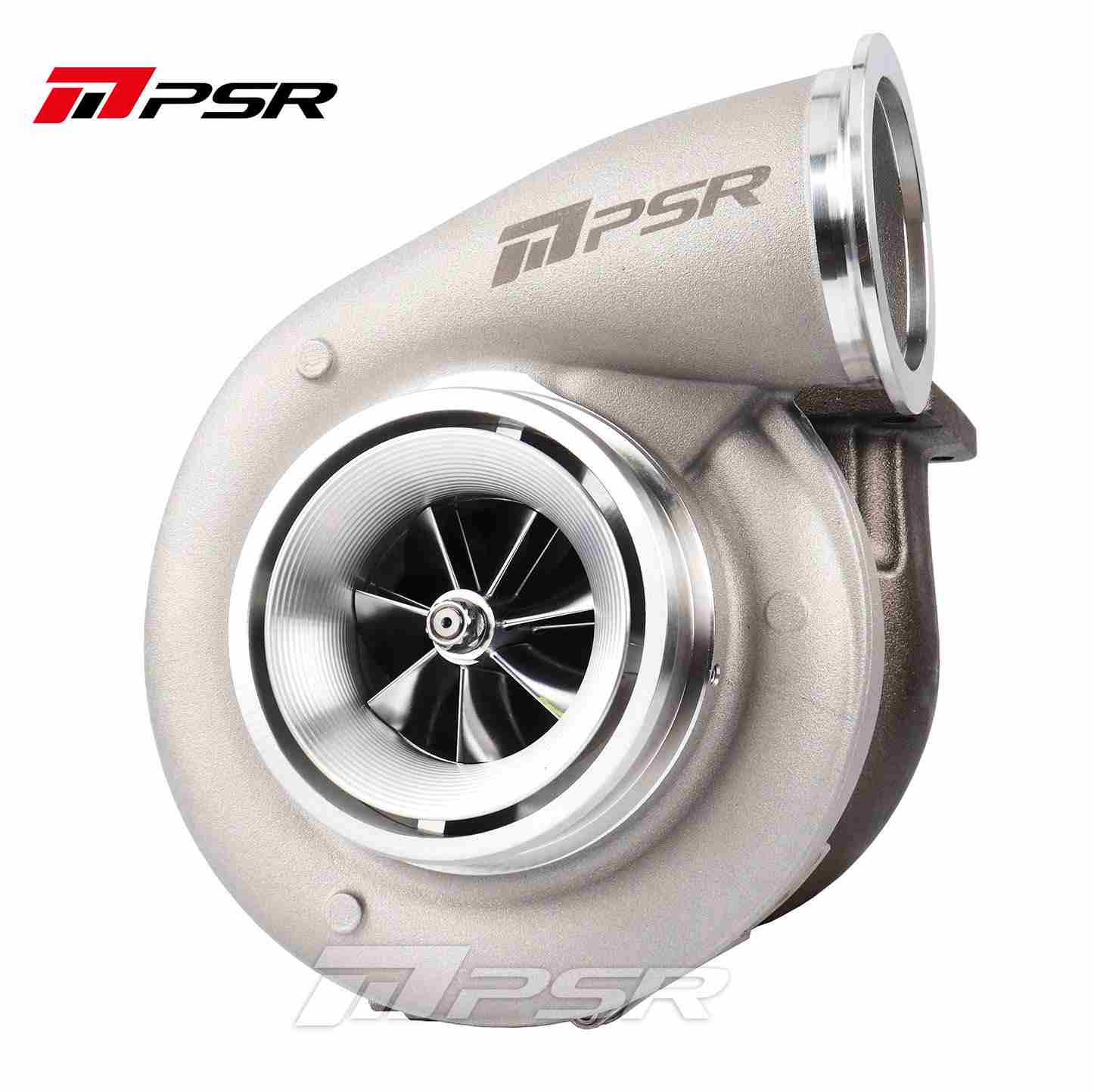

Pulsar Turbo – PSR 475 Journal Bearing Billet Compressor Wheel Turbocharger
SKU: PSR-100140723
Pulsar Turbo – PSR 475 Journal Bearing Billet Compressor Wheel Turbocharger
PSR 475 Journal -[PSR-100140723]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 500-1000
Features:
- Compressor Wheel: 75*101mm 7+7
- Billet Compressor Wheels with Extended Tip Technology
- 83/74mm, 87.4/81.7mm, 96/88mm in Turbine Wheel Options
- STD Compressor Cover without Speed Sensor Port integrated
- T51R MOD Compressor Cover without Speed Sensor Port integrated
- -12AN Oil Drain Flange
Details:
- Compressor Inlet: 5″ Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 0.9, 1.10, 1.15, 1.25, 1.32 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
 V-band Flange Kits are available:
- TRB. Outlet 4″ Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5″ Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3″ Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5″ Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4″ Flange&Clamp Kit(164340005): $59.99
| Weight | N/A |
| Dimensions | N/A |
| Compressor Housing Options | Standard, T51R MOD, Without Compressor Cover |
| Turbine Wheel Options | 83/74mm, 87.4/81.7mm, 96/88mm |
| Turbine Housing Options | T4 0.9, T4 1.0, T4 1.10, T4 1.25, T6 1.15A/R, T6 1.32 A/R, T6 divided 1.45A/R, T6 1.58 A/R, Without Turbine Housing |
Price:
€1,184.85€963.29 Inc VATExcl VAT
€1,184.85€963.29 Inc VATExcl VAT
Available on backorder
Description
Pulsar Turbo – PSR 475 Journal Bearing Billet Compressor Wheel Turbocharger
PSR 475 Journal -[PSR-100140723]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 500-1000
Features:
- Compressor Wheel: 75*101mm 7+7
- Billet Compressor Wheels with Extended Tip Technology
- 83/74mm, 87.4/81.7mm, 96/88mm in Turbine Wheel Options
- STD Compressor Cover without Speed Sensor Port integrated
- T51R MOD Compressor Cover without Speed Sensor Port integrated
- -12AN Oil Drain Flange
Details:
- Compressor Inlet: 5″ Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 0.9, 1.10, 1.15, 1.25, 1.32 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
 V-band Flange Kits are available:
- TRB. Outlet 4″ Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5″ Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3″ Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5″ Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4″ Flange&Clamp Kit(164340005): $59.99
| Weight | N/A |
| Dimensions | N/A |
| Compressor Housing Options | Standard, T51R MOD, Without Compressor Cover |
| Turbine Wheel Options | 83/74mm, 87.4/81.7mm, 96/88mm |
| Turbine Housing Options | T4 0.9, T4 1.0, T4 1.10, T4 1.25, T6 1.15A/R, T6 1.32 A/R, T6 divided 1.45A/R, T6 1.58 A/R, Without Turbine Housing |
Additional information
| Weight | 18 kg |
|---|---|
| Show Universal Products? |
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
This is an universal product.Please note that modifications might be needed in order to fit this part in your specific car.
-
Description
Description
Pulsar Turbo – PSR 475 Journal Bearing Billet Compressor Wheel Turbocharger
PSR 475 Journal -[PSR-100140723]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 500-1000
Features:
- Compressor Wheel: 75*101mm 7+7
- Billet Compressor Wheels with Extended Tip Technology
- 83/74mm, 87.4/81.7mm, 96/88mm in Turbine Wheel Options
- STD Compressor Cover without Speed Sensor Port integrated
- T51R MOD Compressor Cover without Speed Sensor Port integrated
- -12AN Oil Drain Flange
Details:
- Compressor Inlet: 5″ Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 0.9, 1.10, 1.15, 1.25, 1.32 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
 V-band Flange Kits are available:
- TRB. Outlet 4″ Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5″ Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3″ Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5″ Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4″ Flange&Clamp Kit(164340005): $59.99
Weight N/A Dimensions N/A Compressor Housing Options Standard, T51R MOD, Without Compressor Cover
Turbine Wheel Options 83/74mm, 87.4/81.7mm, 96/88mm
Turbine Housing Options T4 0.9, T4 1.0, T4 1.10, T4 1.25, T6 1.15A/R, T6 1.32 A/R, T6 divided 1.45A/R, T6 1.58 A/R, Without Turbine Housing
-
Additional information
Additional information
Weight 18 kg Show Universal Products? -
