Prosport Coilover Kit – VW Caddy Maxi / VW Caddy Mk3 / VW Caddy Mk4 (2004-2020)

Prosport Coilovers: Caddy Maxi 2K, Caddy Mk3 Facelift 2K, Caddy Mk4 2K SA, Caddy Mk3 2K

Key Features:

Zinc plated front Coilover units, silver painted and lacquered rear shock absorbers
Alloy adjustment and lock rings on the Coilover Units
Robust steel rear axle bracket kit for strength and security
Engineered to give the best balance between firmly controlled handling and comfort

Compatible with:

This Prosport Coilover Kit is suitable for these:

VW Caddy Mk3 Facelift 2K models, made from 2010-2015: 1.2 TSI, 1.6 LPG, 1.6 TDI, 2.0 TDI, Includes DSG versions, Not suitable for 4-Motion models0

VW Caddy Mk3 2K models, made from 2004-2010: 1.4 MPI, 1.6 MPI, 1.9 TDI, 2.0 SDI, 2.0 TDI, Includes DSG versions, Not suitable for 4-Motion models

VW Caddy Mk4 2K SA models, made from 2015-2020: 1.0 TSI, 1.2 TSI, 1.4 TSI, 2.0 TDI, Includes DSG versions, Not suitable for 4-Motion models

Suitable for vehicles fitted with 50mm and 55mm diameter standard front struts.

Lowering Range:

Front: 30-75mm
Rear: 50-85mm

Product Specifications in Detail:

Front Shock Absorber Type: Twin-Tube with pressurised gas
Rear Shock Absorber Type: Twin-Tube with pressurised gas
Front Spring Type: Progressively wound
Rear Spring Type: N/A
Maximum Front Axle Load: 1105kg
Maximum Rear Axle Load: 1250kg
Zinc plated front Coilover units, silver painted and lacquered rear shock absorbers
Blue EPS Powder Coating on the springs
Alloy adjustment and lock rings on the Coilover Units
Robust steel rear axle bracket kit for strength and security
TUV Quality Certification: Yes – Find out more about TUV here: https://en.tuv.at/inspection-and-approval/

Good to Know:

These Prosport Coilovers are designed to fit on to the standard (OEM) top mounts.
No additional parts needed for installation of this Prosport Coilover Kit.
TUV Quality Certification.
1 year warranty.
We recommend having the suspension geometry checked and adjusted after fitting these Coilovers.
To ensure both optimum performance and reliability, always keep within the lowering range shown above.
Vehicles with factory-fitted sport suspension will lower by less than the stated figures

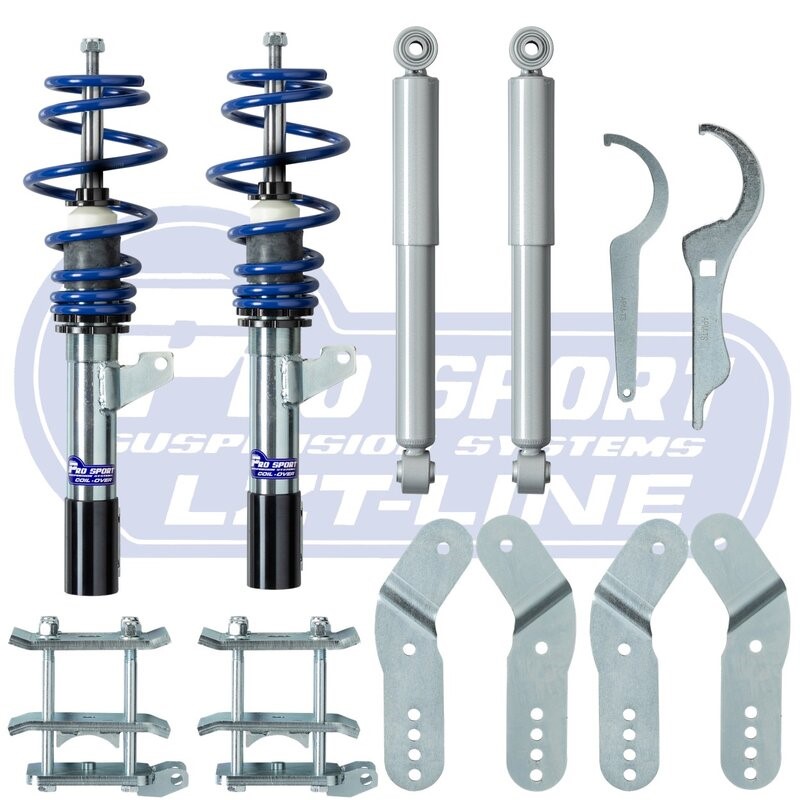

In the box:

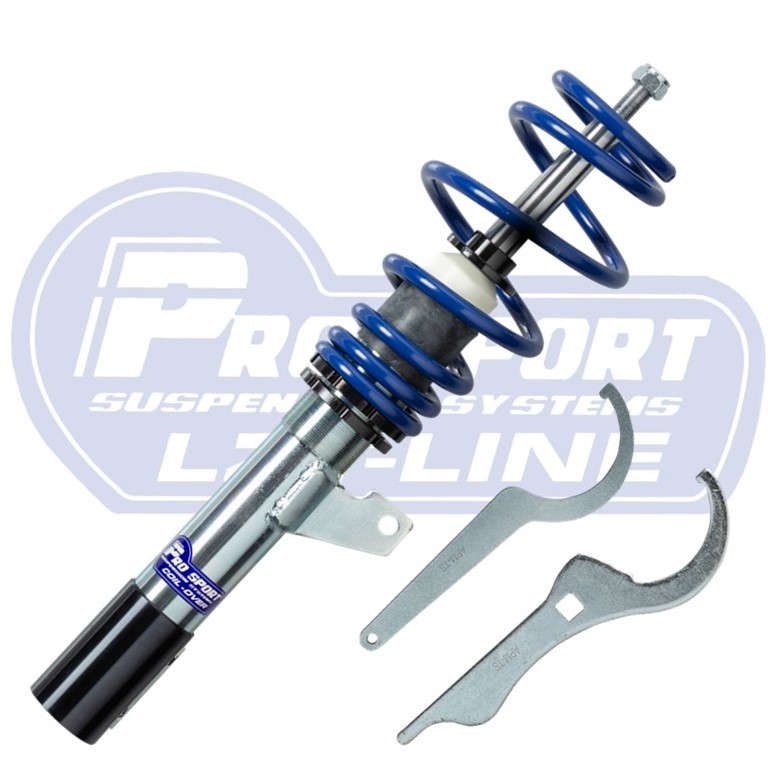

Front Coilovers x2
50-55mm adapter sleeve x2

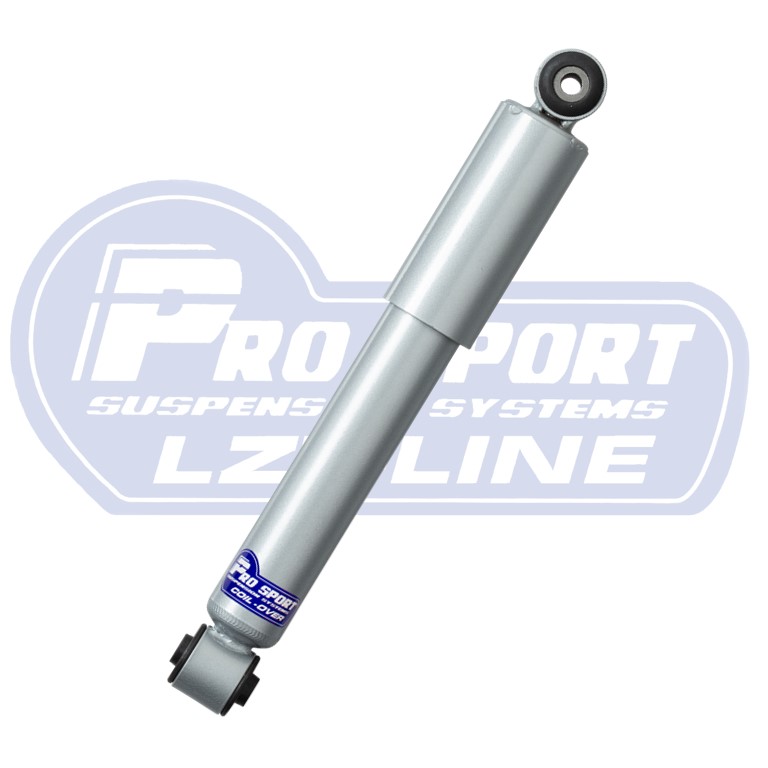

Rear Uprated, Shortened Shock Absorbers x2
Bracket kit to enable repositioning of the rear axle
Tools for setting ride height
