HKS – Oil Cooler Kit GDB F WRX STI 6/2005~9/2007 12 row
SKU: 15004-AF007
HKS – Oil Cooler Kit GDB F WRX STI 6/2005~9/2007 12 row
15004-AF007
Features
Oil Cooler Core mounts in left fender to avoid affecting the radiator.
Included Aluminum Air Duct guides air directly into oil cooler core.
When used in combination with the factory water-cooled oil cooler, peak oil temperature maintains a low and stable temperature.
Core size W200mm x H200mm x T32mm 12row (stock oil cooler is used simultaneously)
Hose size 10AN

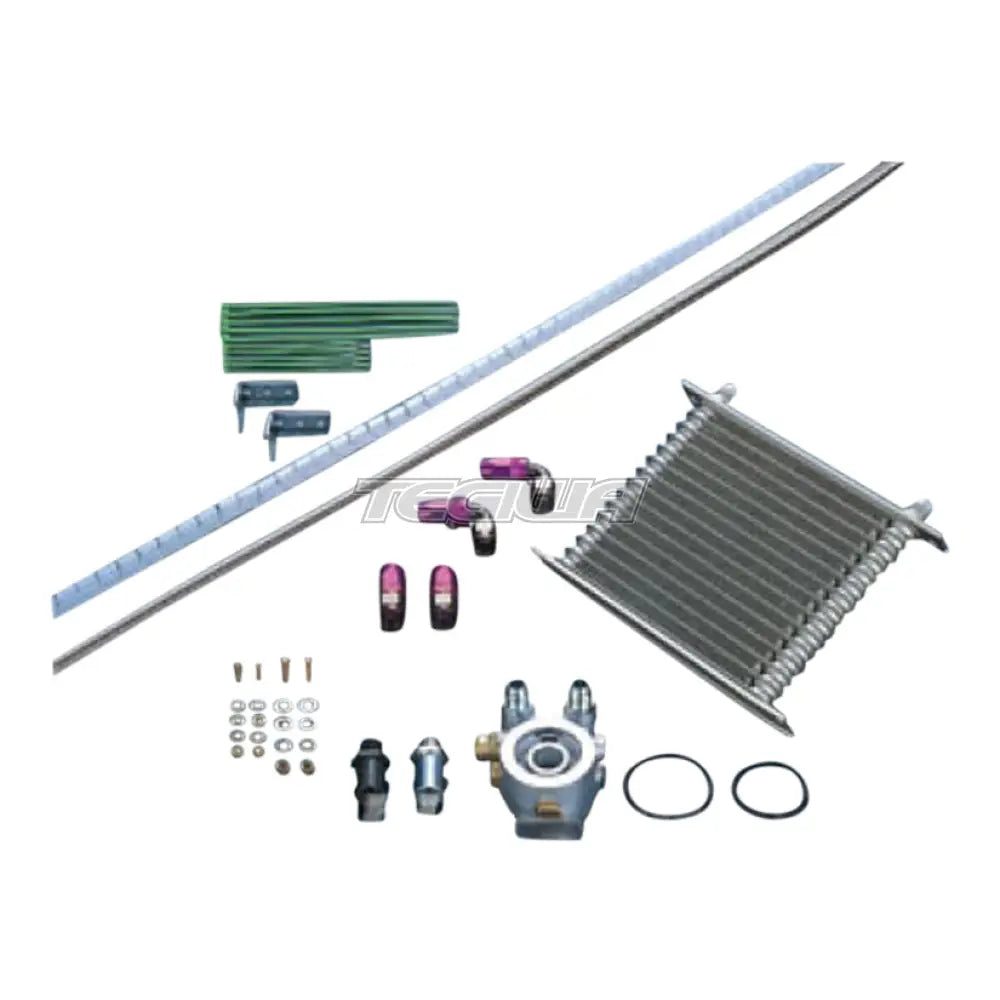

Parts List : Oil Cooler Core, Oil Cooler Hose (10AN) x 2, S-TYPE Sandwich Plate, Air Guide (IN), Stay, Other parts
Remarks
Modification of Air Guide is required when used with HKS Front Mount Intercooler (13001-AF005).
Not Compatible with STI SPEC C model.
Fog Lamps cannot be installed with Oil Cooler.
Washer Tank for Rear Window and Intercooler Spray must be removed (oil cooler core mounts in same location. If the Washer Tank and Intercooler Spray are required, use Kangaroo type.)
Oil Temperature Meter and Oil Pressure will not mount to the Sandwich Plate.
Caution: Oil filter will be lowered to same height as oil sump.
It’s very important to control the oil temperature to enjoy driving.
Extreme increases in oil temperature can break down the oil and decreases its ability to lubricate, cool and clean the engine and can cause damage as a result. HKS Oil Cooler Kits are designed with advanced cooling technology which enables stable oil temperatures to extract the maximum ability from the engine.
Oil Cooler Kit for Vehicle Specification
Optimum size of the core and layout design improves cooling performance.
With the use of a new core, both cooling and pressure drop prevention are balanced at a high level. Some vehicle applications contain air guides which maximize the air flow through the oil cooler core during vehicle operation, even in drifting applications where the car may not be facing in the direction it is pointing.
* Some kits are the factory replacement type.
HKS Oil Cooler Kit S Type is a sandwich type which has a built-in thermostat attachment.
HKS Oil Cooler S Type includes a built-in thermostat attachment, and which is held in place by the oil filter. Also, it provides superior cost performance.
Oil Temperature Meter: Oil Pressure Gauge Installation Hole
Adaptor Thermo: M12xP1.25 (1hole) , PT1/8 (1 hole)
HKS is perhaps the most known aftermarket brand in the world.
HKS specializes in aftermarket high performance auto parts engineering and manufacturing.
Formed in 1973, and named after the founders Hasegawa, Kitagawa, and Sigma, HKS began tuning engines and cars with a c vision to tune and manufacture high performance engine components and turbo kits that surpasses OE Manufacturers.
Price:
€874.00€710.57 Inc VATExcl VAT
€874.00€710.57 Inc VATExcl VAT
Delivery time 4+ weeks
Description
HKS – Oil Cooler Kit GDB F WRX STI 6/2005~9/2007 12 row
15004-AF007
Features
Oil Cooler Core mounts in left fender to avoid affecting the radiator.
Included Aluminum Air Duct guides air directly into oil cooler core.
When used in combination with the factory water-cooled oil cooler, peak oil temperature maintains a low and stable temperature.
Core size W200mm x H200mm x T32mm 12row (stock oil cooler is used simultaneously)
Hose size 10AN
Parts List : Oil Cooler Core, Oil Cooler Hose (10AN) x 2, S-TYPE Sandwich Plate, Air Guide (IN), Stay, Other parts
Remarks
Modification of Air Guide is required when used with HKS Front Mount Intercooler (13001-AF005).
Not Compatible with STI SPEC C model.
Fog Lamps cannot be installed with Oil Cooler.
Washer Tank for Rear Window and Intercooler Spray must be removed (oil cooler core mounts in same location. If the Washer Tank and Intercooler Spray are required, use Kangaroo type.)
Oil Temperature Meter and Oil Pressure will not mount to the Sandwich Plate.
Caution: Oil filter will be lowered to same height as oil sump.
It’s very important to control the oil temperature to enjoy driving.
Extreme increases in oil temperature can break down the oil and decreases its ability to lubricate, cool and clean the engine and can cause damage as a result. HKS Oil Cooler Kits are designed with advanced cooling technology which enables stable oil temperatures to extract the maximum ability from the engine.
Oil Cooler Kit for Vehicle Specification
Optimum size of the core and layout design improves cooling performance.
With the use of a new core, both cooling and pressure drop prevention are balanced at a high level. Some vehicle applications contain air guides which maximize the air flow through the oil cooler core during vehicle operation, even in drifting applications where the car may not be facing in the direction it is pointing.
* Some kits are the factory replacement type.
HKS Oil Cooler Kit S Type is a sandwich type which has a built-in thermostat attachment.
HKS Oil Cooler S Type includes a built-in thermostat attachment, and which is held in place by the oil filter. Also, it provides superior cost performance.
Oil Temperature Meter: Oil Pressure Gauge Installation Hole
Adaptor Thermo: M12xP1.25 (1hole) , PT1/8 (1 hole)
HKS is perhaps the most known aftermarket brand in the world.
HKS specializes in aftermarket high performance auto parts engineering and manufacturing.
Formed in 1973, and named after the founders Hasegawa, Kitagawa, and Sigma, HKS began tuning engines and cars with a c vision to tune and manufacture high performance engine components and turbo kits that surpasses OE Manufacturers.
