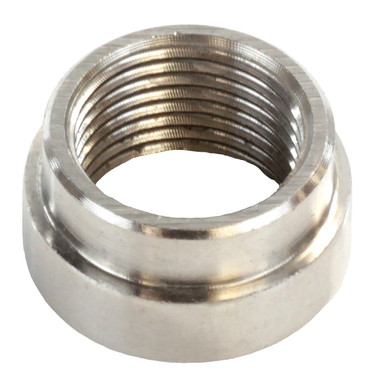

Exoracing O2 Lambda Sensor Adapter Weld In Nut M18x1.5 Stainless Steel

Description

Exoracing O2 Lambda Sensor Adapter Weld In Nut M18x1.5 Stainless Steel

Why Do You Need A Weld In Lambda Sensor Nut?

It is commonplace to find one or two Lambda sensor ports within OEM and aftermarket exhaust systems. For example, a weld-in Lambda sensor nut is the best solution if you ever need more ports to add an extra wideband.

If you have an aftermarket exhaust system, you may need to add a port to accommodate a wideband sensor or remove one of the existing ports. Most exhaust comes with a stock narrowband exhaust location, which is fine until you want to do a turbo conversion, for example.

In this case, you will need an extra port as the stock narrowband sensor will not be able to detect or calibrate to the full range you need.

As we all know, the air-fuel ratio is one of the most important aspects of aftermarket tuning, so a wideband is necessary nowadays for engine protection.

Our team has developed various solutions to this issue, including our lambda screw-in bungs or weld-in lambda ports, which are fully compatible with the universal M18x1.5 thread standard for narrowband or wideband sensors.

These specific products are crafted using high-grade 304 stainless steel to prevent any rusting or deterioration over time, ensuring the longevity and reliability of your exhaust system.

Our weld-in adapters are also threaded to M18x1.5, the most common thread for lambda sensors. We have also machined a lip onto the boss to make installing and fabricating a breeze!

The Exoracing lambda adapter nut is also incredibly small and lightweight, weighing 20g and measuring 13mmx24.5mm. We now offer a lifetime warranty on our lambda sensor adapters, giving you peace of mind and a risk-free experience.

Package Includes:

• 1 x Exoracing Lambda Sensor Adapter Nut
• 1 x Exoracing Lifetime Warranty

Features:

• Can add an extra o2 sensor port when needed to add a wideband etc
• It can be used as an OEM replacement for a broken port
• Machined from 304-grade stainless steel
• Requires welding, but flanged for ease of use
• Height: 13mm
• Outer diameter: 22mm
• Outer diameter, Including the flanged collar:24.5mm
• Inner diameter: 18mm
• Weight: 20g
• Exoracing lifetime warranty

Exoracing O2 Lambda Sensor Weld In Nut Installation Guide:

If you’re planning on installing yourself and have welding experience, please follow the steps below for the correct installation.

1. First, remove the stainless steel exhaust you plan to install this into and make sure the surface area you will be welding it to is clean.
2. Next, mark where you want to drill, ensuring you have the correct angle from the lambda sensor. Most companies, such as AEM, will include a guide that shows you the exact angle the lambda sensor needs to be seated to ensure the best performance.
3. Now drill the 22mm or 23mm hole and sit the lambda sensor adapter in the hole using the collar on the outside.
4. Weld around the lambda sensor adapter, and you’re all done!

Technical Specifications:

Notes:

• As welding and modification are required to install this part, please ask a professional welder to install it if you aren’t competent.
