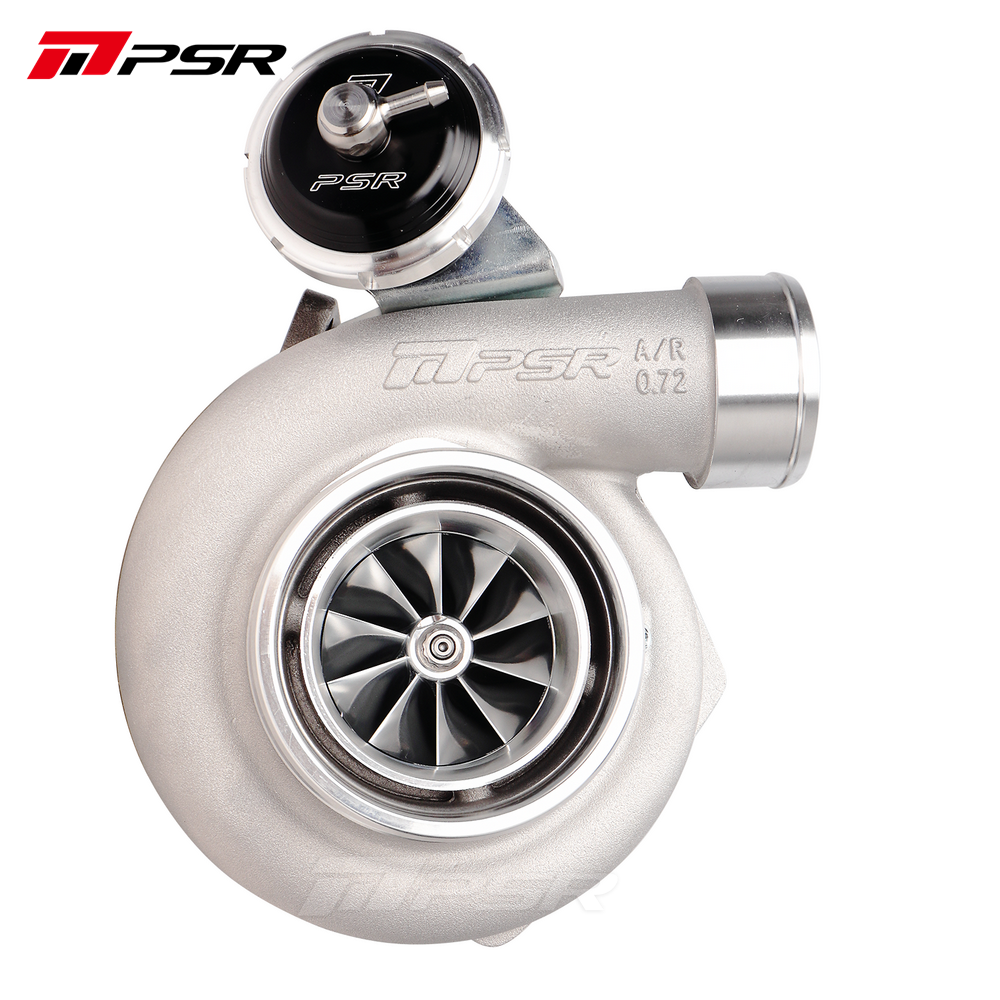

Pulsar Turbo - Next GEN PSR6784 Turbocharger for Ford Falcon to replace the factory PT3582R turbo

Pulsar Turbo – Next GEN PSR6784 Turbocharger for Ford Falcon to replace the factory PT3582R turbo

SKU: PSR-102135222

Pulsar Turbo – Next GEN PSR6784 Turbocharger for Ford Falcon to replace the factory PT3582R turbo

Next GEN PSR6784 -[PSR-102135222]

Description:

  • Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
  • RS Turbine Wheel for High Horsepower: 68*62.3mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine housing internal wastegate hole: 33mm
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Actuator working pressure: 15psi/12psi/5psi
Application:

Replacement for factory XR6 PT3582R PT3576R Turbos.

  • 2002- BA FALCON XR6
  • 2004- BF FALCON XR6
  • 2008- FPV F6/TYPHOON/TORNADO
  • 2006- TERRITORY
  • 2008- FG FALCON XR6
  • 2008- FG FALCON G6E







Weight N/A
Dimensions N/A
Turbine Housing Options 1.06 A/R, 1.15 A/R
Compressor Housing Options Standard, T51R MOD
Actuator working pressure 15psi, 12psi, 5psi

Price:

€848.10€689.51 Inc VATExcl VAT

€848.10€689.51 Inc VATExcl VAT

Available on backorder

SKU: PSR-102135222

Description

Pulsar Turbo – Next GEN PSR6784 Turbocharger for Ford Falcon to replace the factory PT3582R turbo

Next GEN PSR6784 -[PSR-102135222]

Description:

  • Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
  • RS Turbine Wheel for High Horsepower: 68*62.3mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine housing internal wastegate hole: 33mm
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Actuator working pressure: 15psi/12psi/5psi
Application:

Replacement for factory XR6 PT3582R PT3576R Turbos.

  • 2002- BA FALCON XR6
  • 2004- BF FALCON XR6
  • 2008- FPV F6/TYPHOON/TORNADO
  • 2006- TERRITORY
  • 2008- FG FALCON XR6
  • 2008- FG FALCON G6E







Weight N/A
Dimensions N/A
Turbine Housing Options 1.06 A/R, 1.15 A/R
Compressor Housing Options Standard, T51R MOD
Actuator working pressure 15psi, 12psi, 5psi

Additional information

Weight 11 kg
