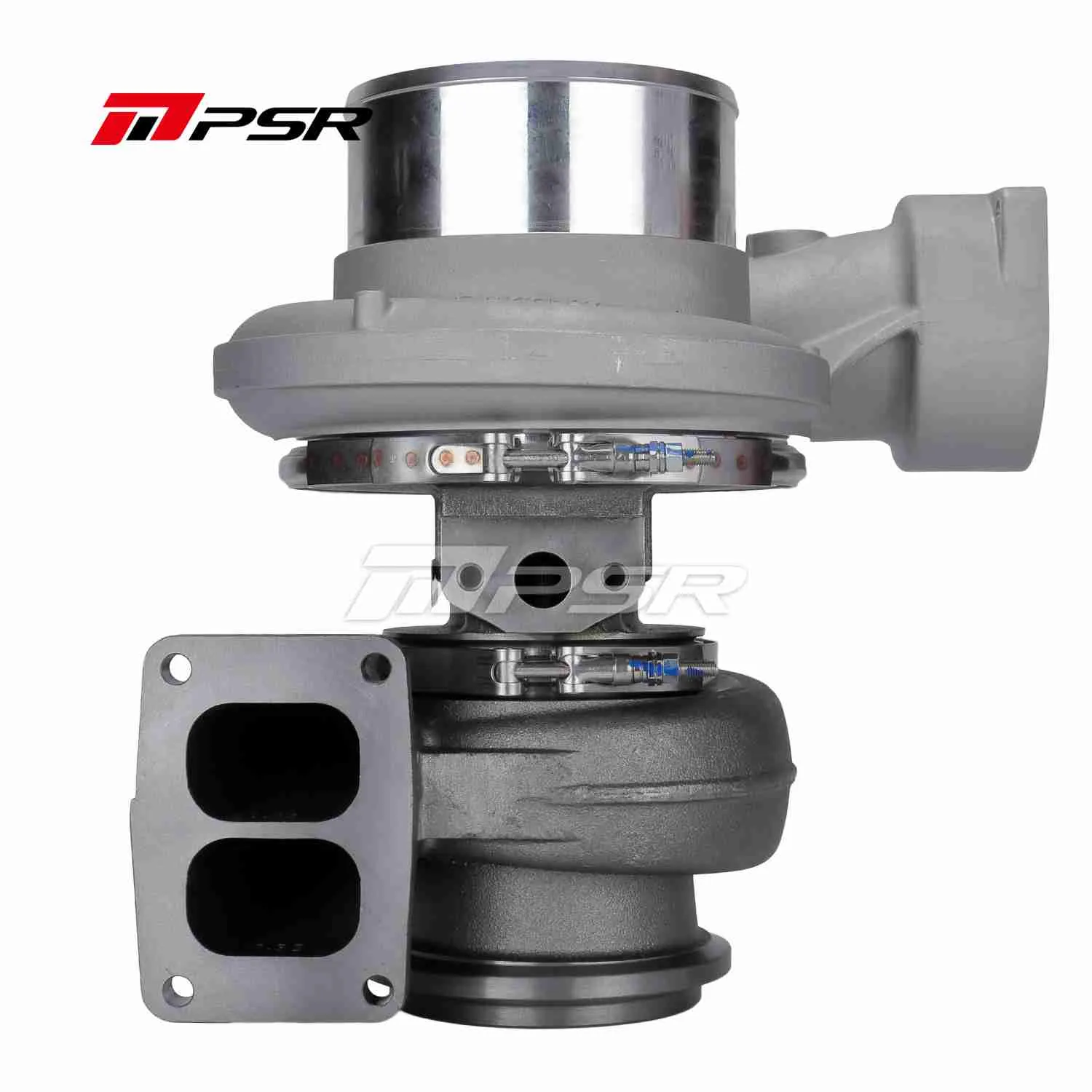

Pulsar Turbo – NEXT GEN 410SX 480G 80mm Billet Compressor Wheel Turbo with 9 Blade Turbine Wheel for CAT 3406E C15 Engine
SKU: PSR-100115122
Pulsar Turbo – NEXT GEN 410SX 480G 80mm Billet Compressor Wheel Turbo with 9 Blade Turbine Wheel for CAT 3406E C15 Engine
NEXT GEN 410SX -[PSR-100115122]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1650
Features:
- Compressor Wheel Options: 92x122mm 7+7 Blade
- Billet Compressor Wheels with Extended Tip Technology
- Turbine Wheel: 96x88mm 9+0
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details:
- Compressor Inlet: 5.5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.25, 1.15, 1.32,1.45 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
* V-band Flange Kits are available:
- TRB. Outlet 4” Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5” Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3” Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5” Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4” Flange&Clamp Kit(164340005): $59.99
| Weight | N/A |
| Dimensions | N/A |
| Compressor Housing Options | Standard, T51R MOD |
| Turbine Wheel Options | 96/88mm, 101/91.3mm, 110/99mm |
| Turbine Housing Options | T4 divided 1.25A/R, T6 divided 1.15A/R, T6 divided 1.32 A/R, T6 divided 1.45 A/R, T6 divided 1.58 A/R, T6 open 1.58, without Turbine Housing |
Price:
€1,122.49€912.59 Inc VATExcl VAT
€1,122.49€912.59 Inc VATExcl VAT
Available on backorder
Description
Pulsar Turbo – NEXT GEN 410SX 480G 80mm Billet Compressor Wheel Turbo with 9 Blade Turbine Wheel for CAT 3406E C15 Engine
NEXT GEN 410SX -[PSR-100115122]
Description:
Recommending Engine Displacement: 3.0-8.0L
HP Rating 750-1650
Features:
- Compressor Wheel Options: 92x122mm 7+7 Blade
- Billet Compressor Wheels with Extended Tip Technology
- Turbine Wheel: 96x88mm 9+0
- STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
- -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box
Details:
- Compressor Inlet: 5.5” Slip-Fit
- Compressor Outlet: V-band
- Turbine Housing A/R: 1.25, 1.15, 1.32,1.45 and 1.58 in Option
- Turbine Housing Inlet: T4 Divided and T6 Divided in Option
* V-band Flange Kits are available:
- TRB. Outlet 4” Flange&Clamp Kit(164340001): $69.99
- TRB. Outlet 5” Flange&Clamp Kit(164340002): $49.99
- COMP. Outlet 3” Flange&Clamp Kit(164340003): $49.99
- COMP. Outlet 3.5” Flange&Clamp Kit(164340004): $54.99
- COMP. Outlet 4” Flange&Clamp Kit(164340005): $59.99
| Weight | N/A |
| Dimensions | N/A |
| Compressor Housing Options | Standard, T51R MOD |
| Turbine Wheel Options | 96/88mm, 101/91.3mm, 110/99mm |
| Turbine Housing Options | T4 divided 1.25A/R, T6 divided 1.15A/R, T6 divided 1.32 A/R, T6 divided 1.45 A/R, T6 divided 1.58 A/R, T6 open 1.58, without Turbine Housing |
Additional information
| Weight | 27 kg |
|---|---|
| Show Universal Products? |
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
This is an universal product.Please note that modifications might be needed in order to fit this part in your specific car.
-
