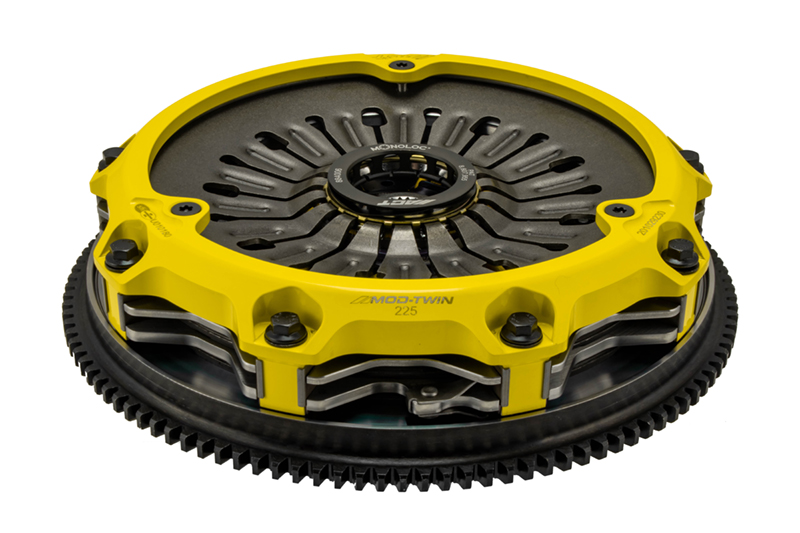

ACT – M05 ModTwin 225 HD Sprung Race

T1R-M05 – Mod-Twin 225 HD Sprung Race

T1R-M05 Mod-Twin 225 HD Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design.
Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel.
Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life.
These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration.

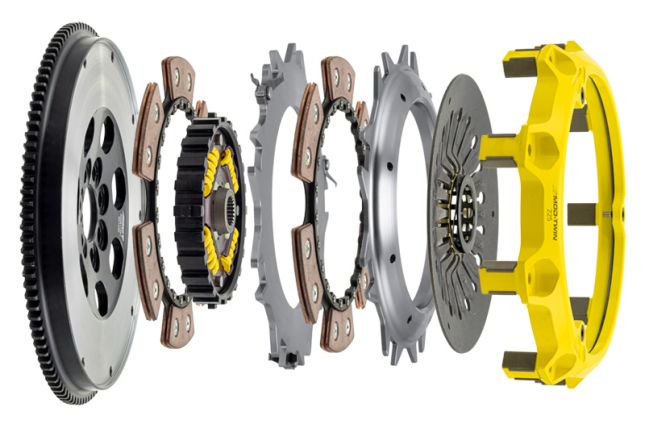

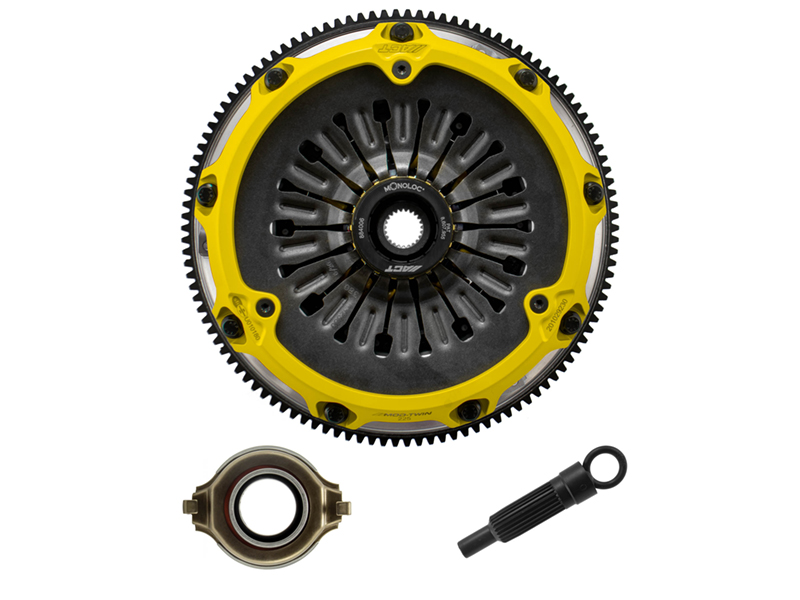

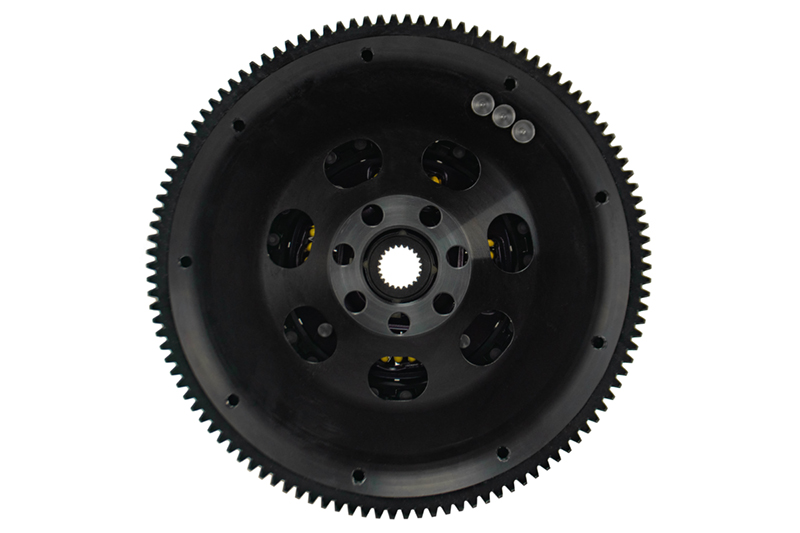

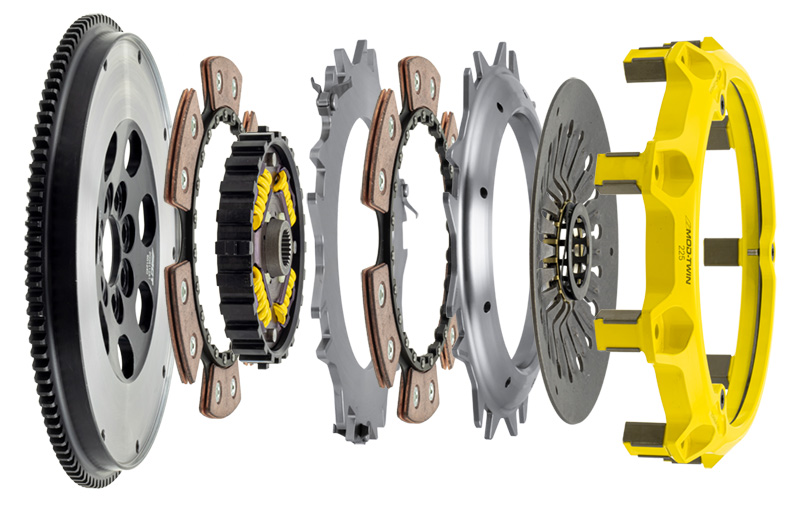

This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed).
Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Feel:

Predictable aggressive engagement, light pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise

Life:

Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions

Quality:

Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances

Recommendation:

Drag, Road, or Rally Racing

Difference:

Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity.
All are 100% clamp load tested, balanced and SFI certified
