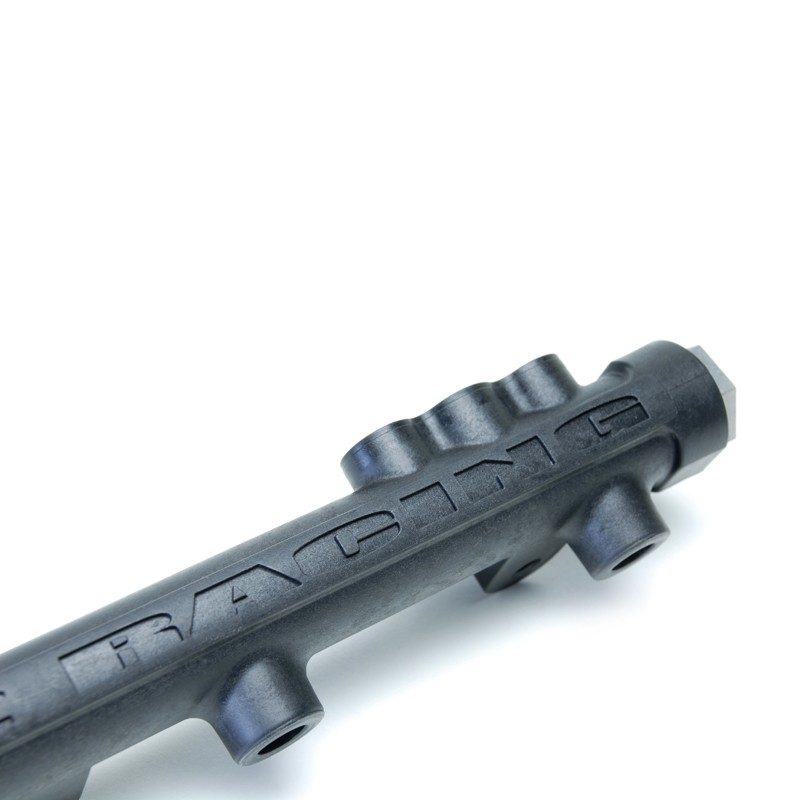

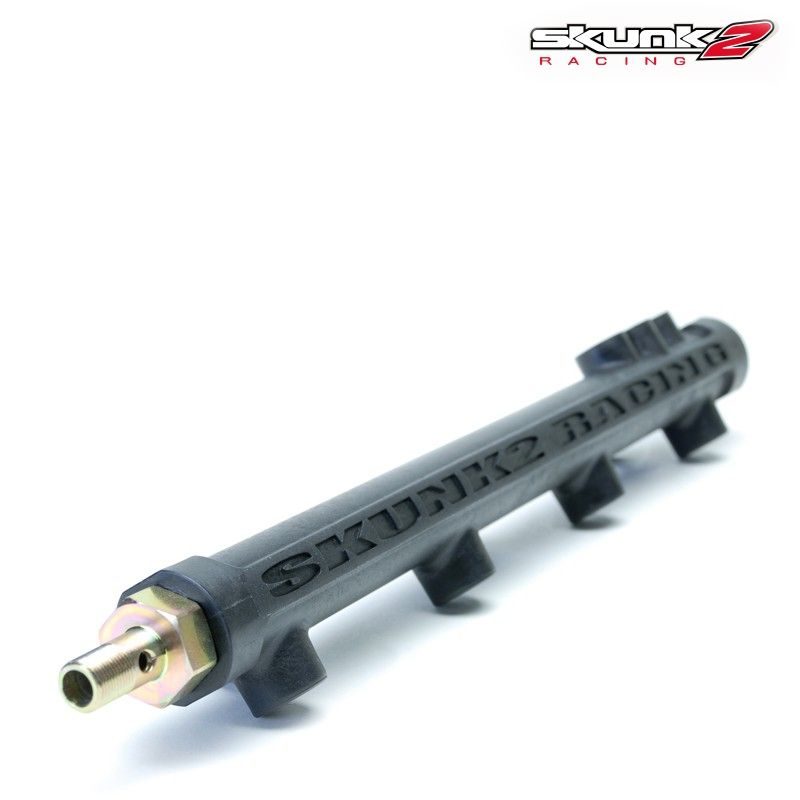

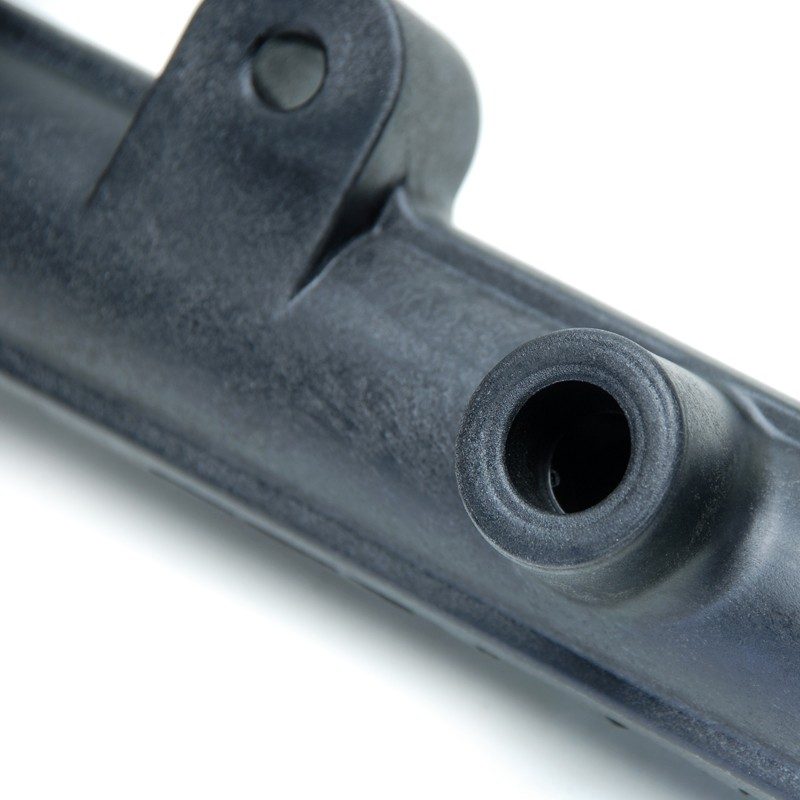

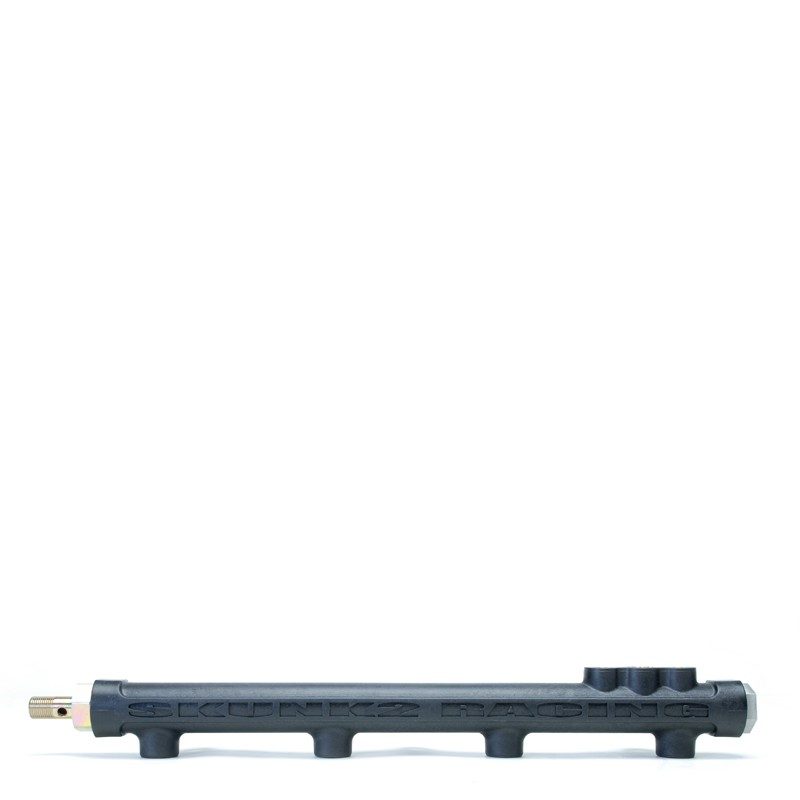

Skunk2 – Composite Fuel Rail Honda B-Series

Description

SKUNK2 – Honda Composite Fuel Rail Racing (B-Engines 1987-2002)

SKUNK2 COMPOSITE FUEL RAIL HONDA B-SERIES

Skunk2’s cutting-edge Composite Fuel Rail for Honda’s B-series engines is here. Skunk2’s Composite Fuel Rails are made using a proprietary carbon-impregnated, aerospace thermo-polymer compositea material that’s 33-percent lighter, 60-percent stronger, and operates up to 100-degrees F cooler when compared to aluminum and insulates fuel from both radiant and conductive heat transfer underneath the hood, resulting in increased horsepower and torque. Composite Fuel Rails also feature large 0.625-inch internal bores for superior fuel injector pulsation dampening, are machined with a smooth interior finish, and feature radius-cut fuel injector outlets for improved flow characteristics. The special design that eliminates the sharp internal angles where the main bore meets the fuelinjector bores inherent with conventional extruded- and drilled-aluminum designs can only be achieved with such composite materials. Skunk2’s B-series Composite Fuel Rails are compatible with the factory fuel system, as well as all fuels, including alcohol, and can support up to 1,200 hp, with gains as high as three percent realized during testing.

Note:
Supports up to 1,200 hp.
Integrated -8 AN inlet and outlet for easily customized fuel lines.
Features OEM fuel pressure regulator provisions.
Features additional 1/8-inch NPT fuel pressure port.
