ACT - HDSS HD/Perf Street Sprung

ACT – HDSS HD/Perf Street Sprung

SKU: VW6-HDSS

ACT – HDSS HD/Perf Street Sprung

VW6-HDSS – HD/Perf Street Sprung

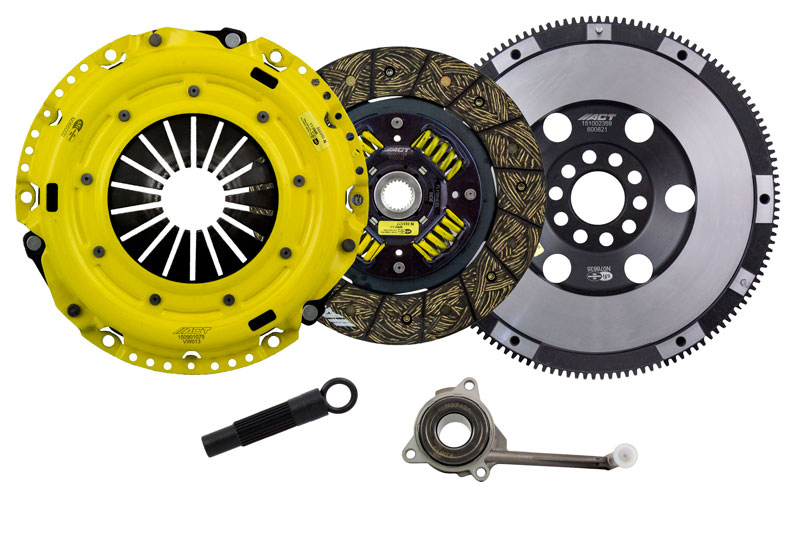

VW6-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc.
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.
ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability.
These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Feel:

Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle

Life:

Longer friction life, extended by ACT’s exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade

Recommendation:

Recommended for street and race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications
Manufacturer ACT
Sku Manufacturer VW6-HDSS
Clutch Disc diameter (mm) 240
Clutch Disc Type Street disc (Organic)
Flywheel Tooth Count 135
Pressure Plate Type Heavy Duty
Spline Count 24
Spline Size (Inches) 15/16
Torque Capacity (Nm) 556
Torque Capacity (ft/lbs.) 410
Torque Capacity Over OE 35%

Additional Information

HD/Perf Street Sprung for Seat, Volkswagen



Fitments

  • Seat Leon 1M1 2001 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2002 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2003 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2004 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2005 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2006 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon Cupra 4 1M1 2002 2,8L V6 150kw, 204hp (From 05/2002 to 06/2004, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon Cupra 4 1M1 2003 2,8L V6 150kw, 204hp (From 05/2002 to 06/2004, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon Cupra 4 1M1 2004 2,8L V6 150kw, 204hp (From 05/2002 to 06/2004, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Golf 4 1J1 Including 4Motion 2,3L V5 125kw, 170hp (From 10/2000 to 06/2005, For 6-Spd only,)
  • Volkswagen Golf 4 GTI – 6 Speed 2,8L V6 150kw, 204hp (From 03/1999 to 06/2005, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2,3L V5 110kw, 150hp (From 12/1998 to 10/2000, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2,3L V5 110kw, 150hp (From 12/1998 to 10/2000, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Bora IV 1J2 1998-2005 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, 6 Speed)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)

Price:

€2,137.00€1,737.40 Inc VATExcl VAT

€2,137.00€1,737.40 Inc VATExcl VAT

Available on backorder

SKU: VW6-HDSS

Description

ACT – HDSS HD/Perf Street Sprung

VW6-HDSS – HD/Perf Street Sprung

VW6-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc.
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.
ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability.
These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Feel:

Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle

Life:

Longer friction life, extended by ACT’s exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade

Recommendation:

Recommended for street and race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications
Manufacturer ACT
Sku Manufacturer VW6-HDSS
Clutch Disc diameter (mm) 240
Clutch Disc Type Street disc (Organic)
Flywheel Tooth Count 135
Pressure Plate Type Heavy Duty
Spline Count 24
Spline Size (Inches) 15/16
Torque Capacity (Nm) 556
Torque Capacity (ft/lbs.) 410
Torque Capacity Over OE 35%

Additional Information

HD/Perf Street Sprung for Seat, Volkswagen



Fitments

  • Seat Leon 1M1 2001 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2002 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2003 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2004 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2005 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon 1M1 2006 2,8L V6 150kw, 204hp (From 02/2001 to 06/2006, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon Cupra 4 1M1 2002 2,8L V6 150kw, 204hp (From 05/2002 to 06/2004, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon Cupra 4 1M1 2003 2,8L V6 150kw, 204hp (From 05/2002 to 06/2004, Must use ACT clutch kit, For 6-Spd only,)
  • Seat Leon Cupra 4 1M1 2004 2,8L V6 150kw, 204hp (From 05/2002 to 06/2004, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Golf 4 1J1 Including 4Motion 2,3L V5 125kw, 170hp (From 10/2000 to 06/2005, For 6-Spd only,)
  • Volkswagen Golf 4 GTI – 6 Speed 2,8L V6 150kw, 204hp (From 03/1999 to 06/2005, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2,3L V5 110kw, 150hp (From 12/1998 to 10/2000, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2,3L V5 110kw, 150hp (From 12/1998 to 10/2000, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Bora IV 1J2 1998-2005 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, 6 Speed)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2,3L V5 125kw, 170hp (From 10/2000 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
  • Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2,8L V6 150kw, 204hp (From 03/1999 to 05/2005, Must use ACT clutch kit, For 6-Spd only,)
