HDG4 HD/Race Sprung 4

ACT – HDG4 HD/Race Sprung 4 Pad

SKU: VR2-HDG4

ACT – HDG4 HD/Race Sprung 4 Pad

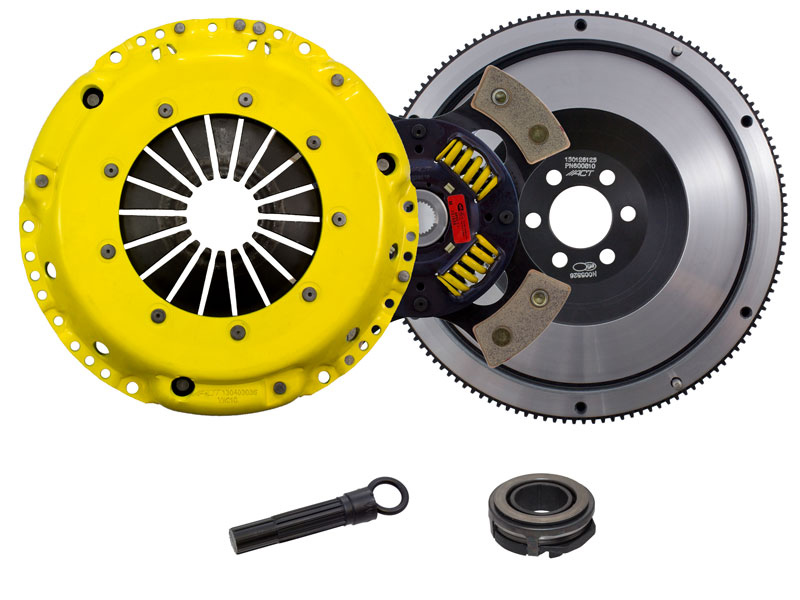

VR2-HDG4 – HD/Race Sprung 4 Pad

VR2-HDG4 kit features ACT’s most popular Heavy Duty pressure plate.
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.

ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT’s 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions.
ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.
With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster.
ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.



Feel:

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT’s exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications
Manufacturer ACT
Sku Manufacturer VR2-HDG4
Clutch Disc diameter (mm) 228
Clutch Pads 4-Pad
Clutch Disc Type Race disc (Ceramic)
Flywheel Tooth Count 132
Pressure Plate Type Heavy Duty
Spline Count 28
Spline Size (Inches) 7/8
Torque Capacity (Nm) 596
Torque Capacity (ft/lbs.) 440
Torque Capacity Over OE 72%

Additional Information

HD/Race Sprung 4 Pad for Audi, Seat, Skoda, Volkswagen

Note

Complete Kit to install with ACT Flywheel (Included)


Fitments

  • Volkswagen Golf 3 04-1996 to 04-1999 Variant (1H5) TDI 1.9L L4 1896cc 116 CID (5 Speed applications only)
  • Volkswagen Golf 3 04-1996 to 08-1997 (1H1/1H1X1) TDI 1.9L TDI L4 1896cc 116 CID (5 Speed applications only)
  • Volkswagen Jetta IV 1999-2005 TDi 1.9L L4 1896cc 116 CID (5 Speed applications only)
  • Audi A3 8L1 (1996-2003) 1,8T 5 Speed (Engine Codes: AGU, AQA, ARZ, AUM
  • )
  • Audi A3 8L1 (1996-2003) 1,9TDi 5 Speed (Engine Codes: AHF/ASV & AGR/ALH)
  • Audi TT 8N3 1,8T 5 Speed (Engine Codes: AJQ, AUQ, APP, ARY, ATC, AUM)
  • Audi TT 8N9 Roadster (2001-2006) 1,8L I4 AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Audi TT 8N9 Roadster (2001-2006) 1,8L I4 AJQ, AUQ, APP (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2000 1,8L I4 AQX, AYP (From 7/2000, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2001 1,8L I4 AQX, AYP (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2002 1,8L I4 AQX, AYP (Up to 10/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6K2/C2 1997 1,9L I4 AFN (From 3/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6K2/C2 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6K2/C2 1999 1,9L I4 AFN (Up to 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2002 1,9L I4 ATD, AXR, BMT (From 9/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2003 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2004 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2005 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2006 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2007 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2008 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2009 1,9L I4 ATD, AXR, BMT (Up to 11/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 1999 1,9L I4 ALH, AGR, AHU (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2000 1,9L I4 ALH, AGR, AHU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2001 1,9L I4 ALH, AGR, AHU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2002 1,9L I4 ALH, AGR, AHU (Up to 10/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 1999 1,9L I4 ASK, ASV (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2000 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2001 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2002 1,9L I4 ASK, ASV (Up to 10/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1999 1,9L I4 ALH, AGR (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2001 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2002 1,9L I4 ALH, AGR (Up to 12/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1999 1,9L I4 ASK, ASV (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2000 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2001 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2002 1,9L I4 ASK, ASV (Up to 12/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1997 1,9L I4 AFN (From 7/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1999 1,9L I4 AFN (Up to 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza II 6K1 1997 1,9L I4 AFN (From 2/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza II 6K1 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza II 6K1 1999 1,9L I4 AFN (Up to 8/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III Cupra 6K1 2000 1,8L I4 AQX, AYP (From 7/2000, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III Cupra 6K1 2001 1,8L I4 AQX, AYP (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III Cupra 6K1 2002 1,8L I4 AQX, AYP (Up to 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 1999 1,9L I4 ALH, AGR (From 8/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2001 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2002 1,9L I4 ALH, AGR (Up to 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 1999 1,9L I4 ASK, ASV (From 8/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2000 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2001 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2002 1,9L I4 ASK, ASV (Up to 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2003 1,8L I4 BJX, BKV (From 12/2003, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2004 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2005 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2006 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2007 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2008 1,8L I4 BJX, BKV (Up to 5/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2004 1,8L I4 BBU (From 1/2004, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2005 1,8L I4 BBU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2006 1,8L I4 BBU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2007 1,8L I4 BBU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2008 1,8L I4 BBU (Up to 2/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2002 1,9L I4 ADT, AXR, BMT (From 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2003 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2004 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2005 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2006 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2007 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2008 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2009 1,9L I4 ADT, AXR, BMT (Up to 11/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,6L I4 CAYB (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2011 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2012 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2013 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,6L I4 CAYC, CLNA (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2011 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2012 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2013 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2008 1,9L I4 BXJ (From 7/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,9L I4 BXJ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,9L I4 BXJ (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2008 1,9L I4 BLS (From 3/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,9L I4 BLS (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,9L I4 BLS (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,6L I4 CAYB (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2011 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2012 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2013 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,6L I4 CAYC, CLNA (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2011 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2012 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2013 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2008 1,9L I4 BXJ (From 7/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,9L I4 BXJ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,9L I4 BXJ (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2008 1,9L I4 BLS (From 7/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,9L I4 BLS (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,9L I4 BLS (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2010 1,6L I4 CAYB (From 3/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2011 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2012 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2013 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2010 1,6L I4 CAYC, CLNA (From 3/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2011 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2012 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2013 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 1999 1,9L I4 ALH, AGR (From 11/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2001 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2002 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2003 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2004 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2005 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2006 1,9L I4 ALH, AGR (Up to 6/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2005 1,9L I4 AXR (From 10/2005, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2006 1,9L I4 AXR (Up to 6/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 1999 1,9L I4 ASV, AHF (From 11/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2000 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2001 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2002 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2003 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2004 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2005 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2006 1,9L I4 ASV, AHF (Up to 6/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1996 1,9L I4 AFN (From 11/1996, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1997 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1999 1,9L I4 AFN (Up to 3/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 1999 1,9L I4 AGR, ALH (From 4/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2000 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2001 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2002 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2003 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2004 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2005 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2006 1,9L I4 AGR, ALH (Up to 5/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 1999 1,9L I4 AHF, ASV (From 4/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2000 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2001 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2002 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2003 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2004 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2005 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2006 1,9L I4 AHF, ASV (Up to 5/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1997 1,8L I4 ARZ, AGU, ARX, AUM (From 8/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1998 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1999 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2000 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2001 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2002 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2003 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2004 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2005 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2006 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2007 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2008 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2009 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2010 1,8L I4 ARZ, AGU, ARX, AUM (Up to 12/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2001 1,8L I4 ARX (From 5/2001, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2002 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2003 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2004 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2005 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2006 1,8L I4 ARX (Up to 5/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2001 1,8L I4 AUQ (From 5/2001, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2002 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2003 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2004 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2005 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2006 1,8L I4 AUQ (Up to 1/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1996 1,9L I4 ALH, AGR (From 9/1996, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1997 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1998 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1999 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U”

Price:

€1,252.00€1,017.89 Inc VATExcl VAT

€1,252.00€1,017.89 Inc VATExcl VAT

Available on backorder

SKU: VR2-HDG4

Description

ACT – HDG4 HD/Race Sprung 4 Pad



VR2-HDG4 – HD/Race Sprung 4 Pad

VR2-HDG4 kit features ACT’s most popular Heavy Duty pressure plate.
ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance.

ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT’s 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions.
ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.
With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster.
ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.



Feel:

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life:

Moderate friction life, extended by ACT’s exclusive diaphragm design

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for high horsepower street or race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications
Manufacturer ACT
Sku Manufacturer VR2-HDG4
Clutch Disc diameter (mm) 228
Clutch Pads 4-Pad
Clutch Disc Type Race disc (Ceramic)
Flywheel Tooth Count 132
Pressure Plate Type Heavy Duty
Spline Count 28
Spline Size (Inches) 7/8
Torque Capacity (Nm) 596
Torque Capacity (ft/lbs.) 440
Torque Capacity Over OE 72%

Additional Information

HD/Race Sprung 4 Pad for Audi, Seat, Skoda, Volkswagen

Note

Complete Kit to install with ACT Flywheel (Included)


Fitments

  • Volkswagen Golf 3 04-1996 to 04-1999 Variant (1H5) TDI 1.9L L4 1896cc 116 CID (5 Speed applications only)
  • Volkswagen Golf 3 04-1996 to 08-1997 (1H1/1H1X1) TDI 1.9L TDI L4 1896cc 116 CID (5 Speed applications only)
  • Volkswagen Jetta IV 1999-2005 TDi 1.9L L4 1896cc 116 CID (5 Speed applications only)
  • Audi A3 8L1 (1996-2003) 1,8T 5 Speed (Engine Codes: AGU, AQA, ARZ, AUM
  • )
  • Audi A3 8L1 (1996-2003) 1,9TDi 5 Speed (Engine Codes: AHF/ASV & AGR/ALH)
  • Audi TT 8N3 1,8T 5 Speed (Engine Codes: AJQ, AUQ, APP, ARY, ATC, AUM)
  • Audi TT 8N9 Roadster (2001-2006) 1,8L I4 AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Audi TT 8N9 Roadster (2001-2006) 1,8L I4 AJQ, AUQ, APP (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2000 1,8L I4 AQX, AYP (From 7/2000, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2001 1,8L I4 AQX, AYP (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2002 1,8L I4 AQX, AYP (Up to 10/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6K2/C2 1997 1,9L I4 AFN (From 3/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6K2/C2 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6K2/C2 1999 1,9L I4 AFN (Up to 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2002 1,9L I4 ATD, AXR, BMT (From 9/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2003 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2004 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2005 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2006 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2007 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2008 1,9L I4 ATD, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba 6L2 2009 1,9L I4 ATD, AXR, BMT (Up to 11/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 1999 1,9L I4 ALH, AGR, AHU (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2000 1,9L I4 ALH, AGR, AHU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2001 1,9L I4 ALH, AGR, AHU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2002 1,9L I4 ALH, AGR, AHU (Up to 10/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 1999 1,9L I4 ASK, ASV (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2000 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2001 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Hatchback 6K2 2002 1,9L I4 ASK, ASV (Up to 10/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1999 1,9L I4 ALH, AGR (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2001 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2002 1,9L I4 ALH, AGR (Up to 12/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1999 1,9L I4 ASK, ASV (From 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2000 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2001 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 2002 1,9L I4 ASK, ASV (Up to 12/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1997 1,9L I4 AFN (From 7/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Cordoba Vario 6K5 1999 1,9L I4 AFN (Up to 6/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza II 6K1 1997 1,9L I4 AFN (From 2/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza II 6K1 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza II 6K1 1999 1,9L I4 AFN (Up to 8/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III Cupra 6K1 2000 1,8L I4 AQX, AYP (From 7/2000, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III Cupra 6K1 2001 1,8L I4 AQX, AYP (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III Cupra 6K1 2002 1,8L I4 AQX, AYP (Up to 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 1999 1,9L I4 ALH, AGR (From 8/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2001 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2002 1,9L I4 ALH, AGR (Up to 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 1999 1,9L I4 ASK, ASV (From 8/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2000 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2001 1,9L I4 ASK, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza III 6K1 2002 1,9L I4 ASK, ASV (Up to 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2003 1,8L I4 BJX, BKV (From 12/2003, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2004 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2005 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2006 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2007 1,8L I4 BJX, BKV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV FR 6L1 2008 1,8L I4 BJX, BKV (Up to 5/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2004 1,8L I4 BBU (From 1/2004, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2005 1,8L I4 BBU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2006 1,8L I4 BBU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2007 1,8L I4 BBU (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV Cupra 6L1 2008 1,8L I4 BBU (Up to 2/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2002 1,9L I4 ADT, AXR, BMT (From 2/2002, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2003 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2004 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2005 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2006 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2007 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2008 1,9L I4 ADT, AXR, BMT (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza IV 6L1 2009 1,9L I4 ADT, AXR, BMT (Up to 11/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,6L I4 CAYB (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2011 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2012 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2013 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,6L I4 CAYC, CLNA (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2011 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2012 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2013 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2008 1,9L I4 BXJ (From 7/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,9L I4 BXJ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,9L I4 BXJ (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2008 1,9L I4 BLS (From 3/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2009 1,9L I4 BLS (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V 6J5 2010 1,9L I4 BLS (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,6L I4 CAYB (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2011 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2012 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2013 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,6L I4 CAYC, CLNA (From 5/2009, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2011 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2012 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2013 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2008 1,9L I4 BXJ (From 7/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,9L I4 BXJ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,9L I4 BXJ (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2008 1,9L I4 BLS (From 7/2008, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2009 1,9L I4 BLS (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza Sport Coupe V 6J1 2010 1,9L I4 BLS (Up to 6/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2010 1,6L I4 CAYB (From 3/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2011 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2012 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2013 1,6L I4 CAYB (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2010 1,6L I4 CAYC, CLNA (From 3/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2011 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2012 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Ibiza V ST 6J8 2013 1,6L I4 CAYC, CLNA (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 1999 1,9L I4 ALH, AGR (From 11/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2001 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2002 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2003 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2004 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2005 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2006 1,9L I4 ALH, AGR (Up to 6/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2005 1,9L I4 AXR (From 10/2005, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2006 1,9L I4 AXR (Up to 6/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 1999 1,9L I4 ASV, AHF (From 11/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2000 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2001 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2002 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2003 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2004 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2005 1,9L I4 ASV, AHF (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Leon 1M1 2006 1,9L I4 ASV, AHF (Up to 6/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1996 1,9L I4 AFN (From 11/1996, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1997 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1998 1,9L I4 AFN (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo I 1L 1999 1,9L I4 AFN (Up to 3/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 1999 1,9L I4 AGR, ALH (From 4/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2000 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2001 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2002 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2003 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2004 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2005 1,9L I4 AGR, ALH (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2006 1,9L I4 AGR, ALH (Up to 5/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 1999 1,9L I4 AHF, ASV (From 4/1999, Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2000 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2001 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2002 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2003 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2004 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2005 1,9L I4 AHF, ASV (Must use ACT clutch kit, Fits 5-Spd only,)
  • Seat Toledo II 1M2 2006 1,9L I4 AHF, ASV (Up to 5/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1997 1,8L I4 ARZ, AGU, ARX, AUM (From 8/1997, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1998 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1999 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2000 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2001 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2002 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2003 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2004 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2005 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2006 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2007 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2008 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2009 1,8L I4 ARZ, AGU, ARX, AUM (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2010 1,8L I4 ARZ, AGU, ARX, AUM (Up to 12/2010, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2001 1,8L I4 ARX (From 5/2001, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2002 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2003 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2004 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2005 1,8L I4 ARX (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 4X4 1U2 2006 1,8L I4 ARX (Up to 5/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2001 1,8L I4 AUQ (From 5/2001, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2002 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2003 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2004 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2005 1,8L I4 AUQ (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia RS 1U2 2006 1,8L I4 AUQ (Up to 1/2006, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1996 1,9L I4 ALH, AGR (From 9/1996, Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1997 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1998 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 1999 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U2 2000 1,9L I4 ALH, AGR (Must use ACT clutch kit, Fits 5-Spd only,)
  • Skoda Octavia 1U”

Additional information

Show Universal Products?

Reviews

There are no reviews yet.

Be the first to review “ACT – HDG4 HD/Race Sprung 4 Pad”

Your email address will not be published. Required fields are marked *

THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:

Volkswagen Vento [1H] (1992-1999)
Volkswagen Golf [Mk4] (1997-2004)
Volkswagen Golf [Mk3] (1991-1998)
Volkswagen Bora [1J] (1998-2005)
Skoda Octavia Mk1 [1U] (1998-2004)
Seat Leon Mk1 [1M] (2000-2006)
Seat Ibiza Mk4 [6J/6P] (2008-2017)
Seat Ibiza Mk3 [6L] (2001-2009)
Audi TT Mk1 [8N] (1998-2005)
Audi A3 [8L] (1996-2003)

You may also like…

Related products

Shop All Products

Fast Delivery*

Safe & Secure

Payment

13,000+ Parts

In Stock

Personal

Customer service
