Swagier Toyota GT86 LHD Steering Kit – WiseFab Drift

Description

Swagier Toyota GT86 LHD Steering Kit – WiseFab Drift

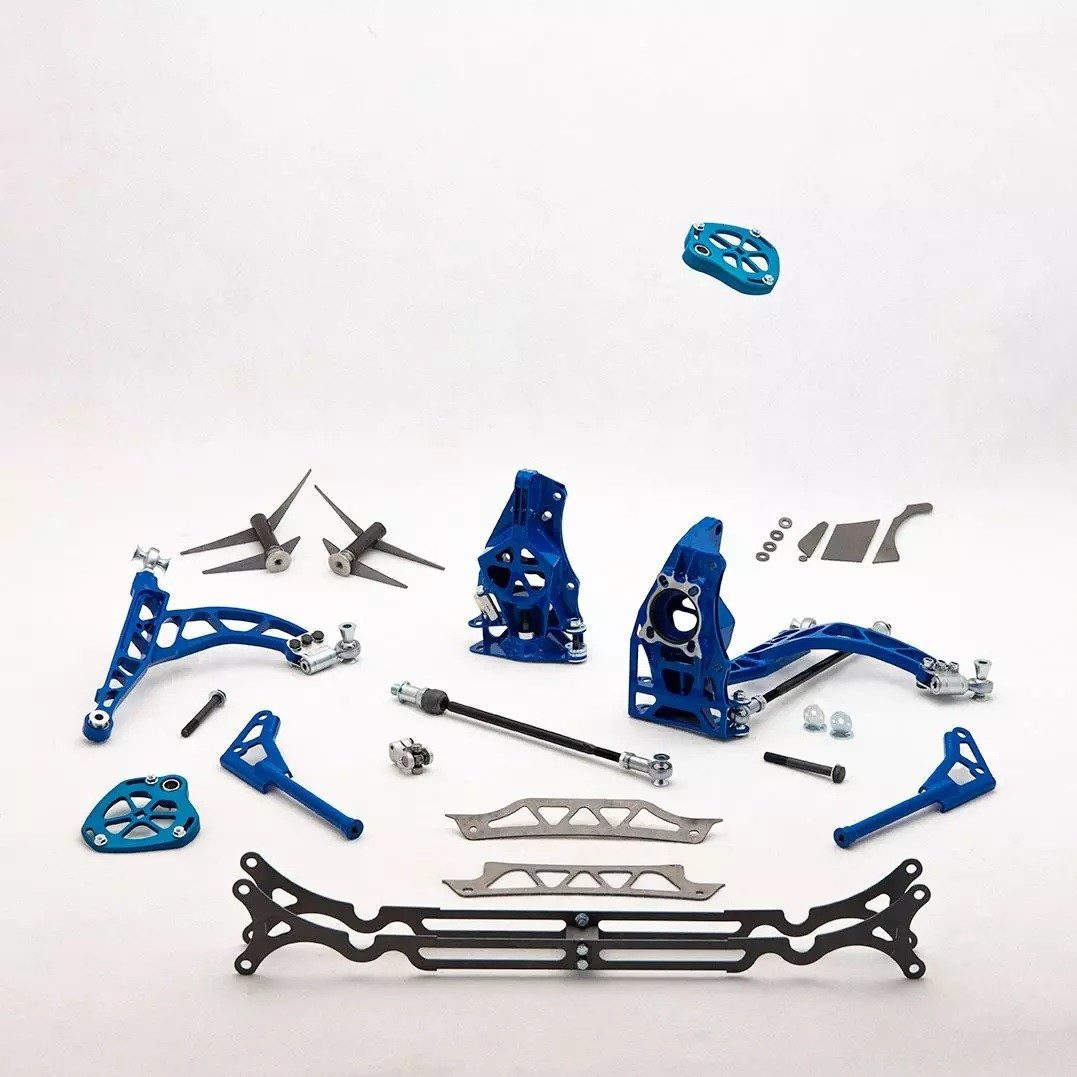

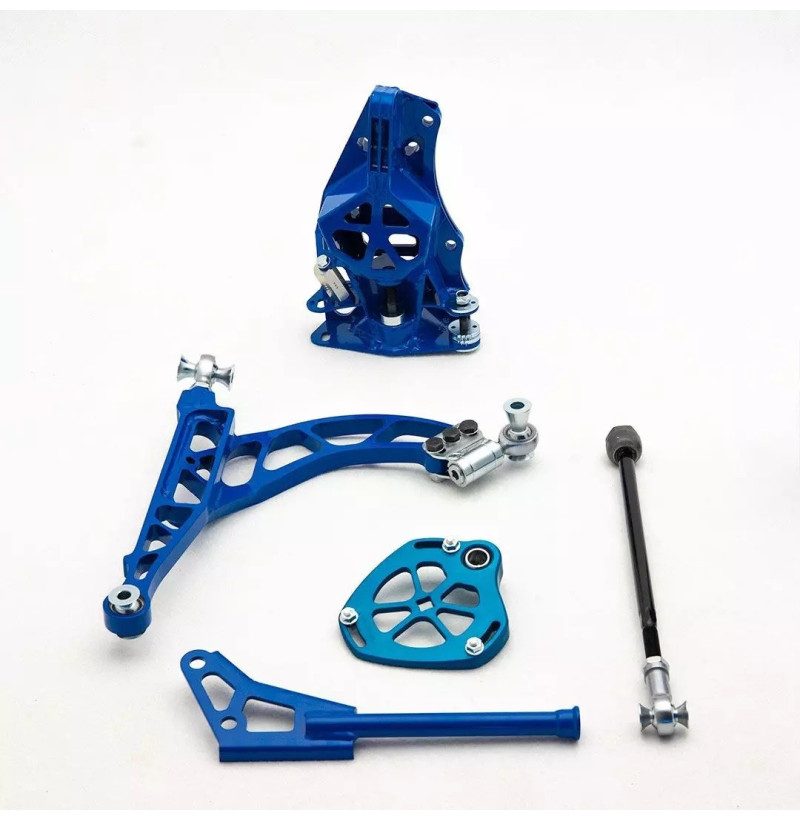

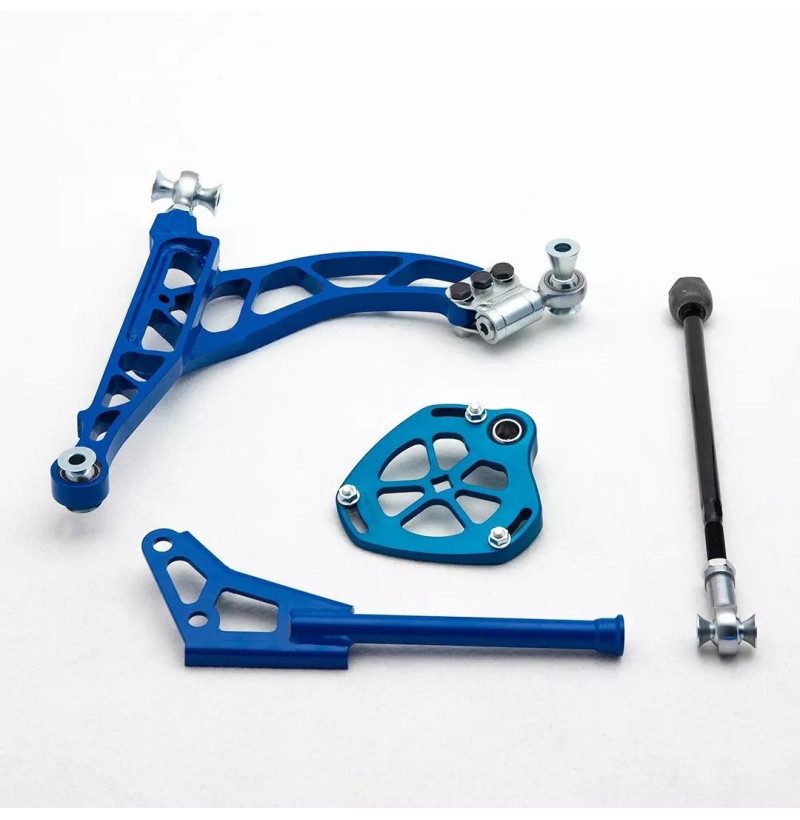

The set includes:

• 2 x upper shock mounts, pre-Formula Drift approved
• 2 x crossovers (L+R)

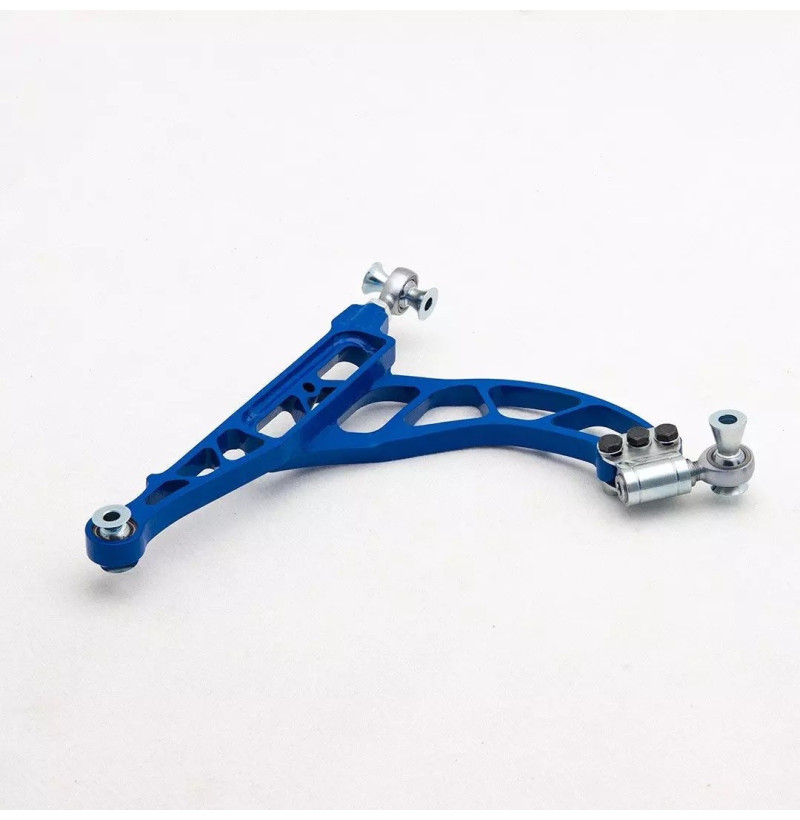

• 2 x wishbone (L+R)
• 2 x rod end
• Steering rack position change kit
• User Manual

The set features:

• The set includes BMW and Lexus steering rod mounts
• the steering rack to be used in this set is ->  BMW E90 or Lexus LS UCF30
• 65+’ parallel turn (both wheels the same)
• Ackerman adjustment option
• Adjustable max turn lock
• High quality workmanship
• Used by the best from all over the world
• The easiest possible assembly and subsequent maintenance of the suspension

Technical data:

• To modify the engine beam, cutting and welding must be performed.
• Depending on the rim used and the width and ET, the set should include widened fenders in the car
• The wheel arch does not need to be modified when using tires: (215 / 40R17, 225 / 40R17, 235 / 40R17, 215 and 225 / 35R18 etc.)
• Ecommended rim size is 18″, but some 17″ may also fit.
  Depending on rim diameter, recommended rear spacing is 150-160mm (7″ ET45; 8″ ET35; 9″ ET25). If the ET is smaller, the wheels stick out more, if the ET is larger, spacers should be used.
• Minimum rim size is 17” but we recommend using 18”
• With this kit it is necessary to use threaded suspension

The kit includes BMW and Lexus tie rod mounts and crossmember inserts. Some cutting and welding is required to modify the crossmember. Be sure to follow the installation instructions.
This kit is threaded for sufficient clearance.
Wider fenders or fender flares are needed depending on rim width and ET.
