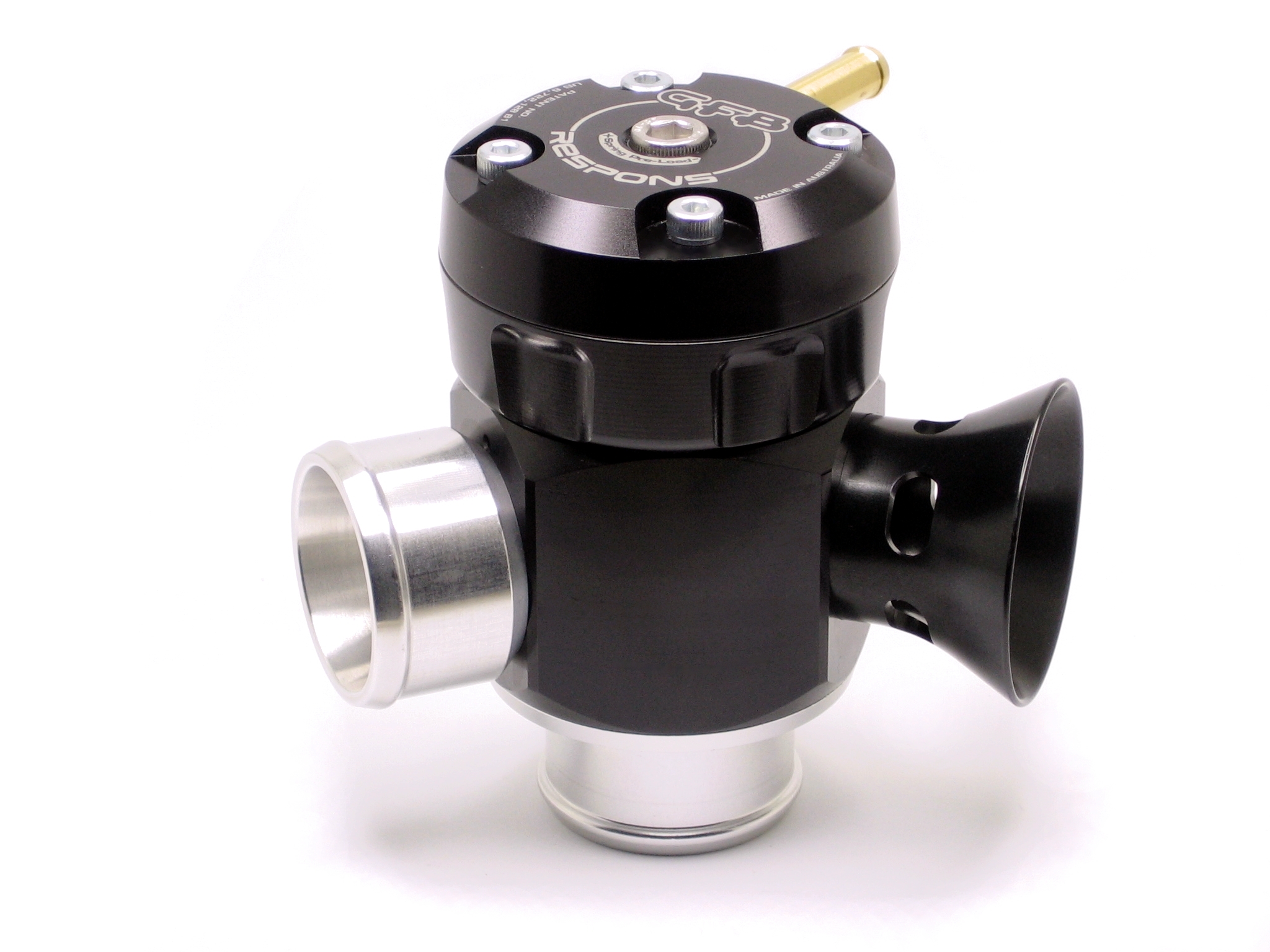

GFB Respons TMS T9033 adjustable bias venting diverter valve- BOV – Evo 1-10 Fitment

RESPONS TMS : SMARTER THAN A DUAL PORT BOV!

Atmosphere venting BOV won’t work on your car? Try a GFB Respons – you’ll be surprised!

Just another dual-port BOV?

On the surface it may look like just another dual-port blow-off valve,but the Respons is actually much more than that. Featuring GFB’s patented venting bias adjustment system, the Respons allows you to precisely control how much air vents from each of the two outlets.

Why is this so important? Two key reasons:

1. Adjust how loud the blow-off sound is. Recirculate all of the air for silent factory operation, vent it all to atmosphere for maximum noise, or set it ANYWHERE in between to suit your preference.
2. Get a blow-off sound WITHOUT causing stalling, backfiring, or any other BOV-related issues, even on a car with a sensitive airflow meter (MAF).

Hold on, it gets better. The Respons isn’t just a noise-maker. It also;

• Offers better throttle response
• Faster boost recovery on gearshift
• Unlimited boost-holding!

For example, using GFB’s TMS (Turbo Management System) principle, tests show that the Respons can return the engine to peak boost up to 30% faster than a factory diverter valve when shifting gears (more information below)

(*Chart shows comparative manifold boost pressure rise during 1st to 2nd gear shift as tested on a CA18DET with a T28 turbo. GFB TMS improvement is seen as a 30% faster return to peak boost, during which time up to40% more boost is available)

How GFB’s patented venting bias adjustment works

Twisting the adjusting ring opens up the atmo port, whilst the recirc port is simultaneously closed.This results in possible venting ratios ranging from 100% recirc, right through to 100% atmosphere and anywhere in between.

Available in a huge range of universal and direct bolt-on kits

When we say “bolt-on”, that’s EXACTLY what we mean. Everything you need is included, it fits directly in the factory location (not on a separate adaptor), and no modifications to the car are required.

Performance AND sound without compromise!

• Adjust the volume of your blow-off sound
• Up to 30% faster boost recovery on gearshift
• Get the blow off sound without the hassles – even on sensitive MAF-based systems
• Hold unlimited boost pressure
• Direct bolt-on kits available

Get the inside information…

GFB is no stranger to dual port BOVs. In fact, GFB pioneered the design in 1999, following up with the patented venting bias adjustment system in 2001.

This technology is not just a gimmick – it’s the key to getting a blow-off sound without the issues (unlike other valves), and is exclusive to GFB.

“I thought venting to atmosphere couldn’t be done on a car with an airflow meter, so how does the Respons do it?”

We’ve all heard the stories and seen people get shot down on forums when they ask about BOVs. Common responses are “your car will stall,backfire, run rich, go slower, or rip a hole in the space-time continuum that will bring about the end of the universe”. Certainly, if the BOV is not designed or adjusted correctly, at least some of these may be true.

When you vent a BOV to atmosphere, you’re letting air out of the system that has been measured by the airflow meter, so the ECU will continue to inject fuel for that missing air, hence the issues with over-fuelling that can occur.

However, by controlling HOW MUCH the valve vents, WHEN it vents, and for HOW LONG, the Respons can be configured to vent a portion of air to atmosphere at a time and of a volume that least affects the fuelling to the point where there are no negative side-effects.

Since our competitors do not have a means for adjusting the amount of air that is vented to atmosphere, they are unable to achieve the same success that a Respons does on even the most sensitive engines.

If everything you’ve heard tells you a BOV won’t work on your car, try a GFB Respons – you will be surprised!

“How does a GFB Respons improve performance?”

Boost holding

Unlike factory bypass valves, or other brand valves that require different springs for different boost levels, a GFB valve CANNOT be forced open by high boost!

The balanced piston design in a GFB valve uses boost pressure on either side to cancel out the forces. Therefore it doesn’t matter how much boost you run, you can be sure a Respons valve will deliver all of it to the engine.

Throttle response and boost recovery

GFB’s TMS (Turbo Management System) principle is based on an operating method that is different to all factory bypass valves, which can be summarised as:

A factory bypass valve is open until required to shut.

A GFB TMS valve is shut until required to open.

This difference in operating methods means that the GFB valve only vents when required, and only enough air to prevent compressor surge.

For example, during a gearshift it is possible to preserve a small amount of boost pressure for a short duration. Then, when the throttle is then re-opened, peak boost is reached faster than if all pressure is lost (as is the case with the factory valve that remains fully open too long).

Fits :

MITSUBISHI 3000GT VR-4 6G72 92-99 Z16A 210kw Petrol Engine AWD Coupe 10/92-03/98
MITSUBISHI Colt Ralliart All 4G15 06-on RG 113kw Petrol Engine FWD Hatchback 09/06-06/12
MITSUBISHI Colt Ralliart All 4G15 06-on RG 110kw Petrol Engine FWD Convertible 05/06-12/08
MITSUBISHI Eclipse 2G 4G63t 1995-1999 D3_A 157kw Petrol Engine AWD Coupe 12/95-04/99
MITSUBISHI Eclipse 2G 4G63t 1995-1999 D3_A 157kw Petrol Engine FWD Coupe 12/95-04/99
MITSUBISHI Galant VR4 E84A 6A12TT 92-96 HJ 110kw Petrol Engine FWD Hatchback 11/92-08/96
MITSUBISHI GTO Twin turbo 6G72 89-00 Z1_A 206kw Petrol Engine AWD Coupe 05/96-09/00
MITSUBISHI GTO Twin turbo 6G72 89-00 Z1_A 165kw Petrol Engine AWD Coupe 06/89-04/96
MITSUBISHI GTO Twin turbo 6G72 89-00 Z1_A 210kw Petrol Engine AWD Coupe 06/92-04/96
MITSUBISHI Lancer EVO I-III 92-96 CC 192kw Petrol Engine AWD Sedan 01/94-07/95
MITSUBISHI Lancer EVO I-III 92-96 CC 198kw Petrol Engine AWD Sedan 08/95-07/96
MITSUBISHI Lancer EVO I-III 92-96 CE9A 201kw Petrol Engine FWD Sedan 02/95-08/96
MITSUBISHI Lancer EVO I-III 92-96 CE9A 188kw Petrol Engine AWD Sedan 01/94-02/95
MITSUBISHI Lancer EVO I-III 92-96 CD9A 182kw Petrol Engine FWD Sedan 09/92-07/96
MITSUBISHI Lancer EVO I-III 92-96 CC 182kw Petrol Engine AWD Sedan 10/92-12/93
MITSUBISHI Lancer EVO IV-IX 96-07 CT9A 214kw Petrol Engine FWD Sedan 03/05-10/07
MITSUBISHI Lancer EVO IV-IX 96-07 CT9A 202kw Petrol Engine FWD Sedan 01/03-03/05
MITSUBISHI Lancer EVO IV-IX 96-07 CN9A 206kw Petrol Engine FWD Sedan 08/96-01/98
MITSUBISHI Lancer EVO IV-IX 96-07 CJ-CP_ 206kw Petrol Engine AWD Sedan 08/98-08/01
MITSUBISHI Lancer EVO IV-IX 96-07 CP9A 206kw Petrol Engine FWD Sedan 01/98-12/99
MITSUBISHI Lancer EVO IV-IX 96-07 CP9A 246kw Petrol Engine FWD Sedan 01/99-01/01
MITSUBISHI Lancer EVO IV-IX 96-07 CG, CH, CJ 195kw Petrol Engine AWD Sedan 03/04-12/05
MITSUBISHI Lancer EVO IV-IX 96-07 CT9A 194kw Petrol Engine FWD Sedan 03/01-03/03
MITSUBISHI Lancer EVO IV-IX 96-07 CT9A 206kw Petrol Engine FWD Sedan 03/01-03/03
MITSUBISHI Lancer EVO IV-IX 96-07 CG, CH, CJ 206kw Petrol Engine AWD Sedan 10/07-12/07
MITSUBISHI Lancer EVO X 07-on CJ 217kw Petrol Engine AWD Sedan 06/08-on
MITSUBISHI Lancer EVO X 07-on CZ4A 217kw Petrol Engine FWD Sedan 10/07-on
MITSUBISHI Lancer EVO X 07-on CJ 217kw Petrol Engine AWD Sedan 10/07-on
MITSUBISHI Lancer EVO X 07-on CJ 247kw Petrol Engine 4×4 Sedan 10/07-on
MITSUBISHI Lancer EVO X 07-on CJ 217kw Petrol Engine AWD Sedan 10/07-on
MITSUBISHI Lancer GSR 1.8 4G93 92-96 CD9A 141kw Petrol Engine FWD Sedan 09/92-08/94
MITSUBISHI Lancer GSR 1.8 4G93 92-96 CC 141kw Petrol Engine AWD Sedan 11/92-07/96
MITSUBISHI Lancer GSR 1.8 4G93 92-96 CD9A 182kw Petrol Engine FWD Sedan 08/94-02/96
MITSUBISHI Lancer Ralliart 4B11T 08-on CJ 177kw Petrol Engine AWD Sedan 10/08-on
MITSUBISHI Lancer Ralliart 4B11T 08-on CJ 177kw Petrol Engine AWD Hatchback 10/08-on
MITSUBISHI Legnum VR4 EC5A-EC5W 6A13TT 96-03 EC5W 208kw Petrol Engine AWD Wagon 04/96-12/02
DODGE Dodge Stealth 1992-2000 Z1_A 210kw Petrol Engine AWD Coupe 06/92-04/00
