turbosmart GenV WG40CG CompGate40 Compressed Gas 5psi Black

Description

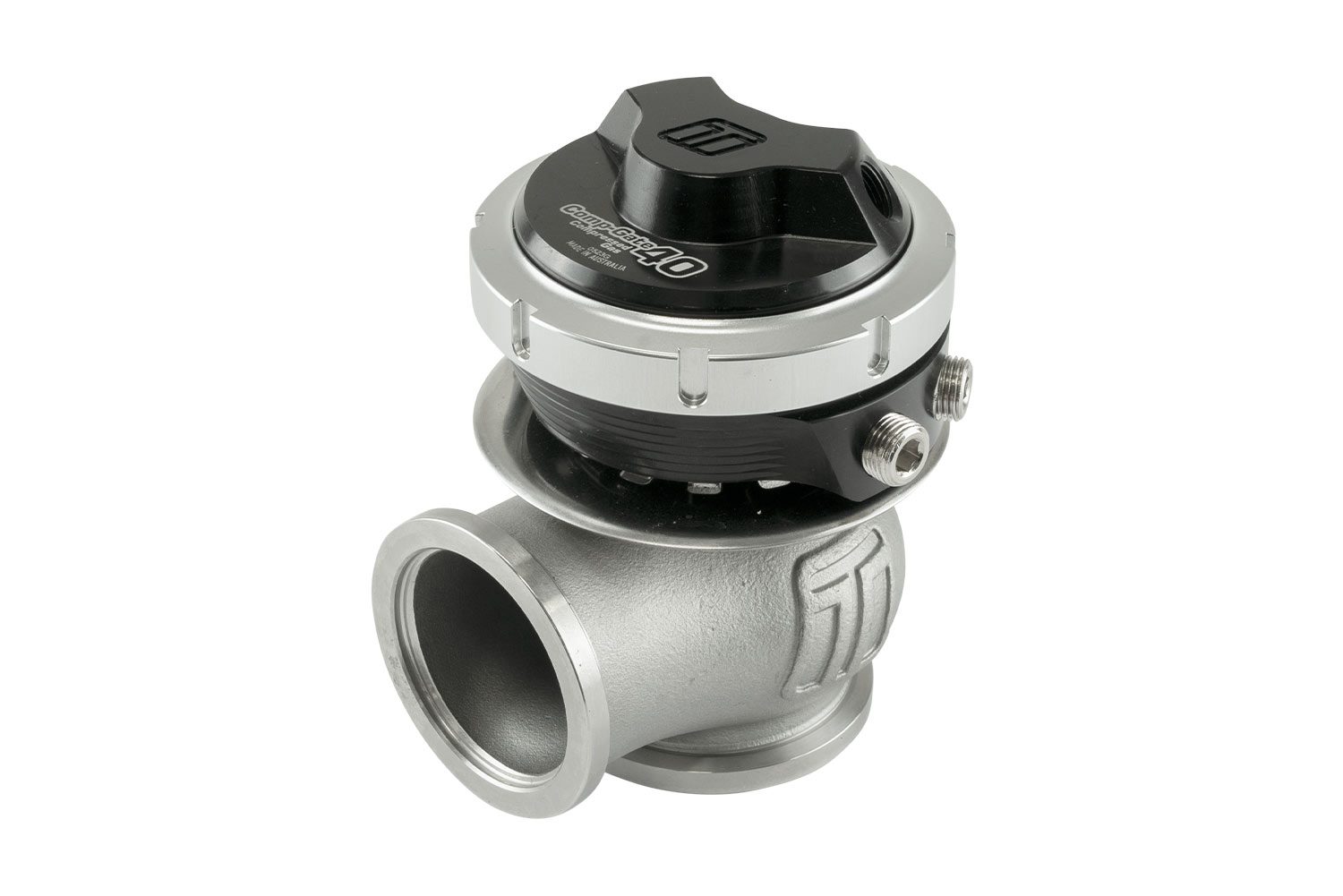

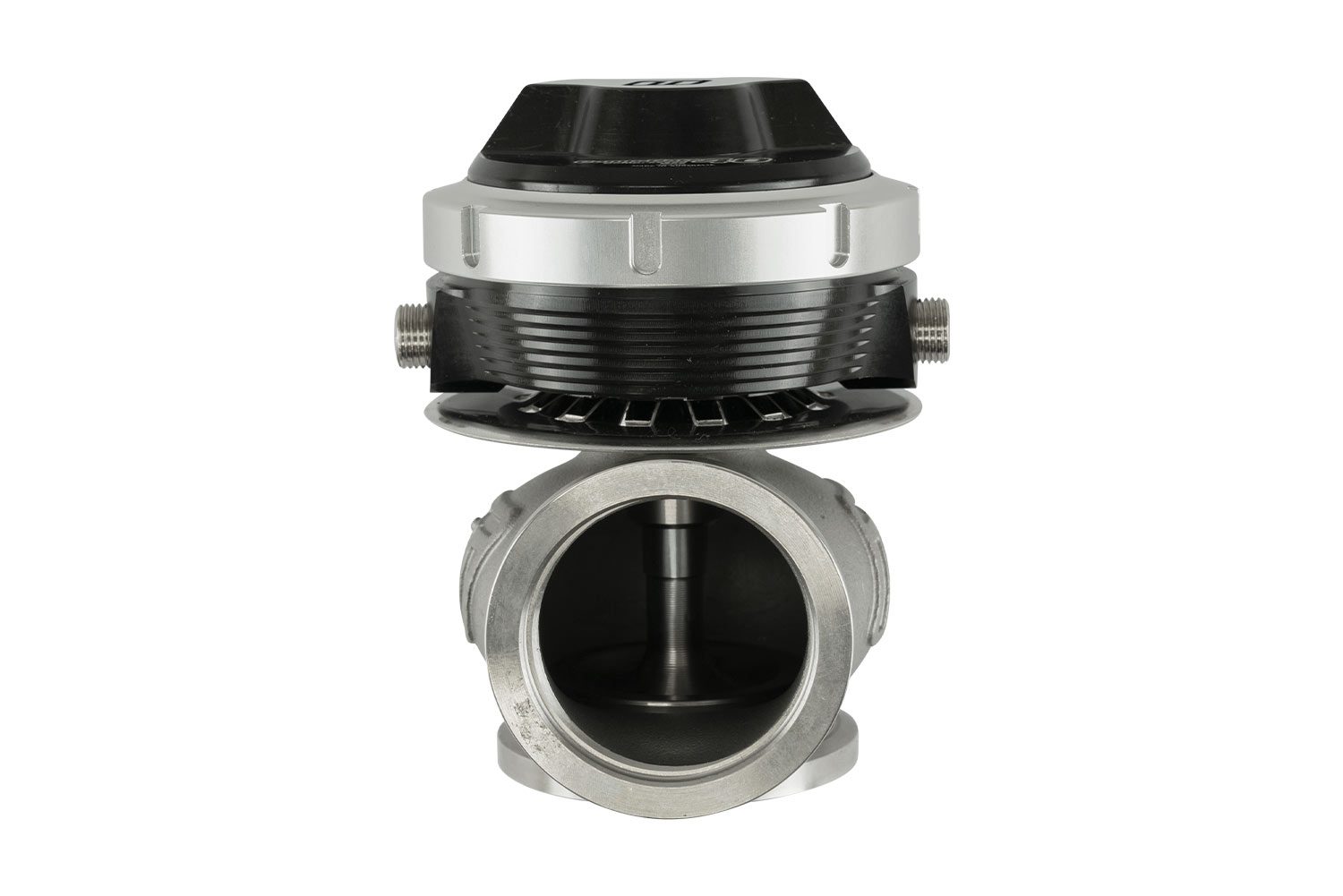

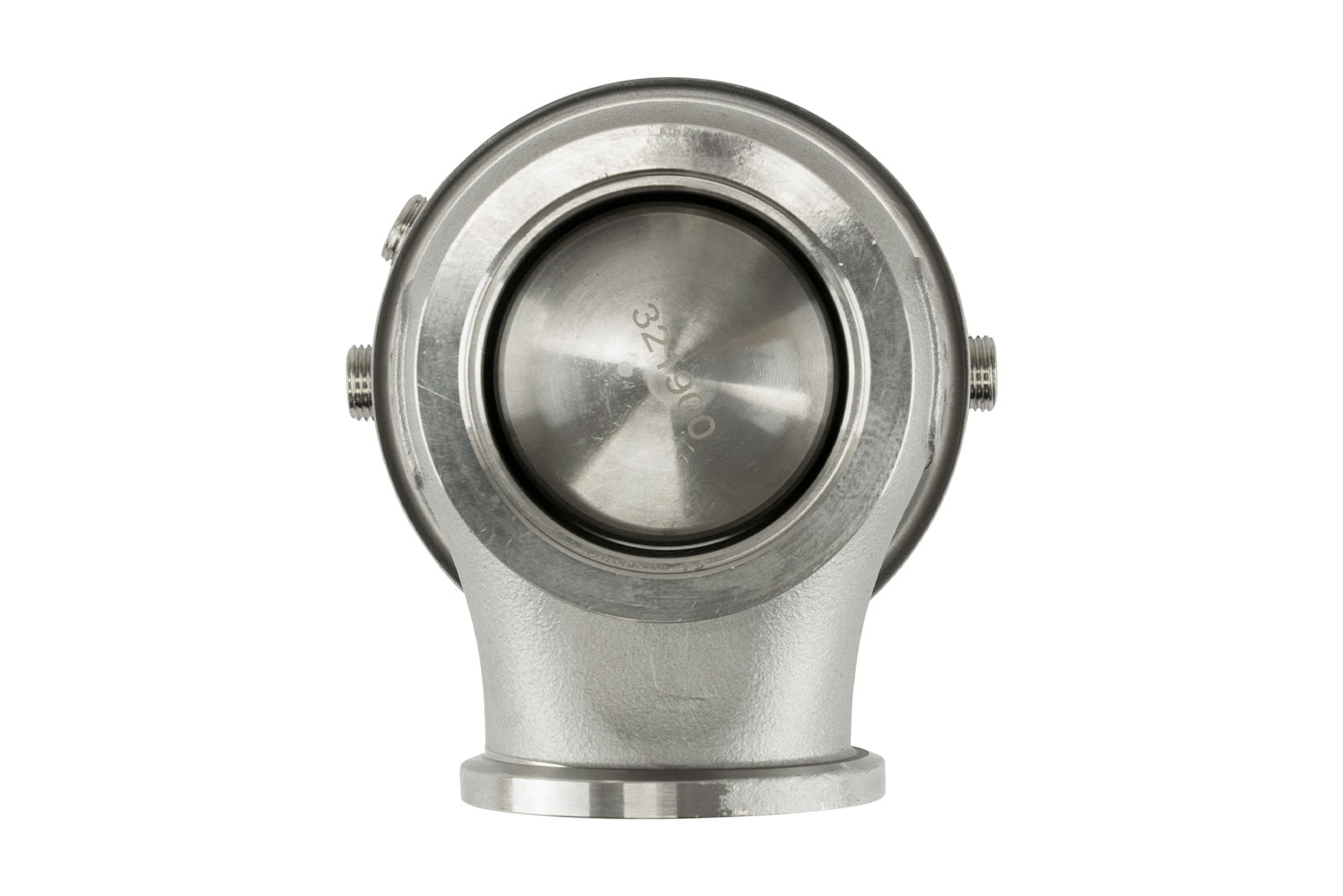

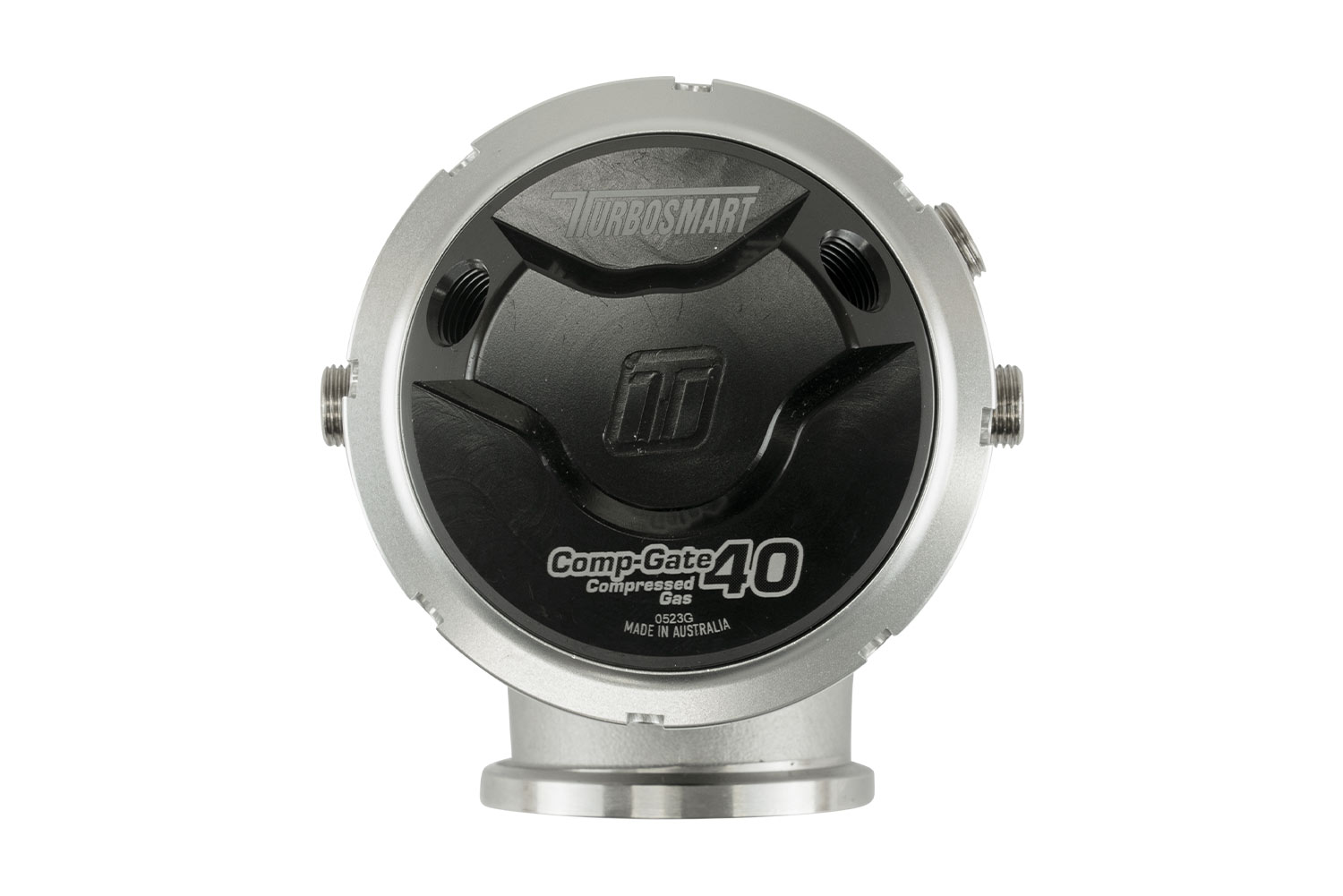

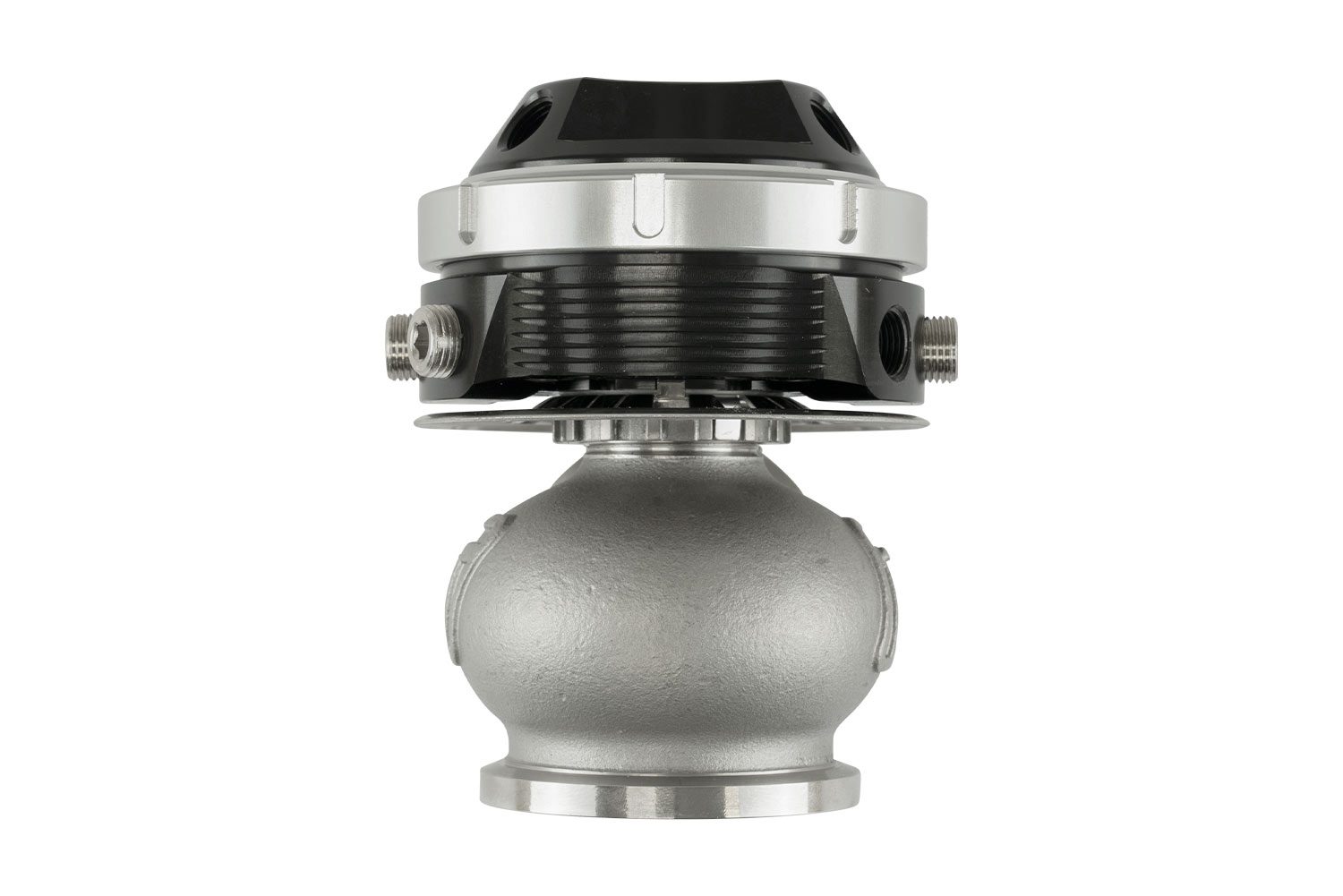

Turbosmart GenV WG40CG CompGate40 Compressed Gas 5psi Black

GenV CompGate40 CG for Compressed Gas and C02 External Wastegate is designed for control strategies that require a large tuning window and large pressure differentials from the top to lower actuator housings, whereas traditional actuators on poppet style gas can achieve around 2-3x base spring pressure, the CG / C02 Version is capable of extreme multiples of the base pressure through the use of additional reference signal, high-pressure gas and C02.

The GenV CG and C02 variants are equipped with an inverted diaphragm, which is capable of high-pressure and high-pressure differentials (top to bottom), facilitating large tuning windows and the large boost-bandwidth associated with Drag Racing, Rally and Rally RX systems.

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity. The GenV External Wastegate Range is CFD optimized and real-world validated in-house for maximum flow and thermal management. The GenV range has more features, options and performance than any other gate. and includes a variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8€³ NPT reference ports and are provided with the full range of available springs.

Options


Hall Effect Position Sensor Cap Upgrade

Features


Class Leading, Thermal Performance


Class Leading, CFD and Bench-Validated Flow Performance


Class Leading Fatigue Resistance


Nitronic 60 Valve Guide and High Temp 347 SS Body


17/7 PH Stainless Steel Springs


Liquid Actuator Cooling Option


Strap Type V-band clamps


User Adjustable Actuator Position


Modular Design for Actuator Interchangeability

Fitment Required

Fitment Requires Fabrication // Universal Product
Adjustable Product – Springs Options from 3psi to 5psi Available. Springs Pre-Fitted as per the description.

Please contact us to confirm EU stock before ordering. EU stocked products take approx 5€“10 days to receive. Non-EU stocked items may take 3€“4 weeks.
