AEM Electronics Oil/Fuel Pressure Gauge Up To 100 PSI Analog (Universal)

Description

AEM Electronics Oil/Fuel Pressure Gauge Up To 100 PSI Analog (Universal)

WHAT THE OIL PRESSURE GAUGE DOES
AEM’s 0-6.9BAR/0-100PSI Oil Pressure Gauge unites unsurpassed accuracy, speed and control with an easy to read, analog interface. The AEM analog gauge also offer a 0-5v analog output for use with data loggers and virtually any engine management system, such as the AEM EMS or FIC.

WHAT THE FUEL PRESSURE GAUGE DOES
AEM’s 0-6.9 BAR/100 PSI Fuel Pressure Gauge unites unsurpassed accuracy, speed and control with an easy to read, analog interface. The AEM analog gauge also offer a 0-5v analog output for use with data loggers and virtually any engine management system, such as the AEM EMS or FIC.

WHY YOU WANT ONE
– Oil Pressure Gauge
The 6.9BAR/100PSI Oil Pressure Gauge is a must for anyone with a performance engine and wants a metric faceplate. Knowing your exact oil pressure is critical, as a drop in oil pressure can signal internal engine troubles are a few moments away. Bearings can become damaged well before the light on your dash illuminates. The 320 degrees of resolution makes it easy to see when there’s even a quarter BAR change in pressure, giving you time to shut things down before damage occurs. The lightning fast needle movement is a result of a precision high speed electronic stepper motor making it one of the fastest and most accurate gauges available. A 7.5BAR brass sensor gives the gauge its accuracy. The backlighting is user adjustable to 7 colors, allowing users to easily match the AEM Oil Pressure gauge to most factory gauge clusters. Each gauge comes with interchangeable black & silver bezels and black and white gauge faceplates for multiple color combinations.

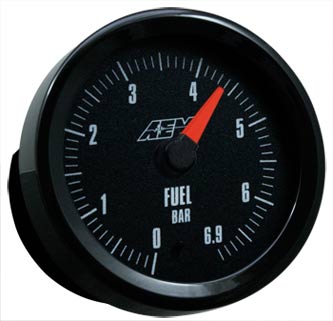

– Fuel Pressure Gauge
The 6.9BAR/100PSI Fuel Pressure Gauge is a must for anyone with an engine that has an adjustable fuel pressure regulator, AEM EMS or tuned ECU. Depending on the engine, a drop in fuel pressure can cause catastrophic damage as a lean condition at wide open throttle can occur quickly. The 320 degrees of resolution makes it easy to see when there’s even a quarter of a BAR change in pressure, giving you time to shut things down before damage occurs. The lightning fast needle movement is a result of a precision high speed electronic stepper motor making it one of the fastest and most accurate gauges available. A 7.5BAR brass sensor gives the gauge its accuracy. The backlighting is user adjustable to 7 colors, allowing users to easily match the Fuel Pressure gauge to most factory gauge clusters. Each gauge comes with interchangeable black & silver bezels and black and white gauge faceplates for multiple color combinations..

PRODUCT FEATURES
– Gauge Readout from 0 to 6.9BAR/0 to 100PSI
– Adjustable backlighting via a dial on the back of the gauge

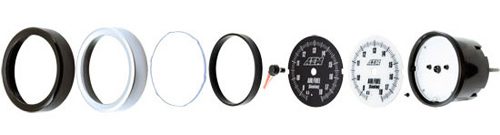

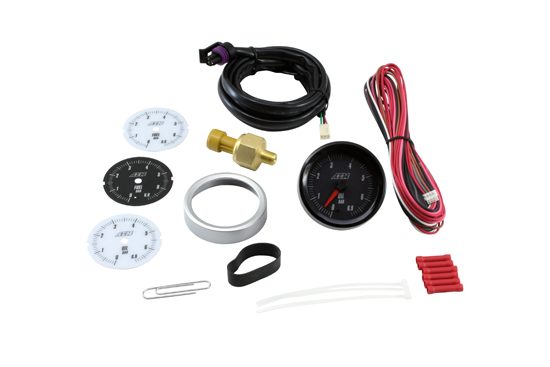

– Includes black and silver interchangeable bezels and white and black faceplates
– 320 degree viewing area for unsurpassed resolution
– Oil/Fuel gauge include AEM 15PSIG/7.5BAR brass sensor
– 0-5v analog output included for use with data loggers and virtually any engine management system.

PRODUCT VIDEO

AEM Information:

AEM 30-5133 Installation Manual
