SWAGIER – BMW E36 Steering Kit Adapter – Drifting

Description

SWAGIER – BMW E36 Steering Kit Adapter – Drifting

SWAG298

We offer a steering wheel kit for the BMW E36. Quick and easy installation makes it a relatively simple and highly effective solution for significantly increasing your car’s steering angle. The kit widens the wheel track by 60mm per side, for a total of 120mm on the axle. (This dimension allows for alignment of the wheel rim with the fender using commonly available body kits on the market.)

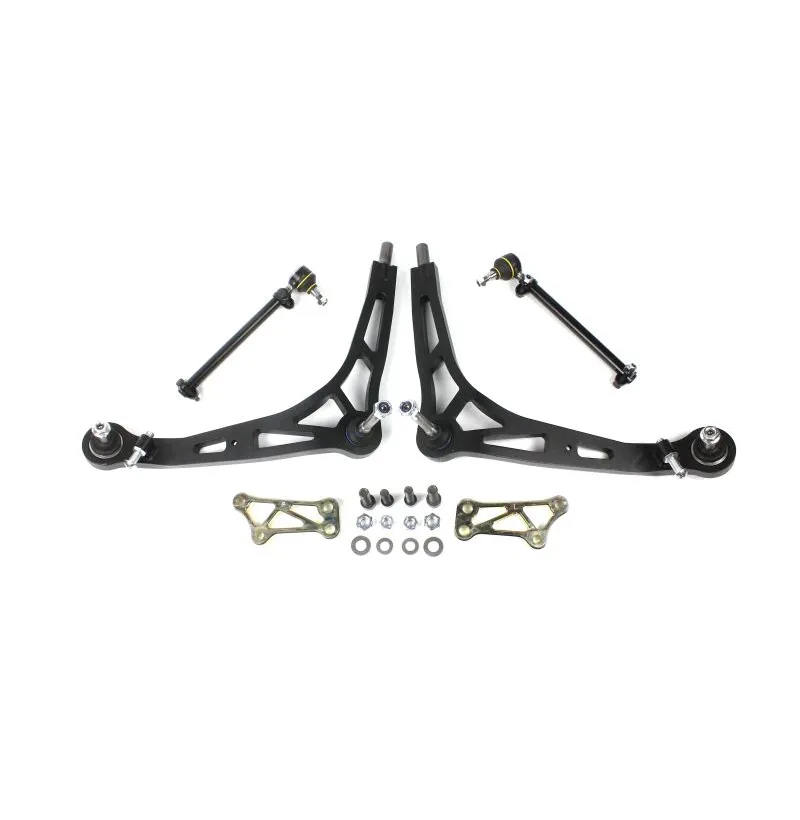

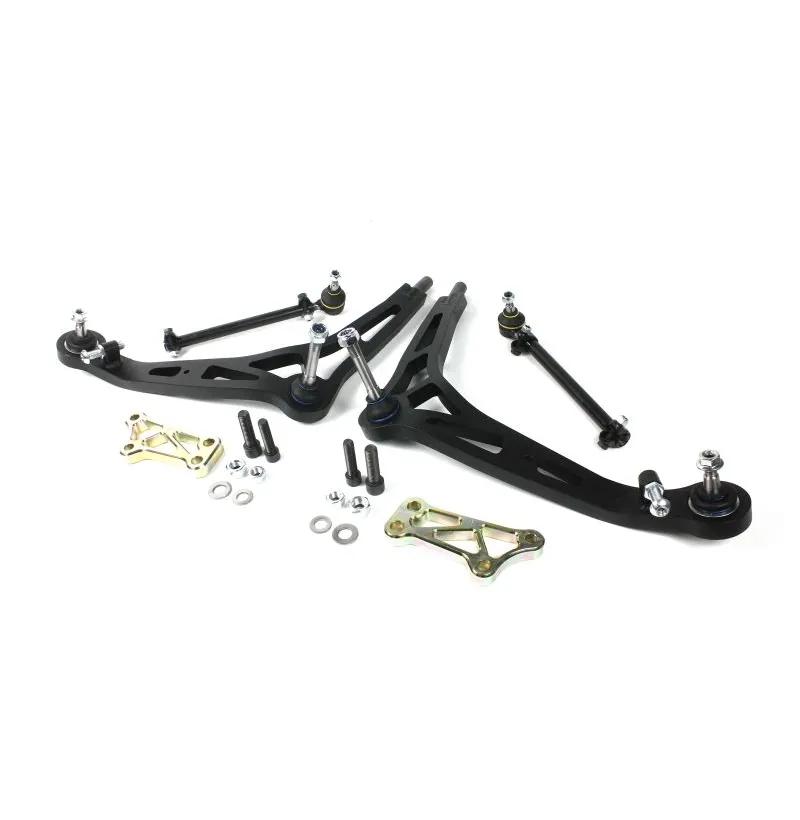

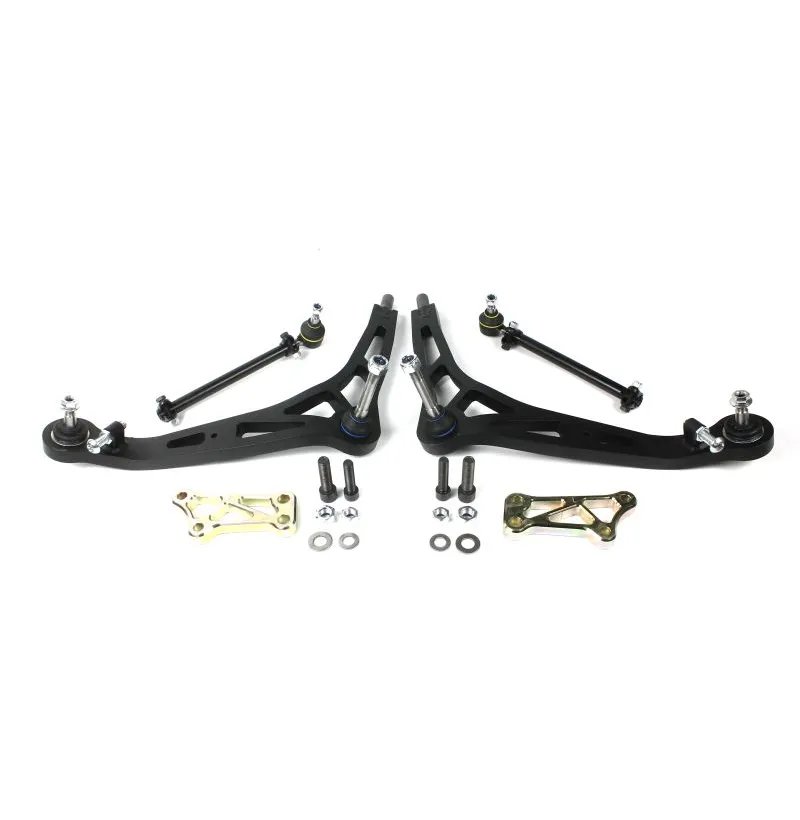

Set contents:

a set of wishbones with pressed-in Meyle pins and adjustable steering limiters
Meyle steering rod kit
set of adapters
a set of screws and nuts for mounting adapters
The wishbones have a milled cutout for mounting the stabilizer link bracket and welded-in, adjustable steering limiters.

During assembly you should:

shorten the steering rod and its end by 15mm per side
convergence should be set to approximately 20 minutes divergence per side (40 minutes total)
It is recommended to use an eccentric or adjustable control arm bushing (you can find them in our offer)
camber plates positioned inwards and towards the engine bulkhead or only inwards
The settings provided are our suggested settings. They have been tested extensively on various tracks. Following them will ensure aggressive handling, exemplary steering response, and excellent vehicle control.

The product is made in POLAND from S355 steel sheet. Cut, bent, and milled on CNC machines. In the final stage, the adapters were protected with a zinc coating, while the control arms were powder-coated black.
