Swagier BMW 3 Series E36 ABS Adapter Clamps

Description

Swagier BMW 3 Series E36 ABS Adapter Clamps

We offer adapters for additional calipers for BMW E36 series cars with disc brakes on the rear axle. The set consists of two adapters for the left and right side. Our product allows you to connect a hydraulic handbrake on the additional caliper and LEAVE the ABS sensor.

If you have any doubts about the fitment of the product and the components you wish to install using our adapter, please feel free to ask.

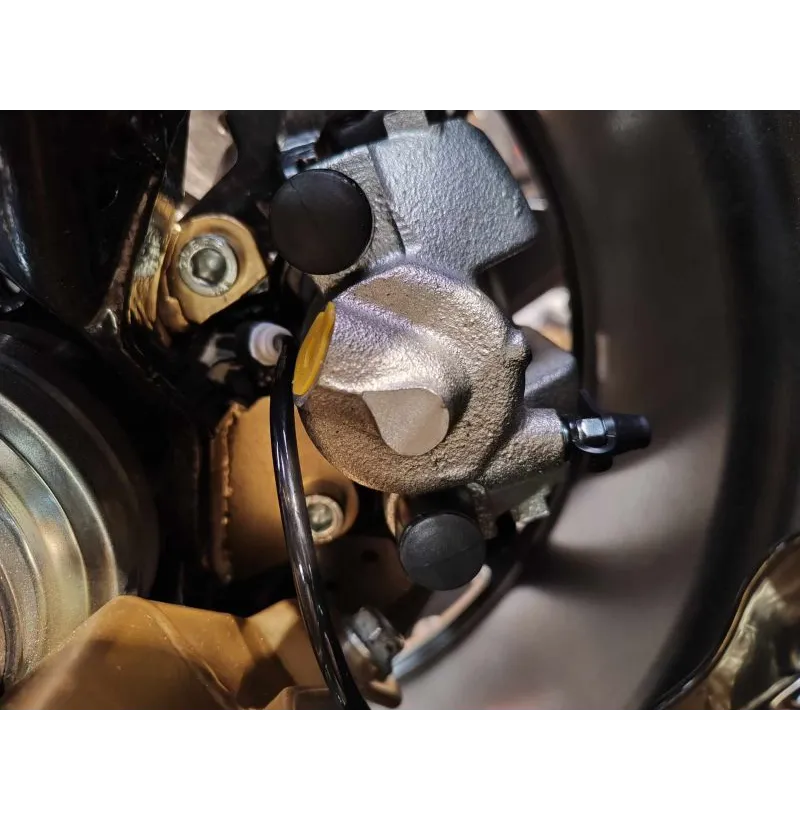

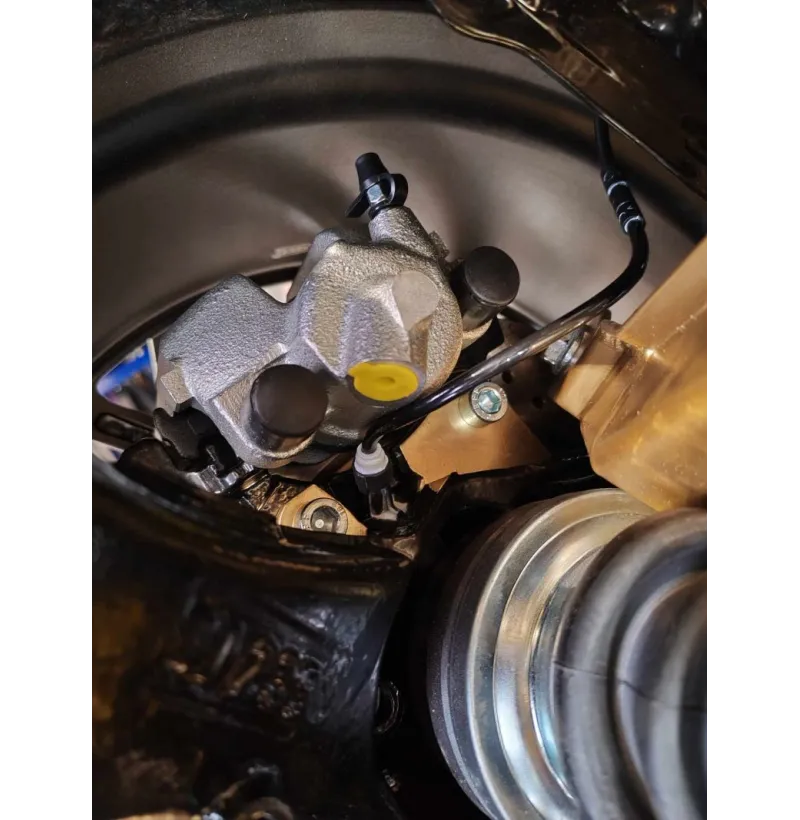

The adapter requires welding to the swingarm in the place where the ABS sensor is originally located. To weld it, the sensor must be dismantled. The adapter must be positioned and welded with the yoke, clamp and disc in place. This must be done methodically. After welding, everything must be dismantled and a place must be cut out for the sensor, which must be mounted rotated by 90` (as in the photo). There is no need to screw it in, the installed yoke will gently press it, which will prevent it from falling out.

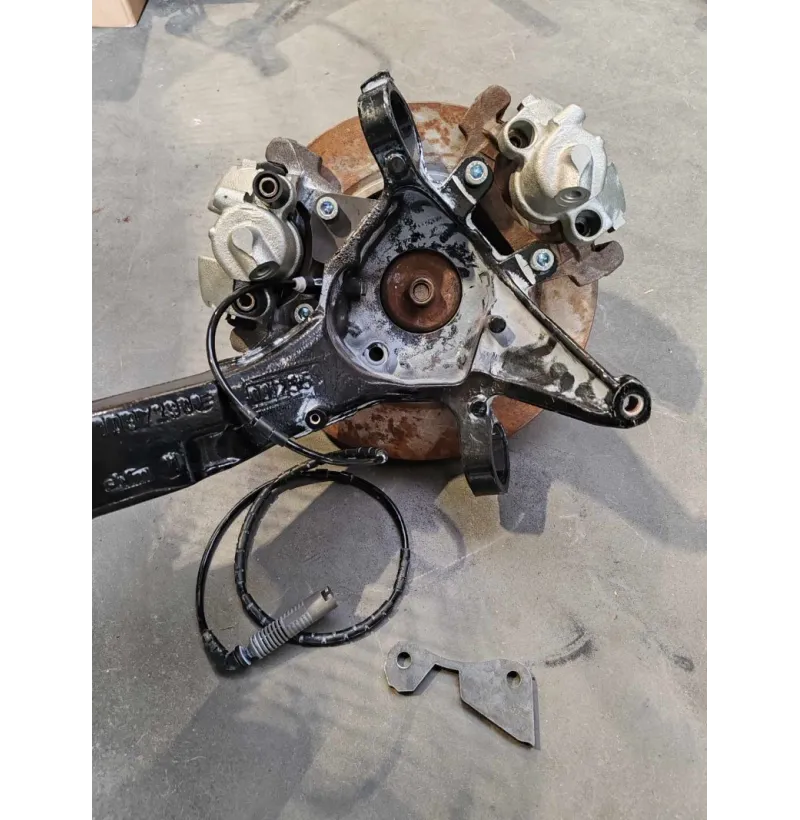

THE SAMPLE PHOTOS WERE TAKEN ON AN E46, but the wishbones are twin and the same assembly principle applies.

Our product is made in POLAND.

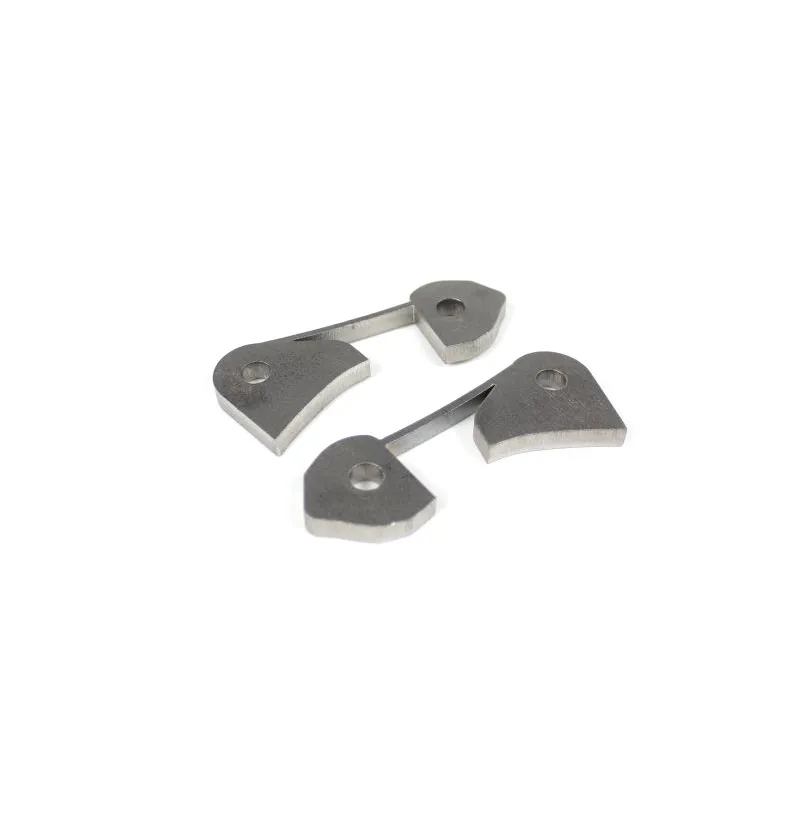

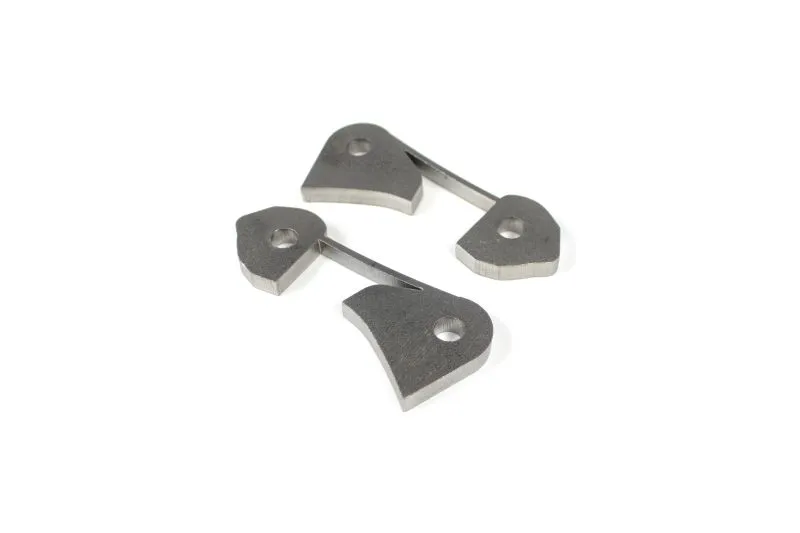

The adapters are cut with a professional laser and made of high-quality sandblasted steel (S355), 8mm thick.

*** Please allow 7 14 days delivery time for non stocked Swagier items. If unsure please contact us for ETA via Whatsapp Button / Email ***
