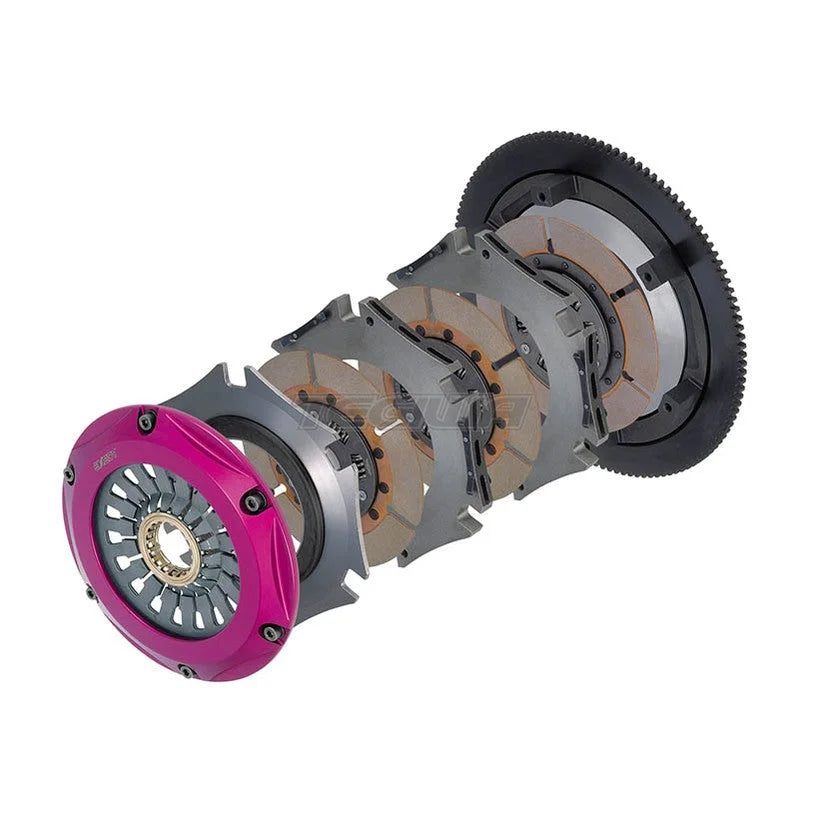

Exedy – Hyper Series HR Multi Triple Clutch Kit Mitsubishi Evo X 4B11T 07-16

• KIT: MM063HB
• PartNoDesc: Hyper Multi Triple
• Bearing required: BRG601
• Outer Diameter (mm): 200
• Supplementary Article Info: Without releaser
• Disc Facing: Cerametallic
• Pull Type: Yes
• Push Type:
• Sprung Centre Disc?: Yes
• Clamp Load (N): 11800
• Torque @ Flywheel: 1080 lb.ft./1460 Nm
• Torque @ Wheels: 870 lb.ft./1170 Nm

For high-powered applications, the EXEDY multi plate clutch is capable of handling a variety of road and motorsport applications.

All Hyper Series clutches come with a chromoly steel flywheel and forged aluminium clutch cover, which has no clamp load deflection as found in a pressed metal cover.

The EXEDY Hyper Multi clutch is available as either a twin plate (Hyper Multi Twin) or triple plate (Hyper Multi Triple).

Suitable For

• Road
• Track Day
• Circuit Racing
• Time Attack
• Drifting
• Drag Racing

Hyper Multi Triple

Main Benefits

• Capable of handling the highest torque capacities associated with motorsports.
• Self-levelling intermediate plate design reduces gearbox rattle and increases the disengagement performance (PAT.).
• Unique intermediate plate design increases heat resistance which improves clutch life.
• 20 to 30% reduction in inertia over the original equipment part.

Pull Type Clutch Cusioning Function (PAT.)

The cushion function is an innovation unique to EXEDY. The half engaged zone is expanded as a result of a decrease in rigidity of the pivot ring. Ideal pedal effort is achieved as a result of a longer lever ratio of the diaphragm spring coupled with the cushion reaction force.

*Applies to Pull Type clutch covers only.
