AEM 22 Channel CAN Sensor Module, Analog & Frequency to CAN Converter Module, Incl. Module for Converting 4 0-5V Analog Inputs, 4 Temp Inputs, 4 Selectable Analog Inputs (0-5V, Thermistor or RTD), 6 Digital Inputs, Tach Input, 2 VR (Frequency) Inputs, Fuel Level Input, IP65 Enclosure, Wiring Harness w/ 36″ Flying Leads

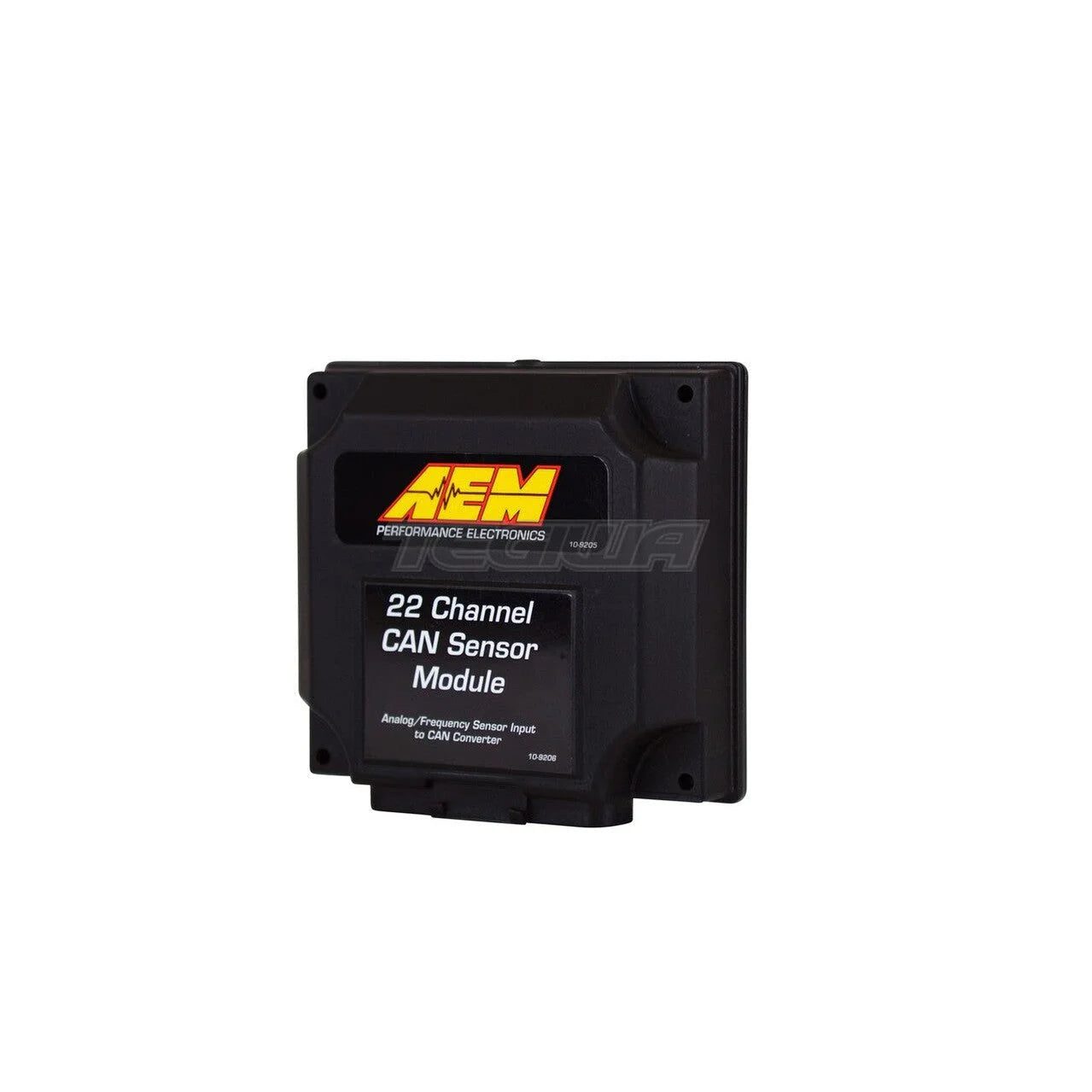

AEM’s 22 Channel CAN Sensor Module (PN 30-2212) converts analog, digital and frequency inputs into an AEMnet CAN bus signal that can be transmitted to the CD-5 Carbon and CD-7 Digital Dashes. This expansion module provides a way for users with carbureted vehicles to add a CD Digital Dash Display and lets users with existing CAN-based devices add more channels to the display for viewing and/or data logging (data logging requires CD-5L Carbon or CD-7L logging Dashes). The 22-Channel CAN Sensor Module is compatible with the CD Dashes only; it will run in parallel with 3rd party CAN devices on the CD dashes but it is currently not compatible with AEM’s AQ-1 Data Logger, Series 2 or Infinity ECUs, or 3rd party ECUs or loggers.

WHAT YOU GET
The 22 Channel CAN Sensor Module includes four 0-5v analog inputs, four Temp inputs, four user-configurable inputs for 0-5v, Temp (including RTD), a dedicated fuel level input, six configurable digital inputs or frequency-based inputs for switched or duty cycle, a Tach input and two VR inputs for crank, wheel or driveshaft speeds. A harness is included with pre-pinned, 36-inch color-coded wires to connect inputs, and a DTM-style AEMnet cable to connect to a CD-5 or CD-7 Carbon Dash. Users can select the CAN speed delivery rate.

• Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
• Perfect for users with carbureted vehicles who want to add a CD Dash display
• Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
• Daisy chain two Modules together for additional channels
• IP65-rated enclosure is ‘dust tight’ and water resistant
• Wiring harness included with 36-inch flying leads and pre-wired CAN cable
• Four dedicated 0-5V Analog inputs
• Four Temperature (thermistor) inputs
• Four user-configurable Analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
• One dedicated Fuel Level input (0 to 250 ohm range)
• Six configurable Digital or Frequency inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
• One Tach input, trigger when low, 12v internal Pull Up
• Two VR Pair Frequency inputs (crank, wheel or drive shaft speeds)
• Jumper selectable CAN bus speeds, 250k,500k,1M
• Jumper selectable terminating resistor
• Jumper selectable header length, 11bit or 29 bit
• Dimensions: 4.7” L x 4.3” W x 1.4” H (not including connector)
• Weight: 6.4oz / 180g
