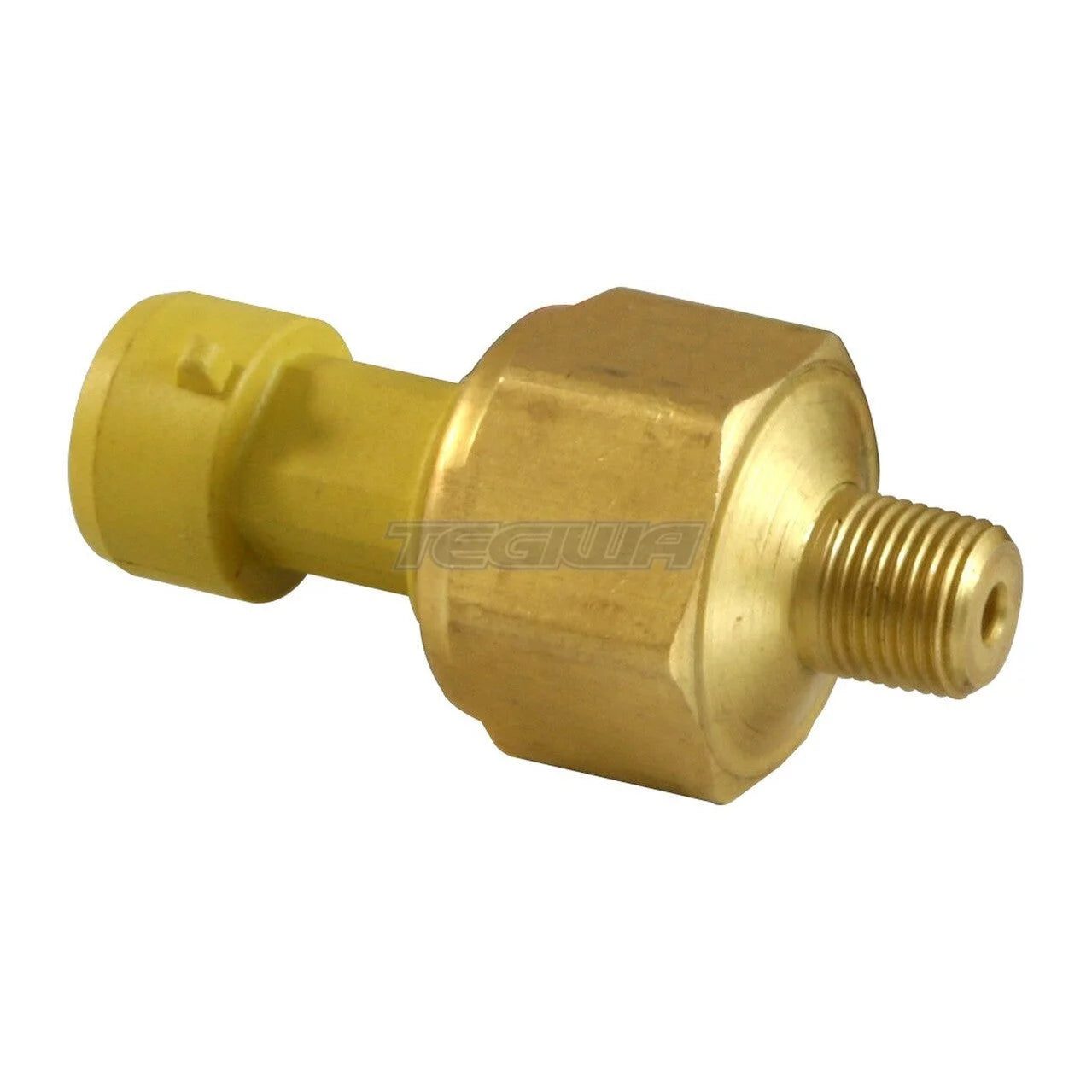

AEM – 75 PSIa Or 5 Bar Brass Sensor Kit Brass Sensor Body 1/8″ NPT Male
SKU: AEM-30-2131-75
AEM – 75 PSIa Or 5 Bar Brass Sensor Kit Brass Sensor Body 1/8″ NPT Male
Description:
AEM 75 PSIa or 5 Bar Brass Sensor Kit. Brass Sensor Body. 1/8″ NPT Male Thread. Includes: 75 PSIa or 5 Bar Brass Sensor, Connector & Pins
Absolute (PSIa) Brass Pressure Sensors
AEM offer high quality brass PSIa sensors in 30(2BAR), 50 (3.5BAR) and 75 (5BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.
Which Pressure Sensor is right for you?
There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:
Brass Pressure Sensor = Ruler
Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen.
Example: Brass Pressure Sensor used for a Boost Gauge – Reference/Information for knowing manifold pressure, not for ECU calibration.
Stainless Pressure Sensor = Caliper
Use a SS Pressure Sensor where you need exact details of the pressure.
Example: MAP Sensor information for the ECU – Calibration/crucial information for the ECU.
- Brass sensors accurate to within 3% of full scale (pressure sensors)
- High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
- Connector and pins included
- Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -40C to 105C / -40F to 221F
- Burst Pressure: 150PSI
- Response Time: < 1ms
- Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Sensor Body: Brass
- Wetted Materials: 304L & 316L Stainless Steel
- Thread: 1/8″ NPT Male Thread
- Weight: < 85 Grams
- Supply Current:
- Output: .5 to 4.5Vdc Linear
- Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
- Includes: 75 PSIa or 5 Bar Brass Sensor, Connector, Pins & Pin Lock
Skunk2
Founded in 1994, Group-A Engineering has established itself as leader in providing solutions and developing class leading racing and performance products for the automotive and powersports aftermarket.
As we believe that ‘Racing Improves the Breed’, Group-A Engineering has worked and continues to work closely with numerous Tier1 Motorsports and R&D groups. Our products, as well as our direct and indirect participation in professional motorsports has led to numerous wins and championships in NHRA, SCCA Pro, IMSA, FIA, as well as records in Hillclimbing and Landspeed Racing to name a few.
Group-A Engineering is headquartered in a 36,000 sq ft state of the art development and testing facility located in Norco, California. The knowledge and experience gained from motorsports combined with innovative product design, an extensive understanding of manufacturing processes, materials, computer aided engineering and supply chain management is what allows us to deliver the highest possible customer value in terms of price, quality, and performance. Additionally our ethos demands that our work and our products are backed by industry leading warranty and customer
Price:
€117.00€95.12 Inc VATExcl VAT
€117.00€95.12 Inc VATExcl VAT
Delivery time 4+ weeks
