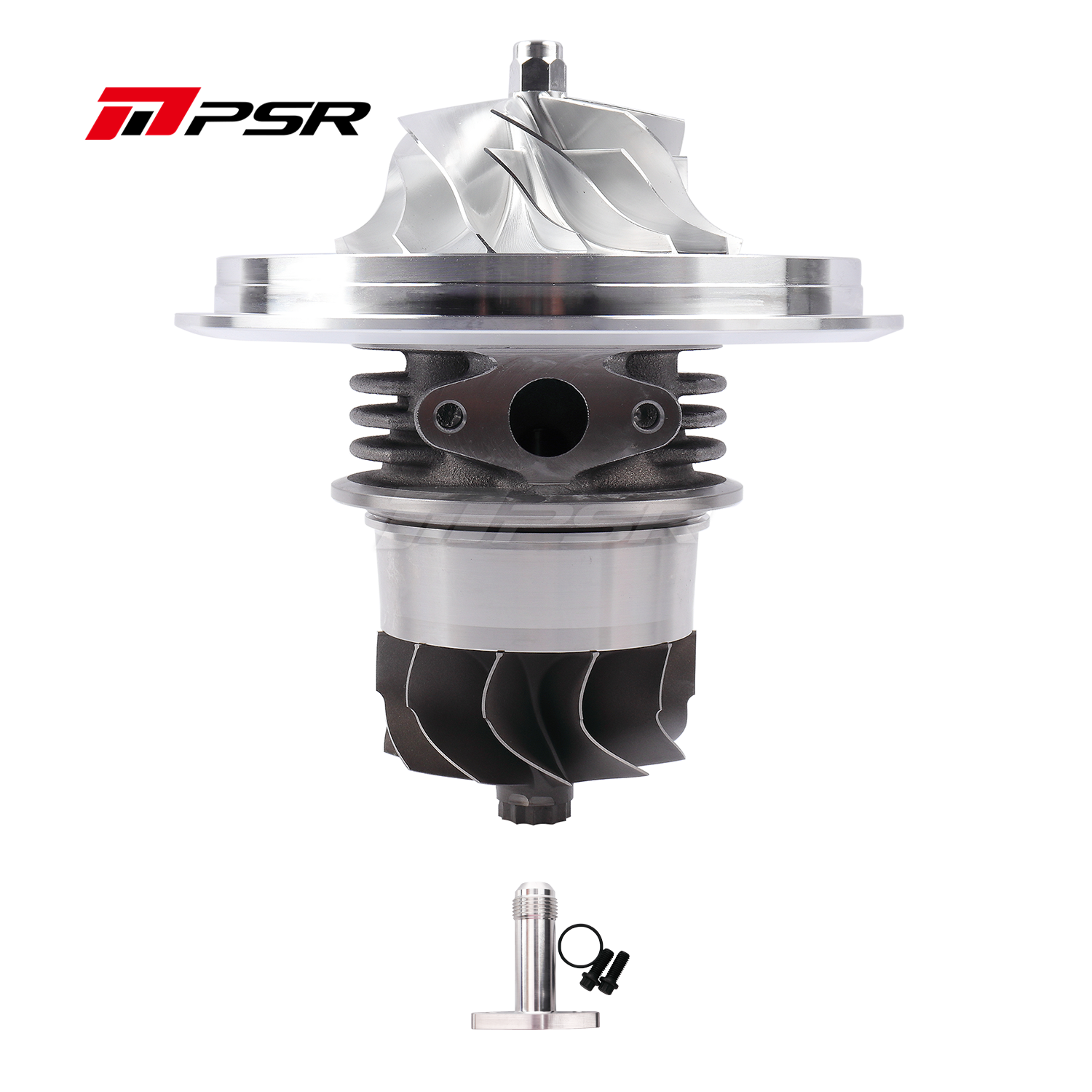

Pulsar Turbo – 7685E Ball Bearing Turbo UP to 1500HP
SKU: PSR-122108002
Pulsar Turbo – 7685E Ball Bearing Turbo UP to 1500HP
7685E Ball Bearing -[PSR-122108002]
Description:
- Billet Compressor Wheel: 83x 110.5mm, 7+7 Blade
- Turbine Wheel: 85 x 89.5mm, 11 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet
- Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
- The internal oil feed port is 0.9mm(An oil restrictor is not needed)
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil Drain: -12AN
| Weight | N/A |
| Dimensions | N/A |
| Compressor Cover Option | Standard, T51R MOD, Without compressor housing |
| Turbine Housing Option | T4 Divided 1.28A/R, Dual V-Band 1.15A/R, Dual V-Band 1.28A/R, Without turbine housing |
Price:
€1,371.93€1,115.39 Inc VATExcl VAT
€1,371.93€1,115.39 Inc VATExcl VAT
Available on backorder
Description
Pulsar Turbo – 7685E Ball Bearing Turbo UP to 1500HP
7685E Ball Bearing -[PSR-122108002]
Description:
- Billet Compressor Wheel: 83x 110.5mm, 7+7 Blade
- Turbine Wheel: 85 x 89.5mm, 11 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet
- Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
- The internal oil feed port is 0.9mm(An oil restrictor is not needed)
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil Drain: -12AN
| Weight | N/A |
| Dimensions | N/A |
| Compressor Cover Option | Standard, T51R MOD, Without compressor housing |
| Turbine Housing Option | T4 Divided 1.28A/R, Dual V-Band 1.15A/R, Dual V-Band 1.28A/R, Without turbine housing |
Additional information
| Weight | 6.5 kg |
|---|---|
| Show Universal Products? |
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
This is an universal product.Please note that modifications might be needed in order to fit this part in your specific car.
-
Description
Description
Pulsar Turbo – 7685E Ball Bearing Turbo UP to 1500HP
7685E Ball Bearing -[PSR-122108002]
Description:
- Billet Compressor Wheel: 83x 110.5mm, 7+7 Blade
- Turbine Wheel: 85 x 89.5mm, 11 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet
- Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
- The internal oil feed port is 0.9mm(An oil restrictor is not needed)
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil Drain: -12AN
Weight N/A Dimensions N/A Compressor Cover Option Standard, T51R MOD, Without compressor housing
Turbine Housing Option T4 Divided 1.28A/R, Dual V-Band 1.15A/R, Dual V-Band 1.28A/R, Without turbine housing
-
Additional information
Additional information
Weight 6.5 kg Show Universal Products? -
Reviews (0)
Reviews
There are no reviews yet.
-
Fitments
THIS PRODUCT FITS ON THE FOLLOWING CAR MODELS:
This is an universal product.
Please note that modifications might be needed in order to fit this part in your specific car.
