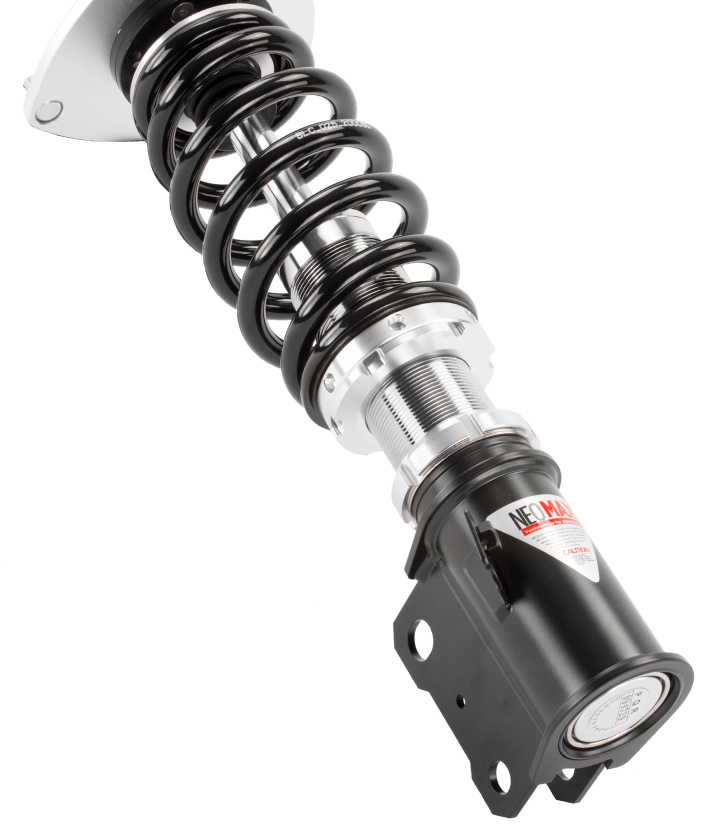

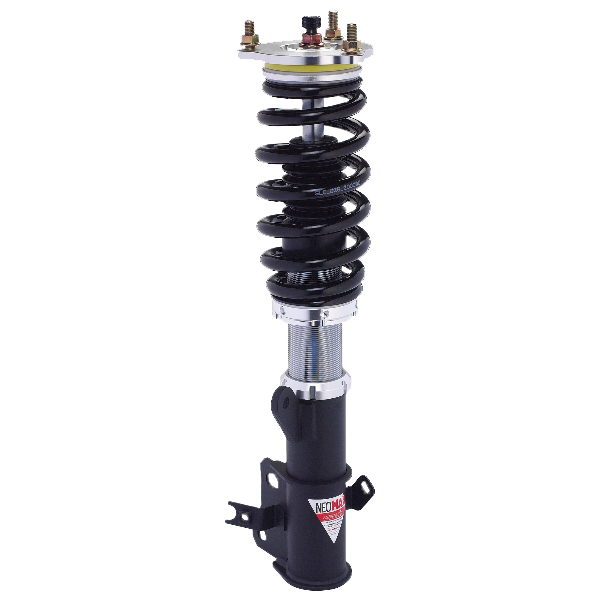

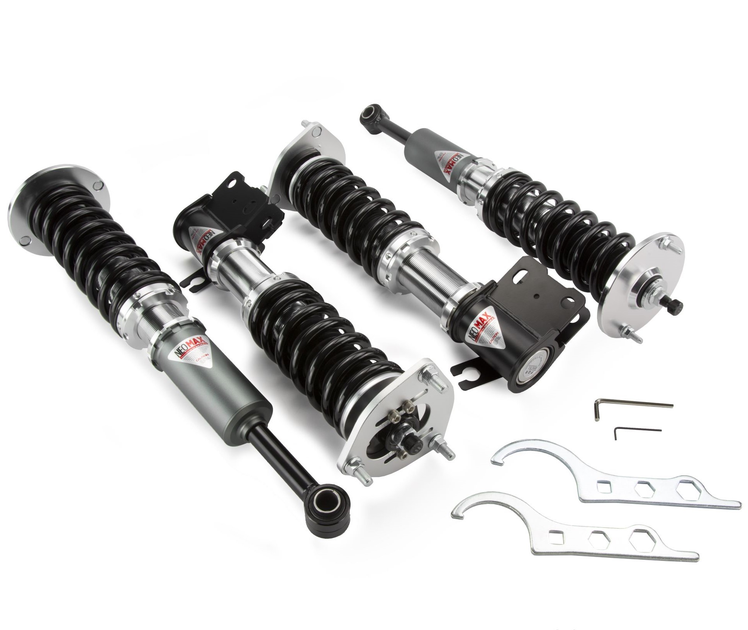

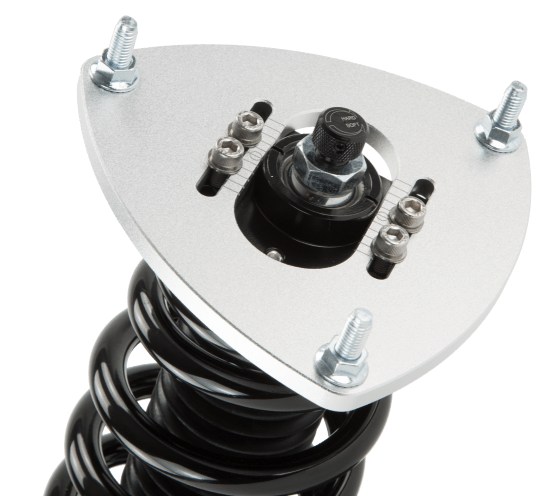

Silvers Neomax Coilovers – SUBARU IMPREZA 2001-2006

Description

The Silvers NeoMAX Impreza 01-06 kit is a Silver’s NeoMAX street tuned coilover kit for the Subaru Impreza 2001-2006, with 24 levels of damping adjustment and 8kg front / 6kg rear springs.

Key features of the Silvers NeoMAX Impreza 01-06

• NeoMAX street tuned coilovers
• 24 way damping adjustment
• Fully height adjustable via the lower mount
• Mono-tube, 44mm linear piston
• 52mm carbon steel shock body
• SAE9252 cold-bent springs
• Spring rates 8K front / 6K rear
• SKU: SS2002-N

Specifications

Damping and springs

The Silvers NeoMAX Impreza 01-06 kit uses a mono-tube shock design with a 44mm linear characteristic piston and IP F.A. 5W damper oil, adjustable through 24 levels. The springs are cold-bent from high strength SAE9252 steel.

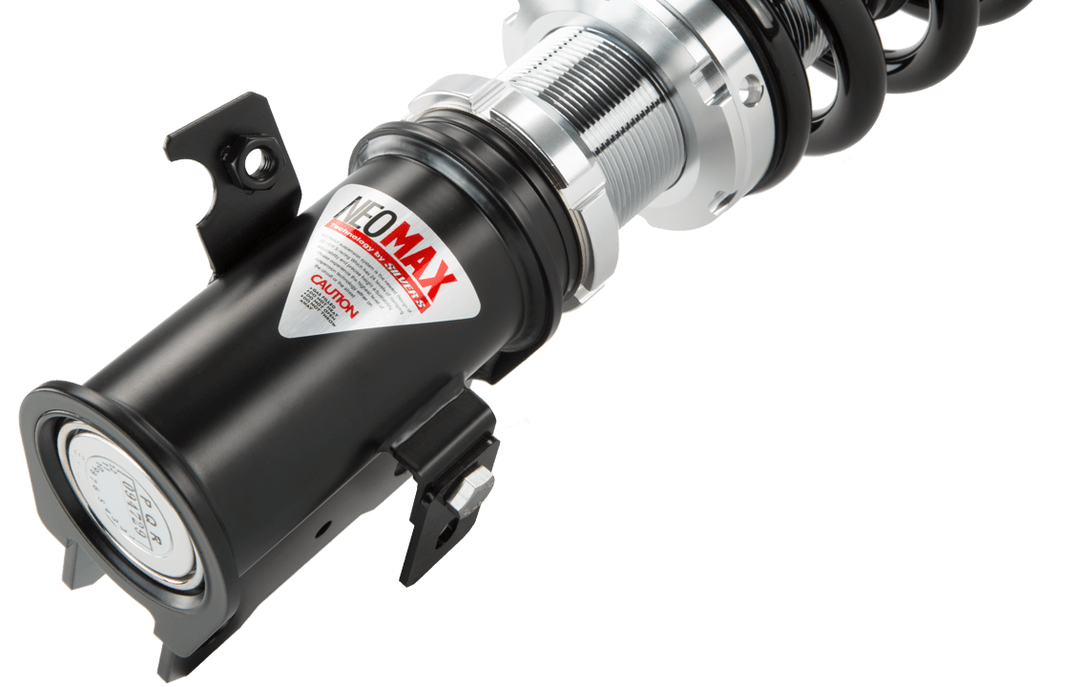

Height adjustment

The Silvers NeoMAX Impreza 01-06 coilovers are fully height adjustable via the lower bracket, so ride height changes without moving the spring perch or giving up shock travel. Loosen the lower locking ring and rotate the coilover to set ride height, or to adjust weight distribution for corner balancing on track.

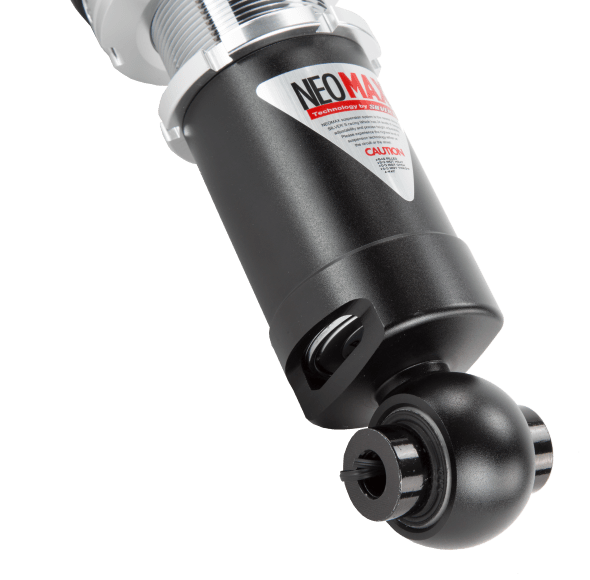

Construction

The shock bodies of the Silvers NeoMAX Impreza 01-06 kit are made from JIS G3445-STKM13C carbon steel, 52mm seamless tube, and every shock is hand assembled and dyno tested so damping and compression valving are within 5% side to side. Hardened, chrome plated steel shafts resist bending under heavy loads, and the powder painted steel lower brackets take the factory brake line and ABS line holders.

Locking collars

The lower spring perches have dimples instead of slots, so the spanner does not slip when adjusting preload. That makes setting up the coilovers quicker and easier.

Have coilovers fitted by a competent suspension specialist, and get a full wheel alignment after setting the ride height. Check the locking rings and top mount nuts again after the first few drives, and keep the threads clean.

If you are asking us about this item, quote the SKU SS2002-N so we can match the exact part.

Related Silver’s products

See also: SILVERS NeoMAX MITSUB. LANCER EVO 4/5/6 (CP9A/CN9A) 1995-2000, SILVERS NeoMAX MITSUBISHI. LANCER EVO Coilovers ( Evo 7/8/9 CT9A) 2001-2008, Silvers Neomax Coilovers – SUBARU IMPREZA GC8 WRX/STI 98-00.

Check the Fitments tab, model and body type before ordering, or contact us with your vehicle details.
