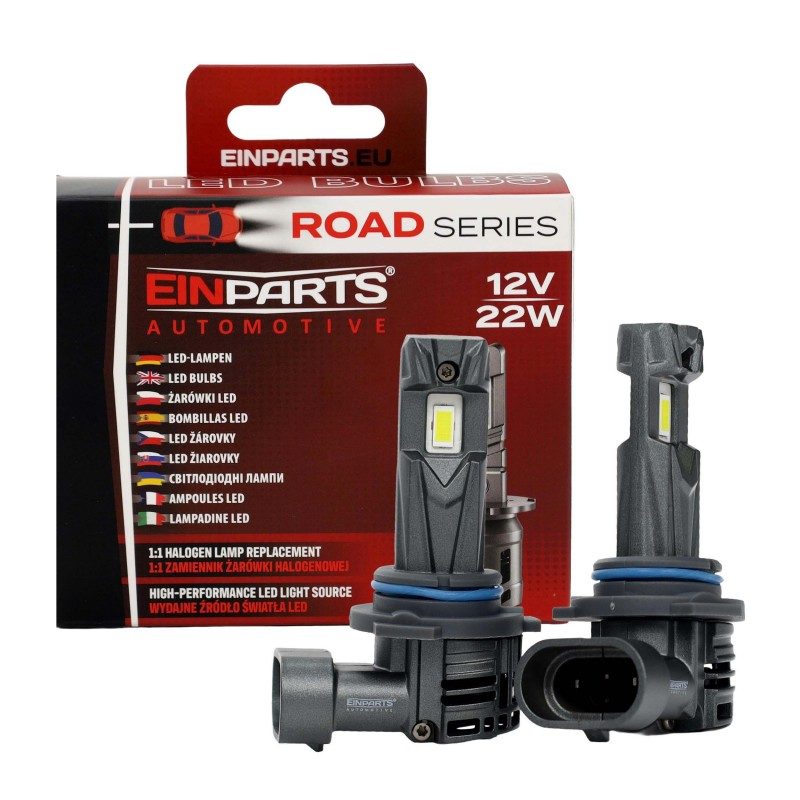

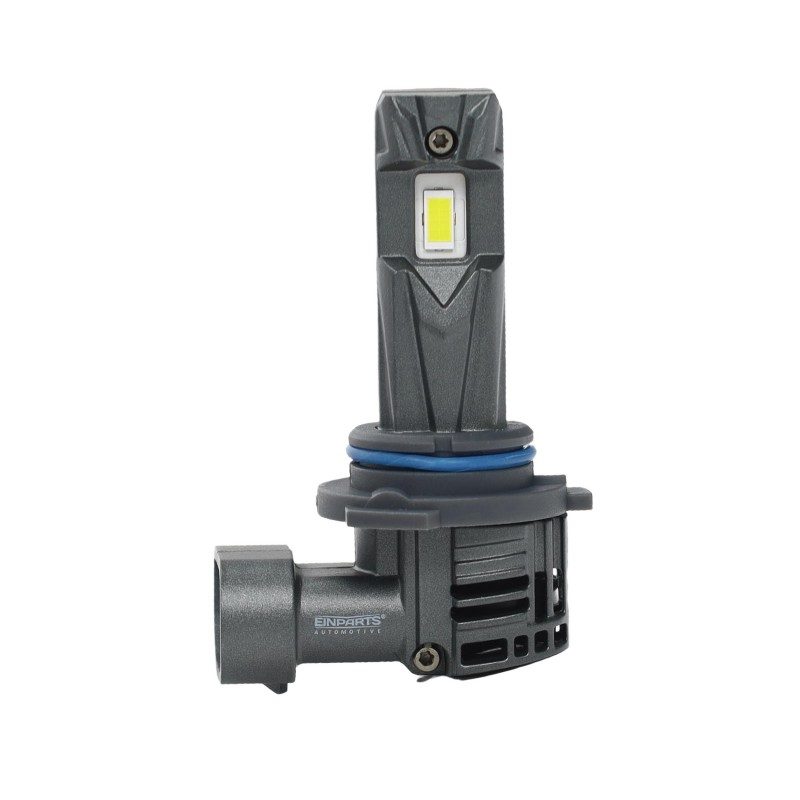

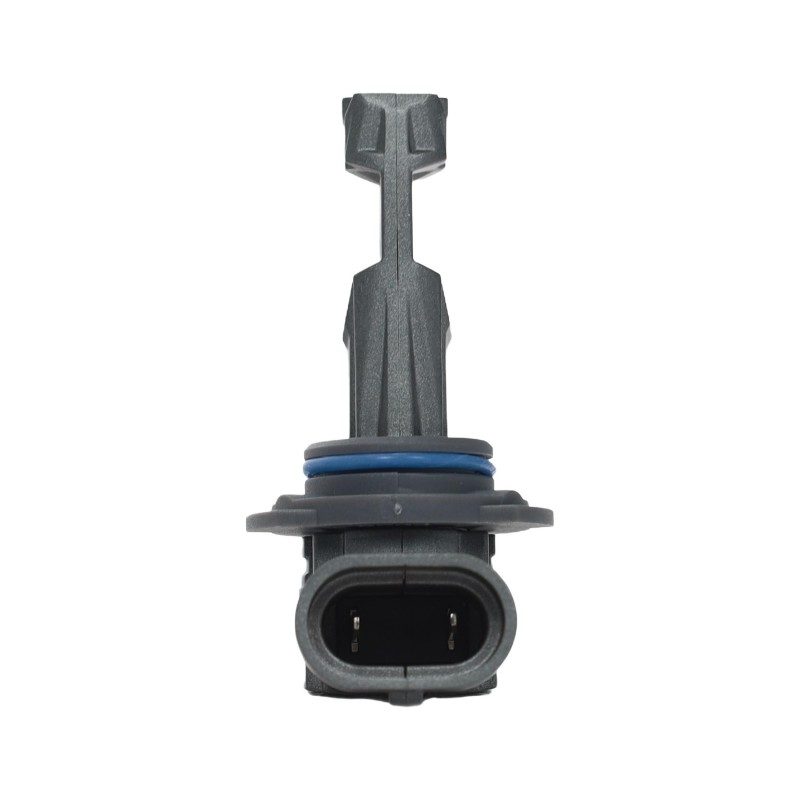

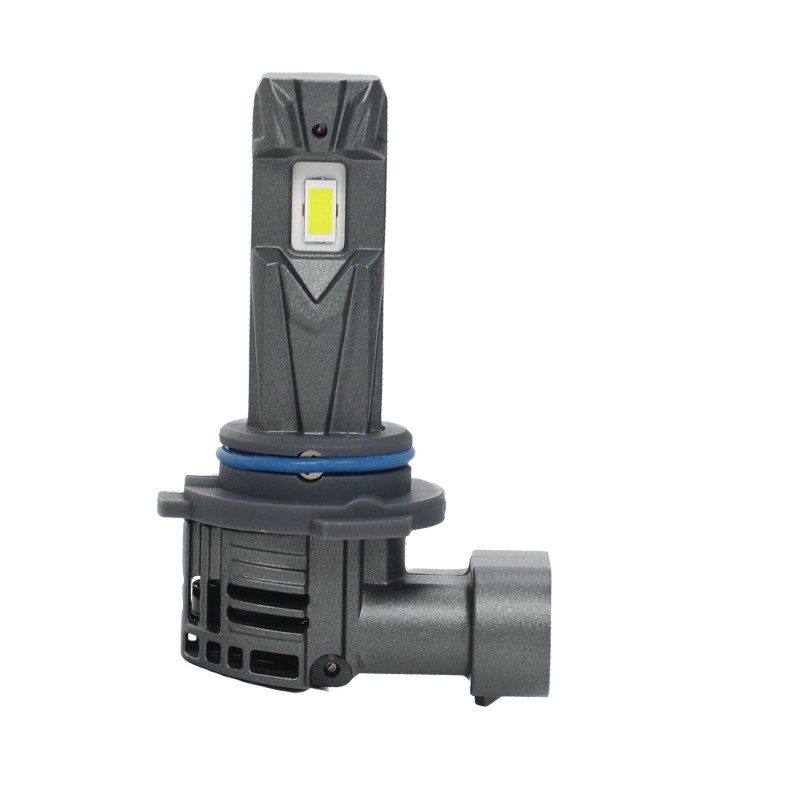

EINParts – LED Bulbs HB4 R-Series

EPLH146 LED Bulbs HB4 9006 ROAD SERIES Plug&Play 2700 lm 6500K

LED Bulbs HB4 9006 ROAD SERIES have been designed as a modern replacement for traditional HB4 halogen bulbs. They provide efficient, white LED light with a colour temperature of 6500K and are intended for lamps using the standard HB4/9006 fitting.

The operating voltage range of DC 9–18V allows the bulbs to be used in vehicles with a 12V system. The appropriate arrangement of the diodes maintains a light emission point similar to that of a traditional halogen bulb, helping to achieve a focused beam of light.

1 to 1 Design – No Additional Adapters Required

The compact design matches the dimensions of the standard HB4 light source, so no additional adapters or brackets are needed during installation. The bulbs fit directly into the factory HB4/9006 fitting without modifying the vehicle’s electrical system.

Before purchasing, please check the type of bulb used in the vehicle, the amount of available space in the lamp, and compatibility with the electrical system.

Main Features:
– Plug&Play installation
– 1 to 1 design
– Installation without additional adapters and brackets
– No need to modify the electrical system
– White light colour 6500K
– Set includes 2 bulbs

Technical Specification:
Bulb Type: HB4 / 9006
Operating Voltage: DC 9–18V
Power: 22W
Luminous Flux: 2700 lm
Colour Temperature: 6500K
Number of Diodes: 2 per bulb
Light Emission Angle: 360°
Ingress Protection Class: IP65
Heat Dissipation: Aluminium ADC12
Lifespan: >30,000 hours
Operating Temperature: from -40°C to +80°C
Number of Bulbs in Set: 2

Not compliant with ECE
For off-road use only. Use on public roads may result in fines, seizure of registration documents, or loss of insurance compensation in the event of an accident.
