EINParts – LED Bulbs H4 R-Series

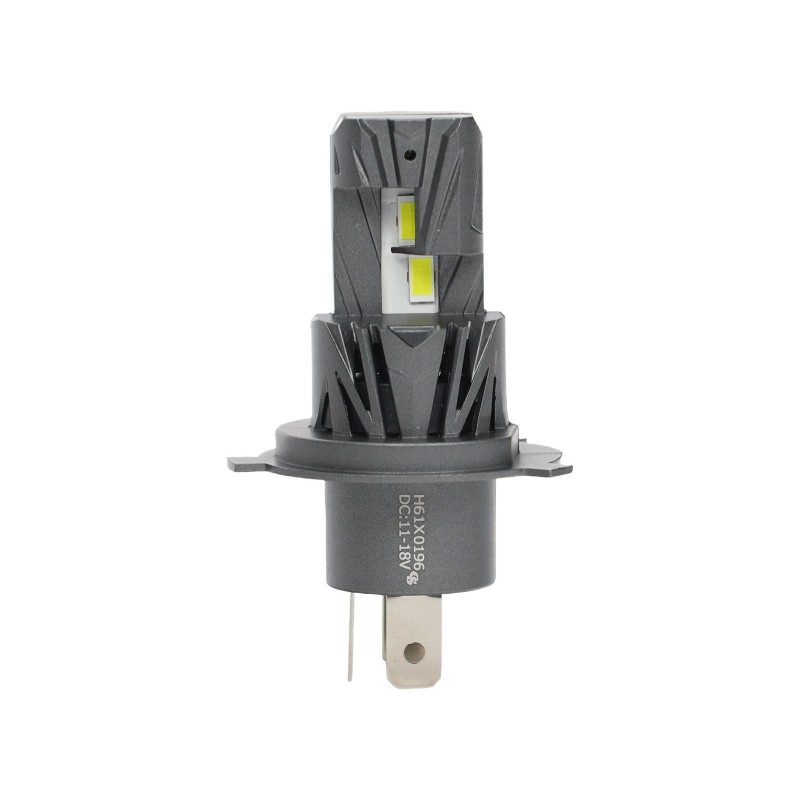

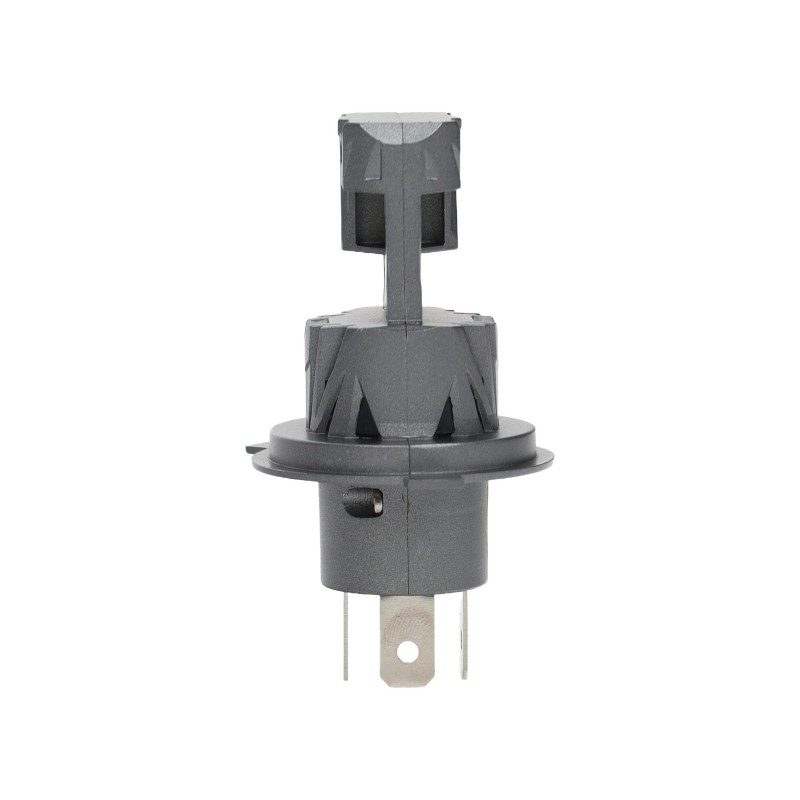

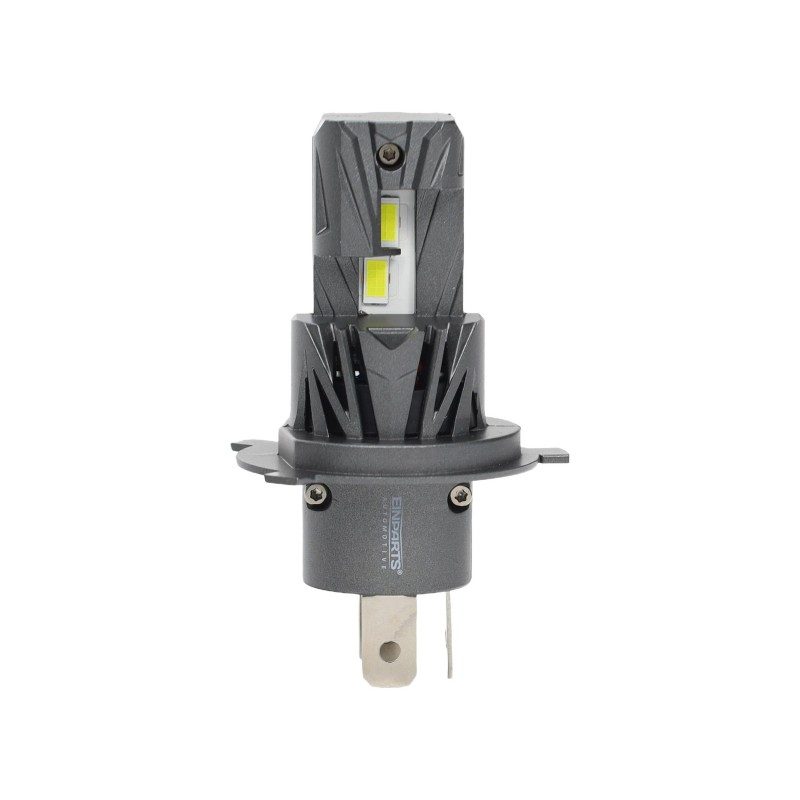

EPLH143 LED H4 ROAD SERIES Bulbs Plug&Play 4000 lm 6500K

LED H4 ROAD SERIES Bulbs have been designed as a modern replacement for traditional H4 halogen bulbs. They provide efficient, white LED light with a colour temperature of 6500K and are intended for headlights using standard H4 fittings.

The operating voltage range of DC 11–18V allows the bulbs to be used in vehicles with a 12V system. The appropriate arrangement of the four diodes maintains a light emission point similar to that of a traditional halogen bulb and supports the characteristic low beam and high beam lights of the H4 type.

1 to 1 Design – No Additional Adapters Required

The compact design matches the dimensions of a standard H4 light source, so no additional adapters or brackets are needed during installation. The bulbs are placed directly into the factory H4 fitting without modifying the vehicle’s electrical system.

Before purchasing, please check the type of bulb used in the vehicle, the amount of available space in the headlight, and compatibility with the electrical system.

Main Features:
– Plug&Play installation
– 1 to 1 design
– Supports low beam and high beam lights
– Installation without additional adapters and brackets
– No need to modify the electrical system
– White light colour 6500K

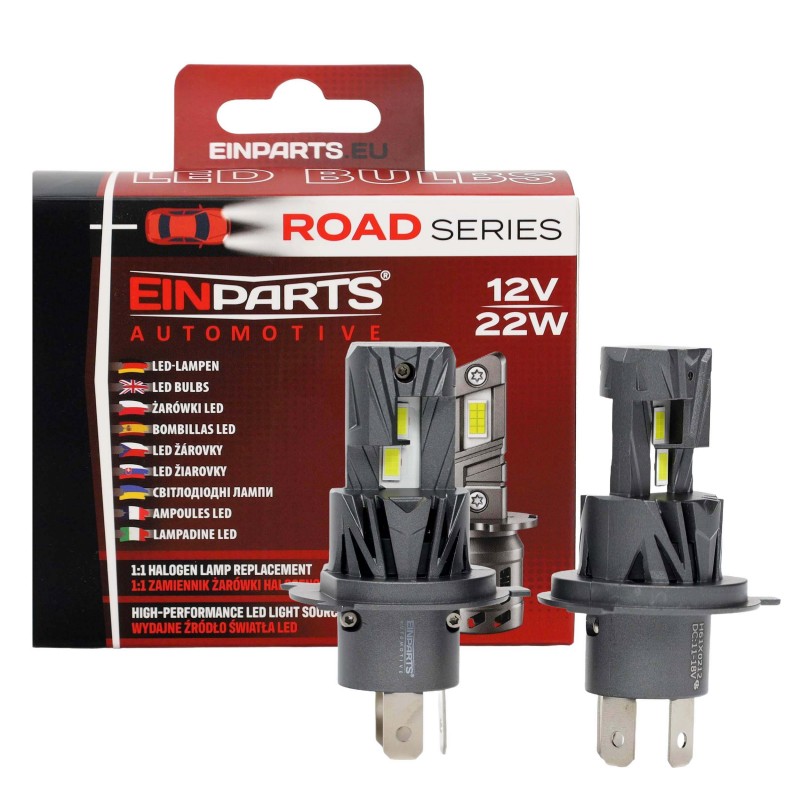

– Set includes 2 bulbs

Technical Specification:
Bulb Type: H4
Operating Voltage: DC 11–18V
Power: 22W
Luminous Flux: 4000 lm
Colour Temperature: 6500K
Number of Diodes: 4 per bulb
Light Emission Angle: 360°
Ingress Protection Class: IP65
Heat Dissipation: ADC12 Aluminium
Lifespan: >30,000 hours
Operating Temperature: from -40°C to +80°C
Number of Bulbs in Set: 2

Not compliant with ECE
For off-road use only. Use on public roads may result in fines, registration document confiscation, or loss of insurance compensation in the event of an accident.
